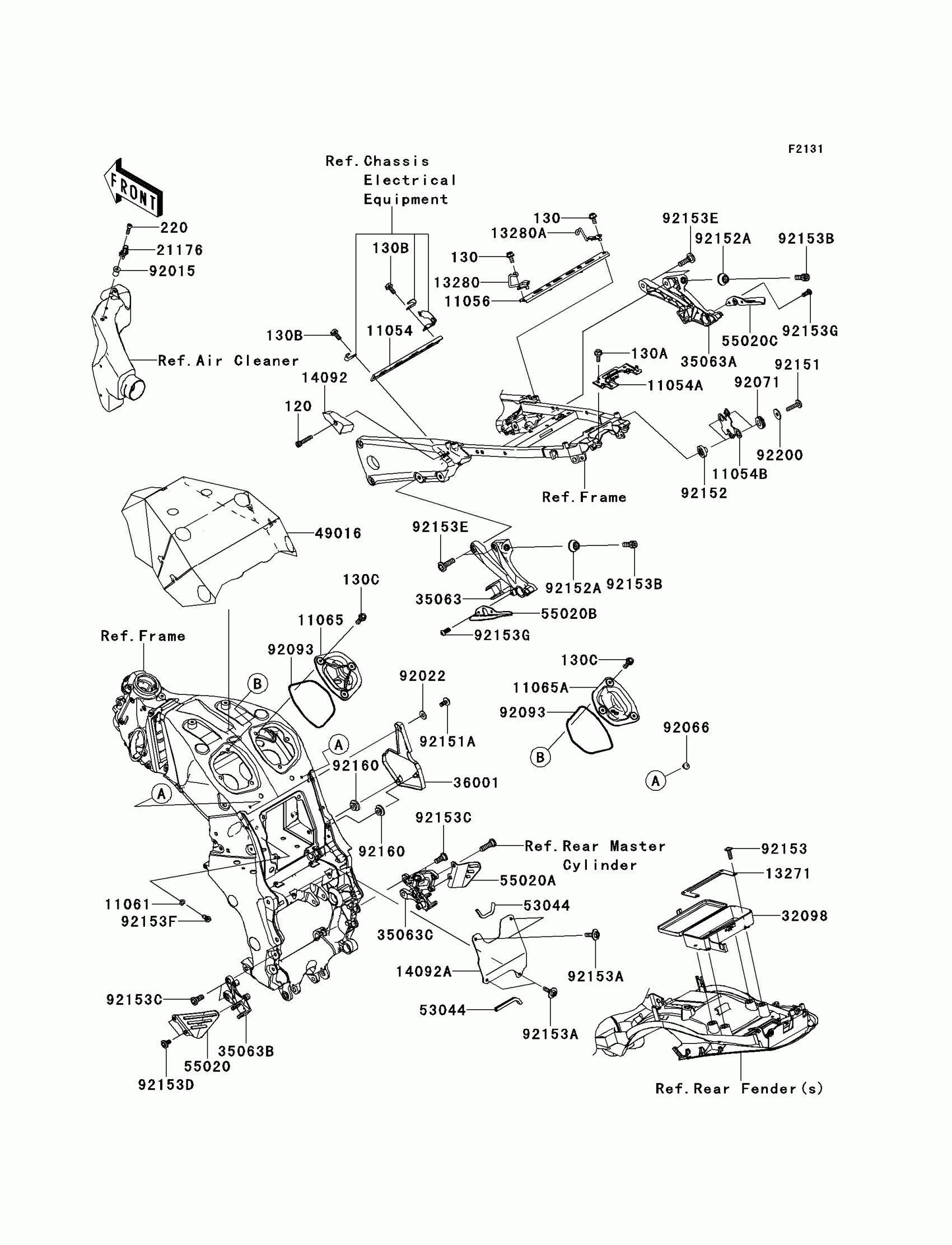

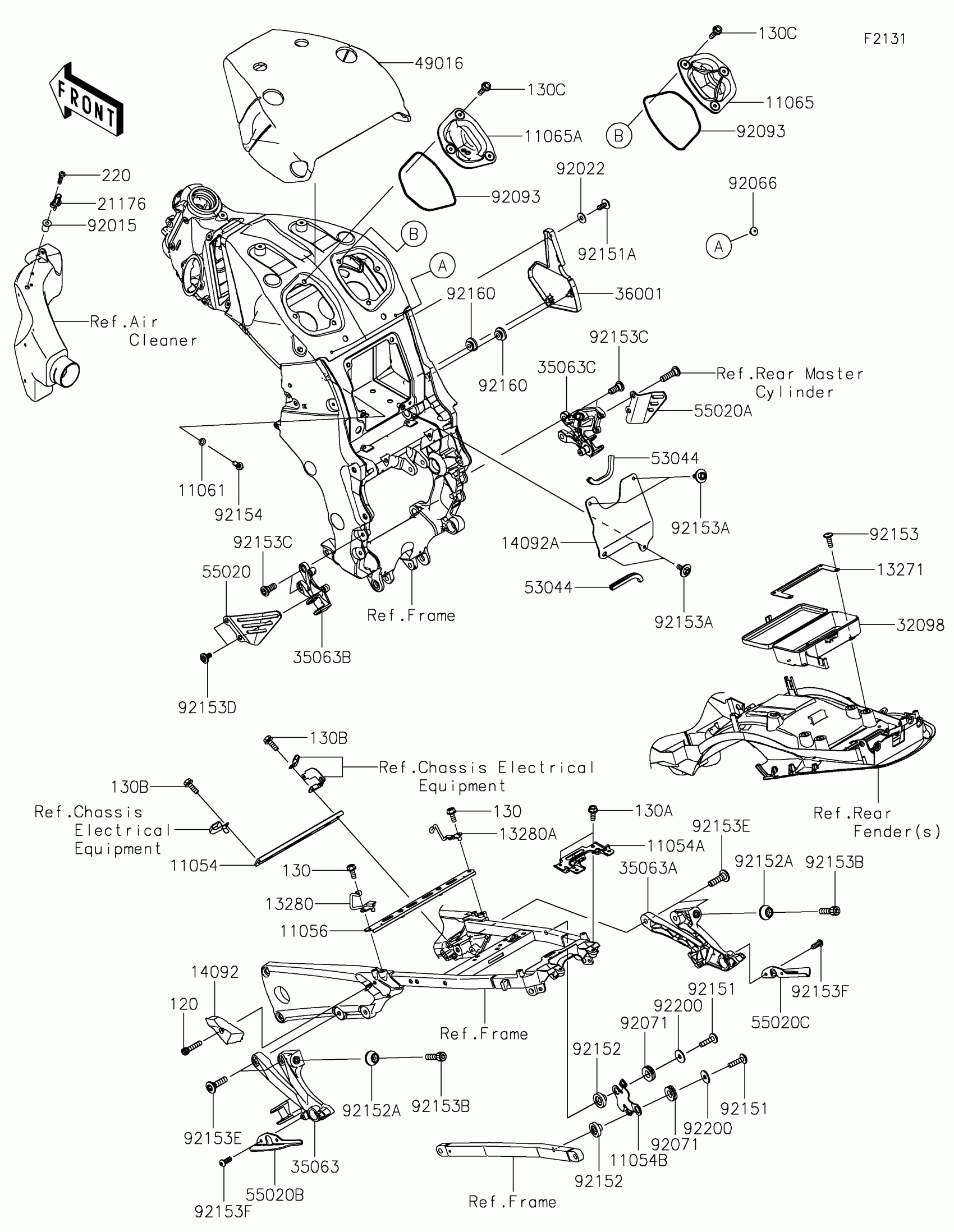

Kawasaki NINJA® ZX™-14R ABS Frame Fittings Diagram

#

Description
Price

11054

BRACKET,RR FENDER,FR

11054-0225

$23.93

11054A

BRACKET,REAR FENDER&TAIL COVER

11054-0694

$22.46

11054B

BRACKET,REGULATOR

11054-0718

$15.93

11056

BRACKET,FUEL TANK,RR

11056-2121

$48.14

11061

GASKET

11061-0107

$1.82

11065

CAP,AIR CLEANER,RH

11065-0223

$47.25

11065A

CAP,AIR CLEANER,LH

11065-0763

$47.70

13271

PLATE,TOOL CASE

13271-0779

$11.42

13280

HOLDER,HELMET,LH

13280-0753

$29.25

13280A

HOLDER,HELMET,RH

13280-0754

$29.25

14092

COVER,F.BLACK

14092-0903-6Z

$11.34

14092A

COVER,BATTERY

14092-0981

$41.83

21176

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

32098

CASE-TOOL

32098-0058

$28.70

35063

STAY,RR,LH,F.S.BLACK

35063-0782-18R

$160.77

35063A

STAY,RR,RH,F.S.BLACK

35063-0783-18R

$160.77

35063B

STAY,FR,LH,F.S.BLACK

35063-0853-18R

$77.40

35063C

STAY,FR,RH,F.S.BLACK

35063-0854-18R

$104.01

36001

COVER-SIDE,BATTERY,RH,BLACK

36001-0080-18T

$44.45

49016

COVER-SEAL,FRAME

49016-0578

$46.93

53044

TRIM,L=100

53044-1200

$7.36

55020

GUARD,FRONT STEP,LH

55020-0211

$75.97

55020A

GUARD,FRONT STEP,RH

55020-0212

$75.97

55020B

GUARD,RR STEP,LH

55020-0866

$42.35

55020C

GUARD,RR STEP,RH

55020-0867

$42.35

92015

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,6.5X16X1

92022-1143

$2.99

92066

PLUG

92066-1547

$3.19

92071

GROMMET

92071-1115

$4.14

92093

SEAL

92093-1507

$3.65

92151

BOLT,SOCKET,6X25

92151-1611

$1.68

92151A

BOLT,SOCKET,6X14

92151-1654

$1.24

92152

COLLAR

92152-0470

$4.14

92152A

COLLAR

92152-0668

$4.25

92153

BOLT,6X18

92153-0478

$1.81

92153A

BOLT,6X16

92153-1423

$1.04

92153B

BOLT,SOCKET,10X23

92153-1522

$7.61

92153C

BOLT,SOCKET,8X20

92153-1621

$1.57

92153D

BOLT,6MM

92153-1622

$2.34

92153E

BOLT,SOCKET,8X30

92153-1630

$1.85

120

BOLT-SOCKET,6X30

120CB0630

$2.39

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,6X16

130BA0616

$0.97

130B

BOLT-FLANGED,6X18

130BA0618

$1.17

130C

BOLT-FLANGED,6X22

130BA0622

$1.00

220

SCREW-PAN-CROS,5X18

220AB0518

$2.80

92153F

BOLT,FLANGED,6X14

92153-1676

$1.57

92153G

BOLT,SOCKET,6X16

92153-1785

$1.85

92160

DAMPER

92160-1613

$2.84

92200

WASHER,6.5X20X1.6

92200-0283

$1.08
