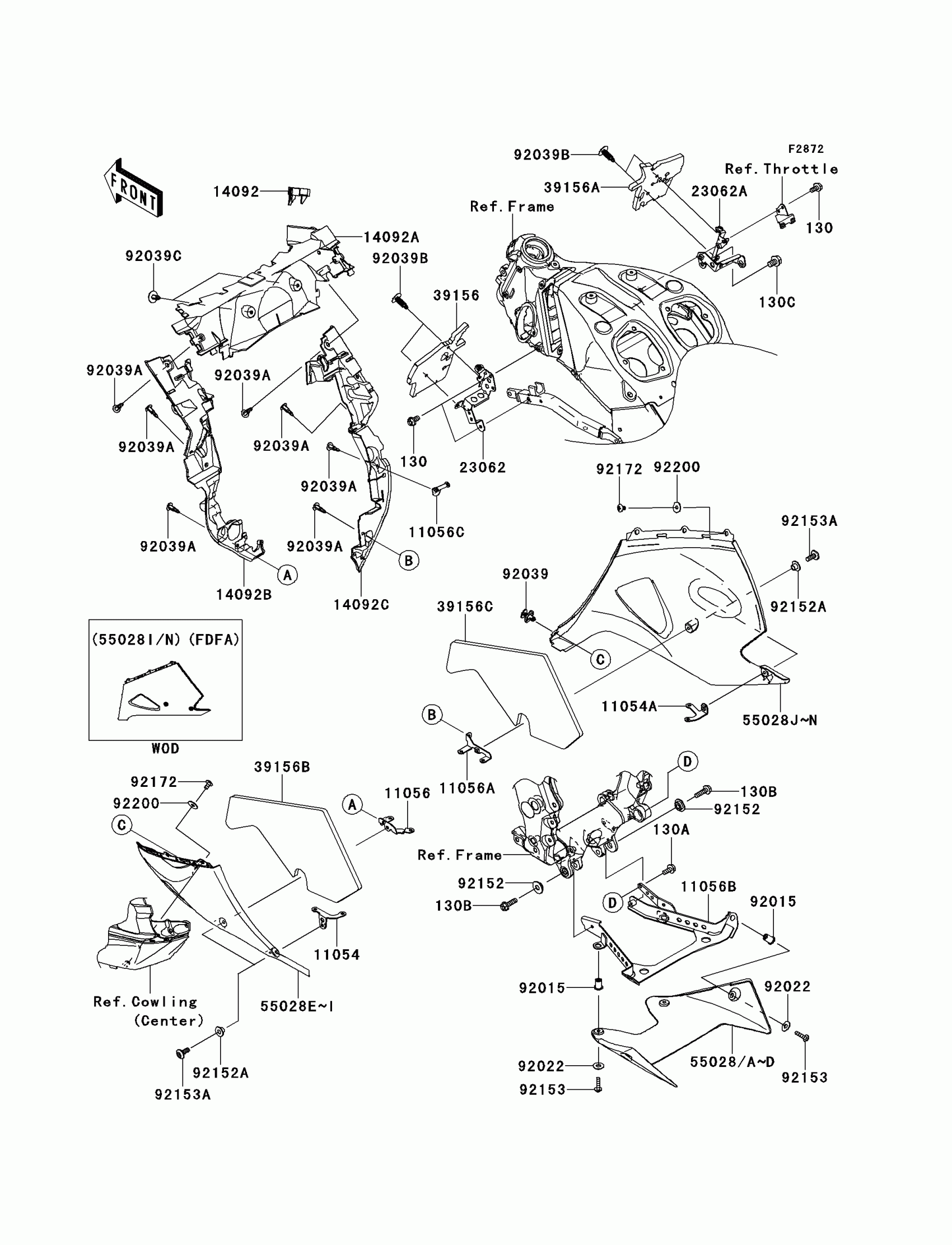

Kawasaki NINJA® ZX™-14R ABS Cowling Lowers Diagram

#

Description
Price

11054

BRACKET,LWR COWLING,RR,LH

11054-0562

$12.95

11054A

BRACKET,LWR COWLING,RR,RH

11054-0563

$12.95

11056

BRACKET,LWR COWLING,FR,LH

11056-1097

$11.27

11056A

BRACKET,LWR COWLING,FR,RH

11056-1098

$10.22

11056B

BRACKET,LWR COWLING

11056-1336

$150.88

11056C

BRACKET,HEAT GUARD,RH

11056-1370

$5.25

14092

COVER,RADIATOR CAP

14092-0136

Unavailable

14092A

COVER,HEAT GUARD,FR

14092-0830

$80.06

14092B

COVER,HEAT GUARD,LH

14092-0994

$65.11

14092C

COVER,HEAT GUARD,RH

14092-0995

Unavailable

23062

BRACKET-COMP,LH

23062-0716

$32.67

23062A

BRACKET-COMP,RH

23062-0717

$42.21

39156

PAD,TANK SIDE,LH

39156-0739

$17.36

39156A

PAD,TANK SIDE,RH

39156-0779

$17.36

39156B

PAD,LWR COWLING,LH

39156-0788

$22.63

39156C

PAD,LWR COWLING,RH

39156-0789

$22.63

55028

COWLING,LWR,RR,C.B.ORANGE

55028-0063-17L

$219.59

55028B

COWLING,LWR,RR,G.B.GREEN

55028-0063-40R

$221.96

55028C

COWLING,LWR,RR,F.EBONY

55028-0063-45L

$220.08

55028E

COWLING,LWR,LH,C.B.ORANGE

55028-0473-17L

$215.63

55028G

COWLING,LWR,LH,G.B.GREEN

55028-0473-40R

$215.35

55028H

COWLING,LWR,LH,F.EBONY

55028-0473-45L

$205.74

55028J

COWLING,LWR,RH,C.B.ORANGE

55028-0474-17L

$215.87

55028L

COWLING,LWR,RH,G.B.GREEN

55028-0474-40R

$215.59

55028M

COWLING,LWR,RH,F.EBONY

55028-0474-45L

$205.98

92015

NUT

92015-1700

$6.55

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,6X14

130BA0614

$0.97

130B

BOLT-FLANGED,6X22

130BA0622

$1.00

130C

BOLT-FLANGED,8X12

130BA0812

$0.79

92022

WASHER,6.5X16X1

92022-1143

$2.99

92039

RIVET,HOLE 8MM

92039-0014

$2.28

92039A

RIVET

92039-0051

$3.54

92039B

RIVET

92039-0090

$2.69

92039C

RIVET

92039-1289

$1.98

92152

COLLAR

92152-0378

$7.61

92152A

COLLAR

92152-0620

$3.57

92153

BOLT,SOCKET,6X23

92153-1267

$1.98

92153A

BOLT,SOCKET,6X16

92153-1526

$1.32

92172

SCREW,TAPPING,5X10

92172-0262

$1.04

92200

WASHER

92200-0288

$1.20
