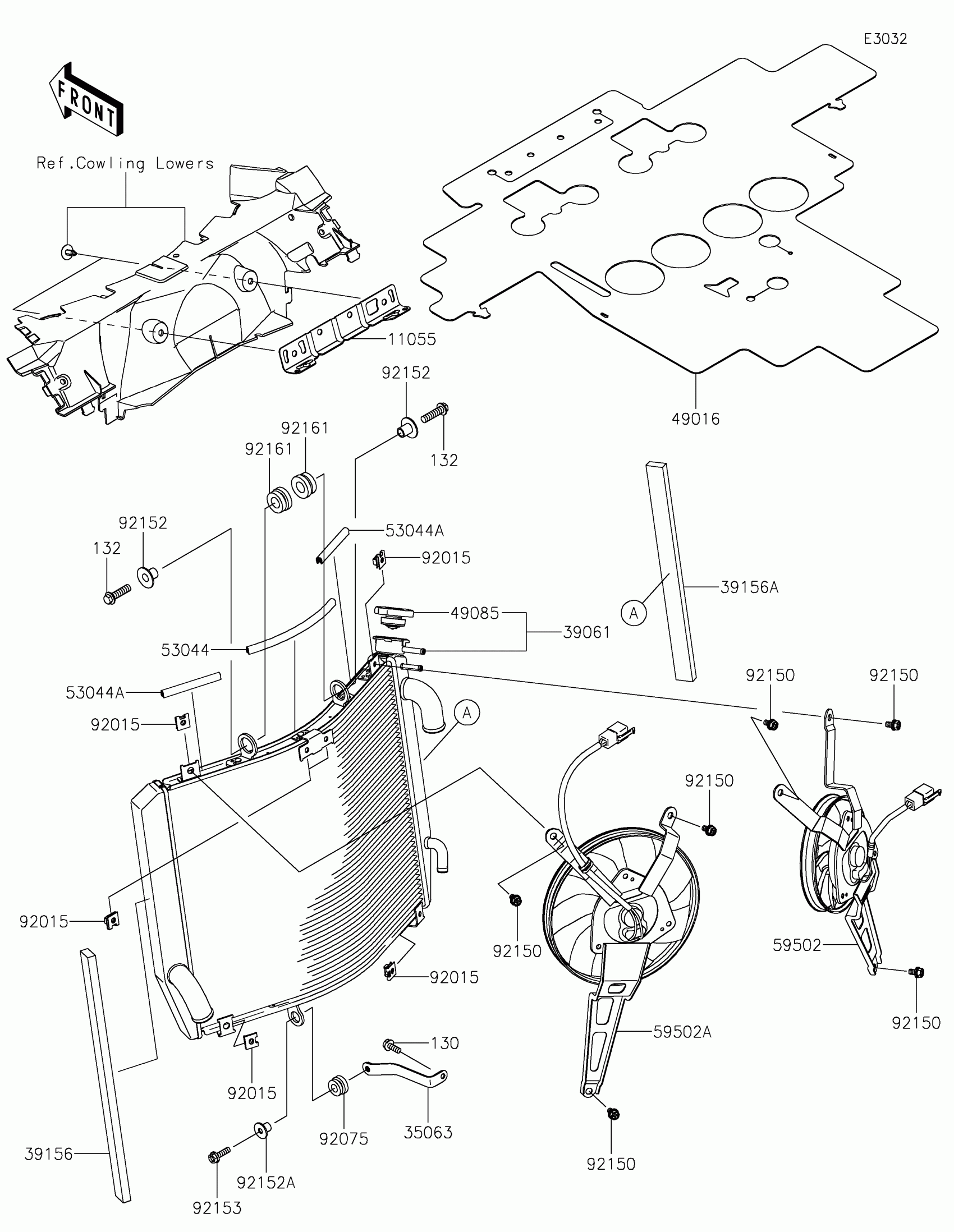

Kawasaki Ninja ZX-14R ABS SE Radiator Diagram

Description

Price

11055

BRACKET

11055-1484

$25.68

35063

STAY

35063-0661

$11.42

39061

RADIATOR-ASSY

39061-0107

$1,147.10

39156

PAD,RAD. LH

39156-0873

$5.19

39156A

PAD,RAD. RH

39156-0874

$5.41

49016

COVER-SEAL

49016-0589

$112.14

49085

CAP-ASSY-PRESSURE

49085-1066

$33.19

53044

TRIM

53044-0016

$11.42

53044A

TRIM

53044-0018

$4.14

59502

FAN-ASSY,RH

59502-0572

$474.60

59502A

FAN-ASSY,LH

59502-0579

$526.68

92015

NUT

92015-1487

$3.64

92075

DAMPER,RUBBER

92075-1123

$3.81

92150

BOLT,6X12

92150-1186

$2.56

92152

COLLAR

92152-0439

$2.98

92152A

COLLAR

92152-0440

$4.95

92153

BOLT,FLANGED,6X22

92153-1598

$1.81

92161

DAMPER

92161-0304

$2.09

130

BOLT-FLANGED,6X16

130CC0616

$1.43

132

BOLT-FLANGED-SMALL,8X30

132BC0830

$2.98
