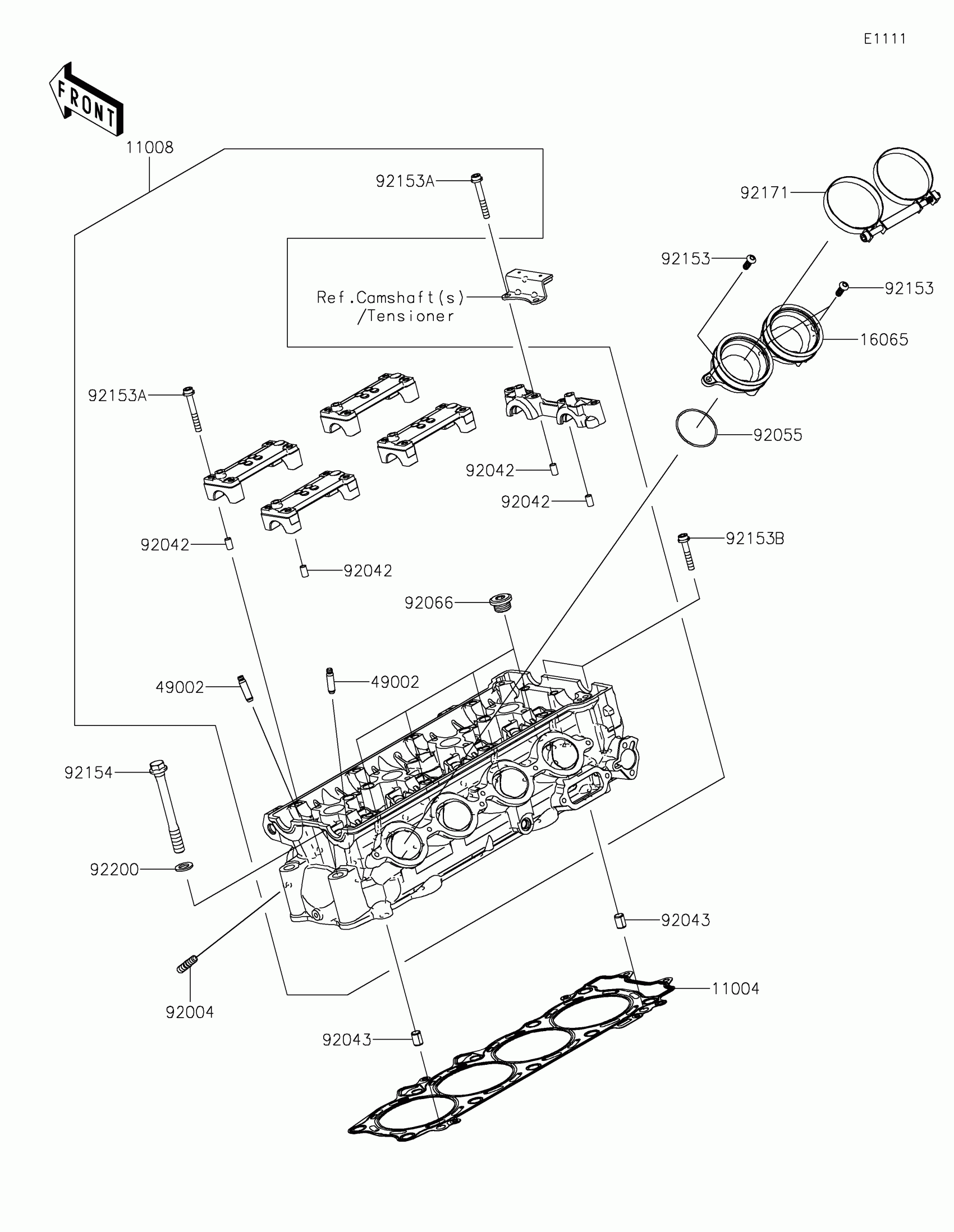

Kawasaki Ninja ZX-14R ABS SE Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0757

$127.22

11008

HEAD-COMP-CYLINDER

11008-0889

$2,940.59

16065

HOLDER-CARBURETOR

16065-0117

$60.67

49002

GUIDE-VALVE

49002-0014

$37.37

92004

STUD

92004-0050

$3.19

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,8.2X10X14

92043-1264

$0.51

92055

RING-O,47X1.9

92055-1600

$7.00

92066

PLUG,18X10

92066-0832

$12.31

92153

BOLT,TORX,6X18

92153-0454

$1.54

92153A

BOLT,SOCKET,6X45

92153-0656

$1.81

92153B

BOLT,SOCKET,6X35

92153-1556

$2.98

92154

BOLT,11X98

92154-2092

$13.02

92171

CLAMP

92171-1892

$30.73

92200

WASHER,11.2X18.2X1.8

92200-0940

$2.27
