2007 Kawasaki Ninja® ZX™-14 Water Pipe Diagram

← All diagrams

Find the part on the Water Pipe diagram for your 2007 Kawasaki Ninja® ZX™-14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

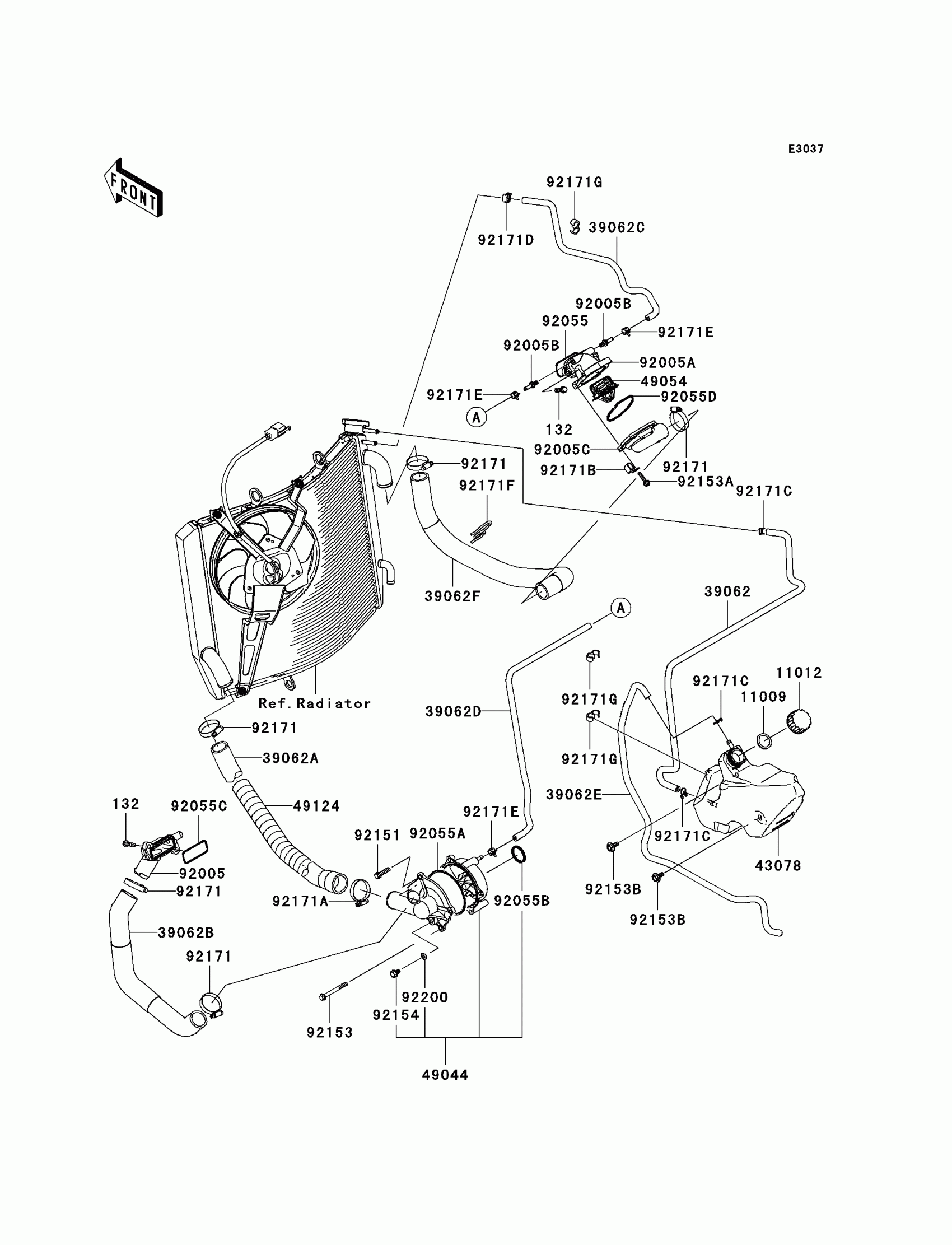

2007 Kawasaki Ninja® ZX™-14 Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11012

CAP

11012-1084

1
Out of stock

39062

HOSE-COOLING,L=797

39062-0047

1
Out of stock

39062A

HOSE-COOLING,RAD-W/P

39062-0113

1
Out of stock

39062B

HOSE-COOLING,W/P-CYL.HEAD

39062-0114

1
Out of stock

39062C

HOSE-COOLING,AIR VENT

39062-0116

1
Out of stock

39062D

HOSE-COOLING,L=514.9

39062-0123

1
Out of stock

39062E

HOSE-COOLING,L=597

39062-0151

1
Out of stock

39062F

HOSE-COOLING,CYL.HEAD-RAD

39062-0168

1
Out of stock

43078

RESERVOIR

43078-0028

1
Out of stock

49044

PUMP-WATER

49044-0004

1
Out of stock

49054

THERMOSTAT

49054-1067

1
Out of stock

49124

SPRING-TUBE GUARD

49124-0001

1
Out of stock

92005

FITTING,CYLINDER

92005-0045

1
Out of stock

92005A

FITTING,THERMO CASE

92005-0047

1
Out of stock

92005B

FITTING

92005-0056

1
Out of stock

92005C

FITTING,THERMO CAP

92005-1275

1
Out of stock

92055

RING-O,YP 27.6 57.6 1.9

92055-0021

1
Out of stock

92055A

RING-O

92055-0157

1
Out of stock

92055B

RING-O

92055-0158

1
Out of stock

92055C

RING-O

92055-1402

1
Out of stock

92055D

RING-O,THERMOSTAT CAP

92055-1699

1
Out of stock

92153

BOLT,FLANGED-SMALL,6X25

92153-1585

1
Out of stock

92153A

BOLT,FLANGED-SMALL,6X55

92153-1586

1
Out of stock

92153B

BOLT,UPSET-WP,6X16

92153-1587

1
Out of stock

92153C

BOLT,FLANGED,5X18

92153-1588

1
Out of stock

92153D

BOLT,FLANGED-SMALL,6X20

92153-1589

1
Out of stock

92154

BOLT,DRAIN

92154-0184

1
Out of stock

92171

CLAMP

92171-0179

1
Out of stock

92171A

CLAMP

92171-0534

1
Out of stock

92171B

CLAMP

92171-0718

1
Out of stock

92171C

CLAMP

92171-0719

1
Out of stock

92171D

CLAMP

92171-0720

1
Out of stock

92171E

CLAMP

92171-0786

1
Out of stock

92171F

CLAMP

92171-1184

1
Out of stock

92200

WASHER,DRAIN

92200-0498

1
Out of stock
