2007 Kawasaki Ninja® ZX™-14 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2007 Kawasaki Ninja® ZX™-14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

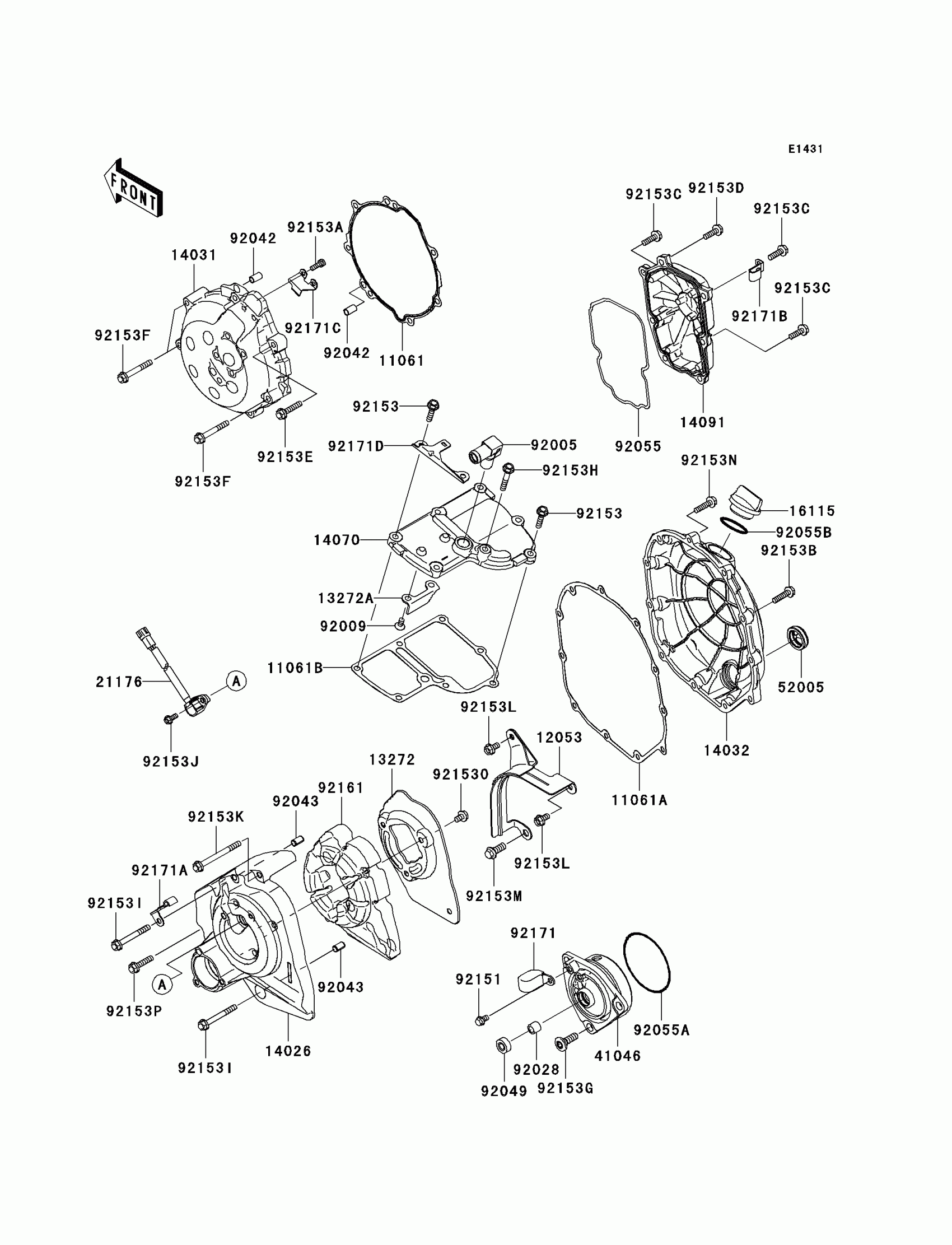

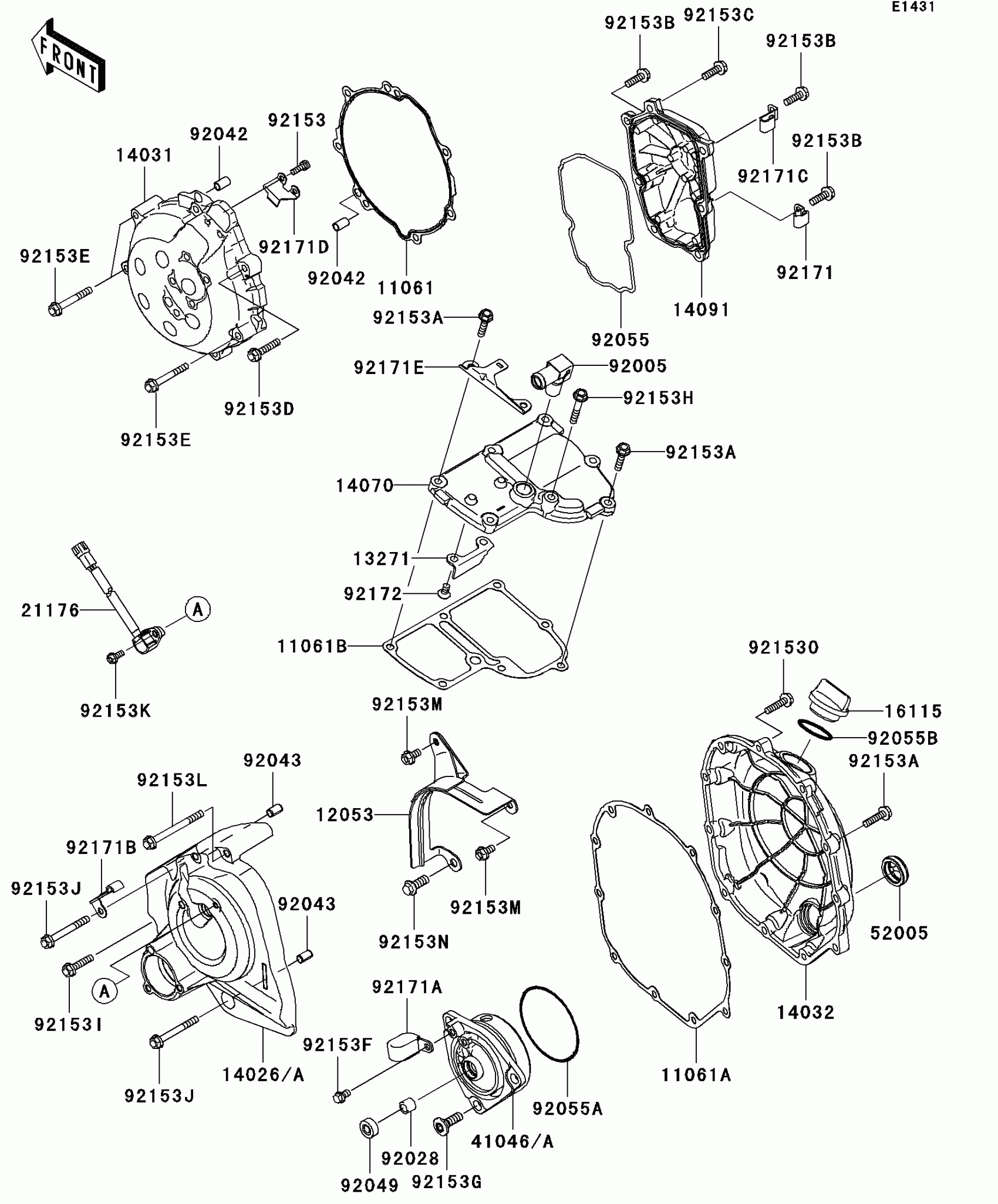

2007 Kawasaki Ninja® ZX™-14 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,GENERATOR COVER

11061-0197

1
Out of stock

11061A

GASKET,CLUTCH COVER

11061-0198

1
Out of stock

11061B

GASKET,BREATHER BODY

11061-0200

1
Out of stock

12053

GUIDE-CHAIN

12053-0097

1
Out of stock

13271

PLATE

13271-0768

1

$12.03

In stock

14026A

COVER-CHAIN,F.S.BLACK

14026-0046-11E

1
Out of stock

14031

COVER-GENERATOR,F.S.BLACK

14031-0071-11E

1

$318.88

In stock

14032

COVER-CLUTCH,F.S.BLACK

14032-0089-11E

1

$276.50

In stock

14070

BODY-BREATHER

14070-0003

1

$111.38

In stock

14091

COVER,PULSER,F.S.BLACK

14091-0627-11E

1
Out of stock

16115

CAP-OIL FILLER

16115-1009

1
Out of stock

21176

SENSOR,SPEED

21176-0049

1
Out of stock

41046A

HOUSING-BEARING

41046-0018

1
Out of stock

52005

GAUGE

52005-0024

1
Out of stock

92005

FITTING

92005-0044

1
Out of stock

92028

BUSHING,8X12X10

92028-1750

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92049

SEAL-OIL

92049-1566

1
Out of stock

92055

RING-O,PULSER COVER

92055-0086

1
Out of stock

92055A

RING-O,75X2.5

92055-0087

1
Out of stock

92055B

RING-O,31.5X2.6

92055-049

1
Out of stock

92153

BOLT,SOCKET,5X14

92153-1286

1
Out of stock

92153A

BOLT,FLANGED,6X25

92153-1569

1
Out of stock

92153B

BOLT,FLANGED,6X20

92153-1572

1
Out of stock

92153C

BOLT,FLANGED,6X20

92153-1573

1
Out of stock

92153D

BOLT,FLANGED,6X30

92153-1574

1
Out of stock

92153E

BOLT,FLANGED,6X45

92153-1575

1
Out of stock

92153F

BOLT-FLANGED-SMALL,6X10

92153-1577

1
Out of stock

92153G

BOLT,SOCKET,8X25

92153-1578

1
Out of stock

92153H

BOLT,FLANGED,6X35

92153-1579

1
Out of stock

92153I

BOLT,FLANGED,6X28

92153-1580

1
Out of stock

92153J

BOLT,FLANGED,6X52

92153-1581

1
Out of stock

92153K

BOLT,FLANGED,5X12

92153-1582

1
Out of stock

92153L

BOLT,FLANGED,6X68

92153-1583

1
Out of stock

92153M

BOLT,FLANGED,6X12

92153-1596

1
Out of stock

92153N

BOLT,FLANGED-SMALL,8X20

92153-1682

1
Out of stock

92153O

BOLT,FLANGED,6X25

92153-1719

1
Out of stock

92171

CLAMP

92171-0534

1

$5.56

In stock

92171A

CLAMP

92171-0594

1

$7.56

In stock

92171B

CLAMP

92171-0688

1
Out of stock

92171C

CLAMP

92171-0761

1
Out of stock

92171D

CLAMP

92171-0768

1
Out of stock

92171E

CLAMP

92171-0769

1
Out of stock

92172

SCREW-CSK-CROS,6X12

92172-0263

1
Out of stock
