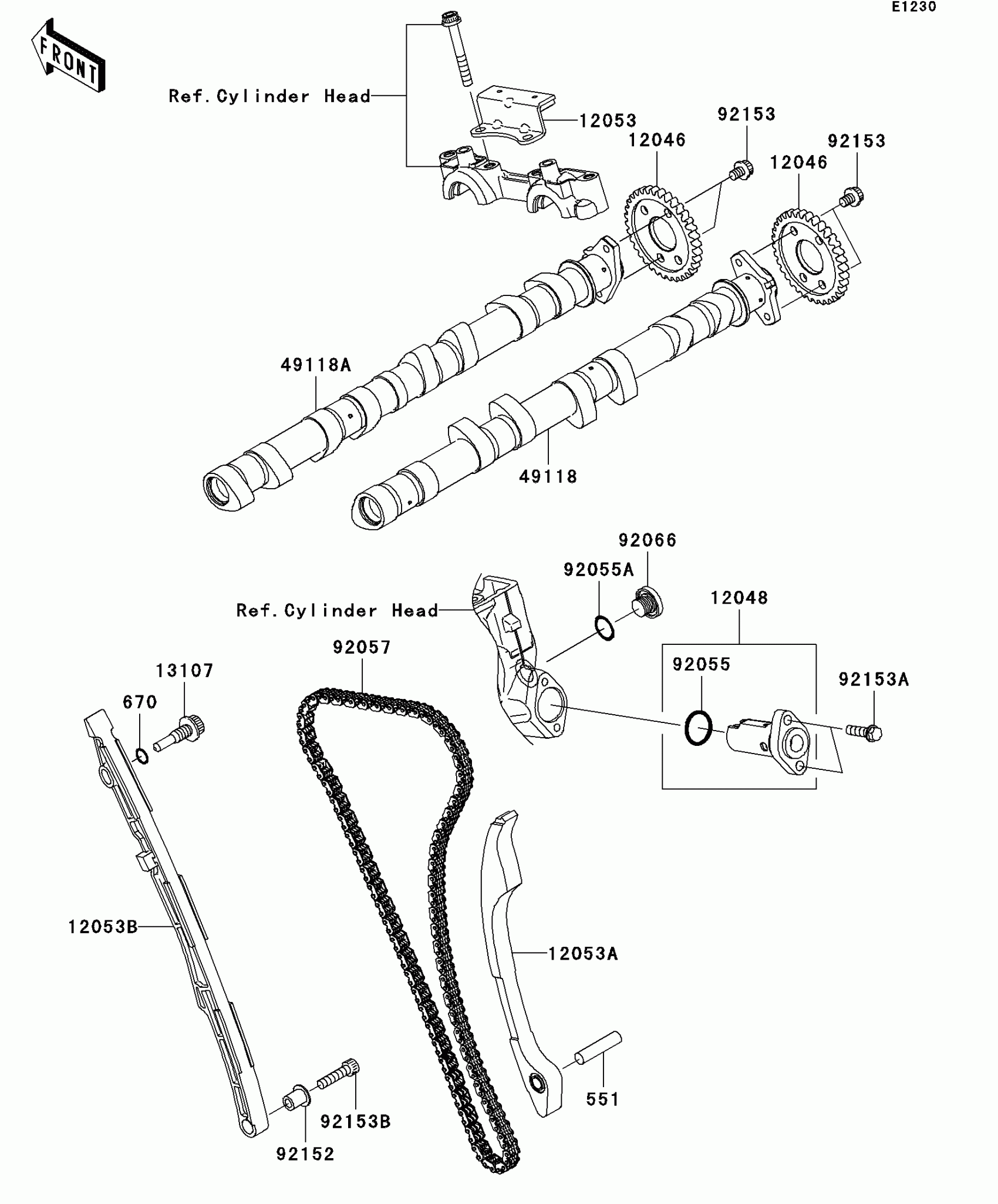

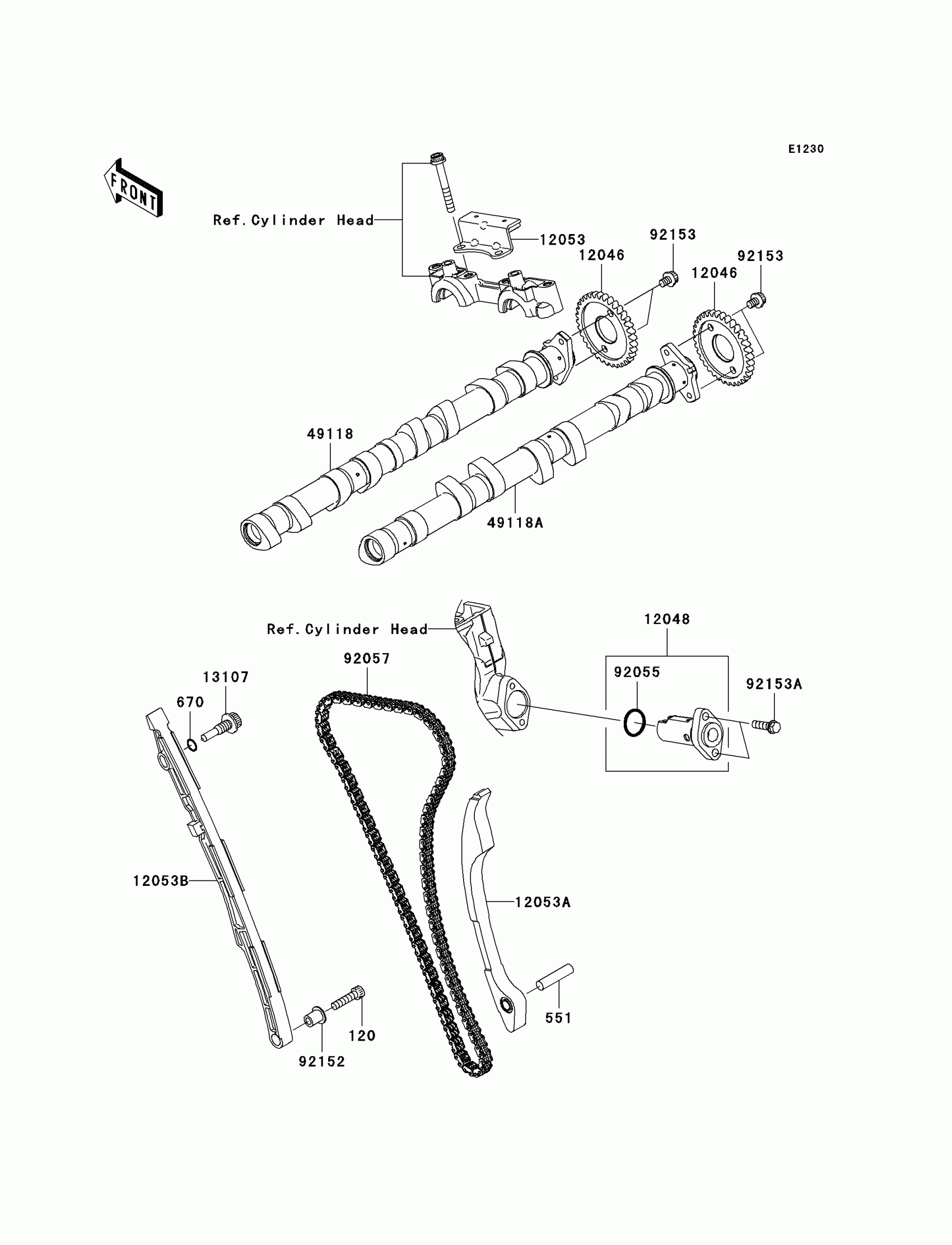

Kawasaki Ninja® ZX™-14 Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,34T

12046-0057

$99.20

12048

TENSIONER-ASSY

12048-0034

Unavailable

12053

GUIDE-CHAIN,UPP

12053-0067

$18.69

12053A

GUIDE-CHAIN,RR

12053-0093

$81.73

12053B

GUIDE-CHAIN,FR

12053-0095

Unavailable

13107

SHAFT

13107-0129

Unavailable

49118

CAMSHAFT-COMP,INTAKE

49118-0070

Unavailable

49118A

CAMSHAFT-COMP,EXHAUST

49118-0071

$762.63

551

PIN-DOWEL

551A0835

$4.17

670

O RING,9MM

670D1509

$3.57

92055

RING-O,18.8X1.9

92055-086

$3.29

92055A

RING-O,ID=13.8

92055-1141

$2.99

92057

CHAIN,92RH2015-130M

92057-0109

$104.06

92066

PLUG,TIMING HOLE

92066-0067

$10.24

92152

COLLAR

92152-0413

$8.46

92153

BOLT,FLANGED,6X8

92153-0455

$1.81

92153A

BOLT,FLANGED-SMALL,6X22

92153-1560

$1.81

92153B

BOLT,SOCKET,6X25

92153-1561

$2.10
