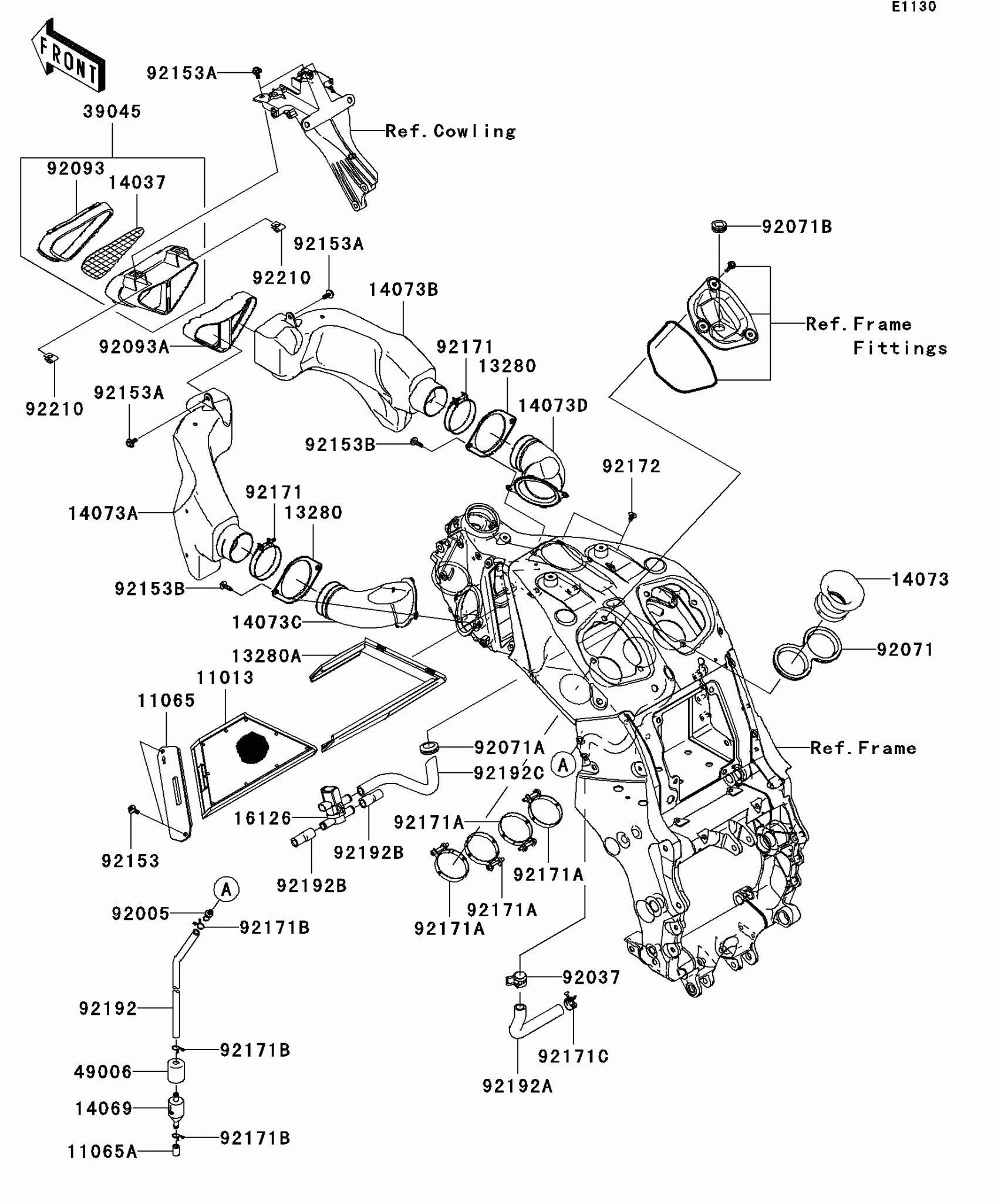

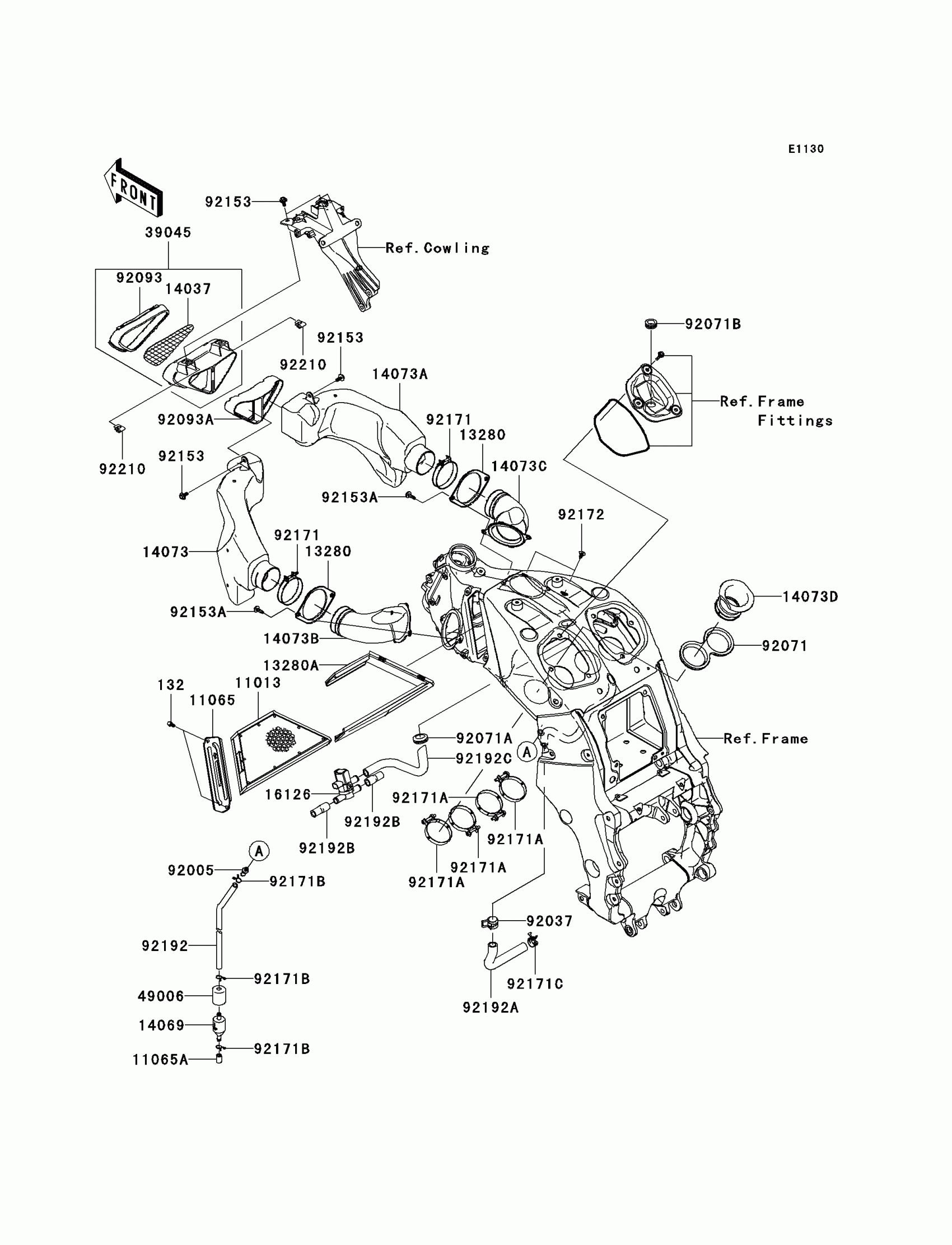

Kawasaki Ninja® ZX™-14 Air Cleaner Diagram

#

Description
Price

11013

ELEMENT-AIR FILTER

11013-0014

$53.39

11065

CAP,ELEMENT

11065-0141

$42.71

11065A

CAP,BREATHER

11065-1088

$2.14

13280

HOLDER

13280-0154

$11.32

13280A

HOLDER,ELEMENT

13280-0165

$128.63

14037

SCREEN

14037-0044

$47.69

14069

BREATHER

14069-1051

$7.76

14073

DUCT,FUNNEL

14073-0097

$44.61

14073A

DUCT,RAM AIR,LH

14073-0099

$125.01

14073B

DUCT,RAM AIR,RH

14073-0100

$125.01

14073C

DUCT,RAM-FRAME,LH

14073-0101

$51.75

14073D

DUCT,RAM-FRAME,RH

14073-0102

$51.75

16126

VALVE,AIR SWITCHING

16126-1437

$165.68

39045

DUCT-ASSY,RAM AIR,FR

39045-0016

$149.11

49006

BOOT,BREATHER

49006-1267

$8.51

92005

FITTING

92005-0055

$23.73

92037

CLAMP,HOSE CLIP

92037-1460

$8.23

92071

GROMMET

92071-0023

$11.43

92071A

GROMMET,AIR FILTER

92071-1042

$5.55

92071B

GROMMET

92071-2140

$3.28

92093

SEAL

92093-0052

$35.17

92093A

SEAL,RAM,DUCT

92093-0053

$35.17

92153

BOLT,SOCKET,6X16

92153-1526

$1.32

92153A

BOLT,UPSET-WP,6X16

92153-1587

$1.53

92153B

BOLT,SOCKET,6X20

92153-1762

$2.15

92171

CLAMP,65MM

92171-0543

$12.56

92171A

CLAMP

92171-0677

$11.75

92171B

CLAMP

92171-0721

$2.42

92171C

CLAMP

92171-0771

$7.93

92172

SCREW,6X16

92172-0284

$0.90

92192

TUBE,7X12X390

92192-0258

$8.31

92192A

TUBE,BREATHER

92192-0365

Unavailable

92192B

TUBE,REED VALVE-ASV

92192-0376

$4.92

92192C

TUBE,ASV-FRAME

92192-0383

$14.86

92210

NUT

92210-0318

$7.27
