2000 Kawasaki Ninja® ZX™-12R Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2000 Kawasaki Ninja® ZX™-12R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

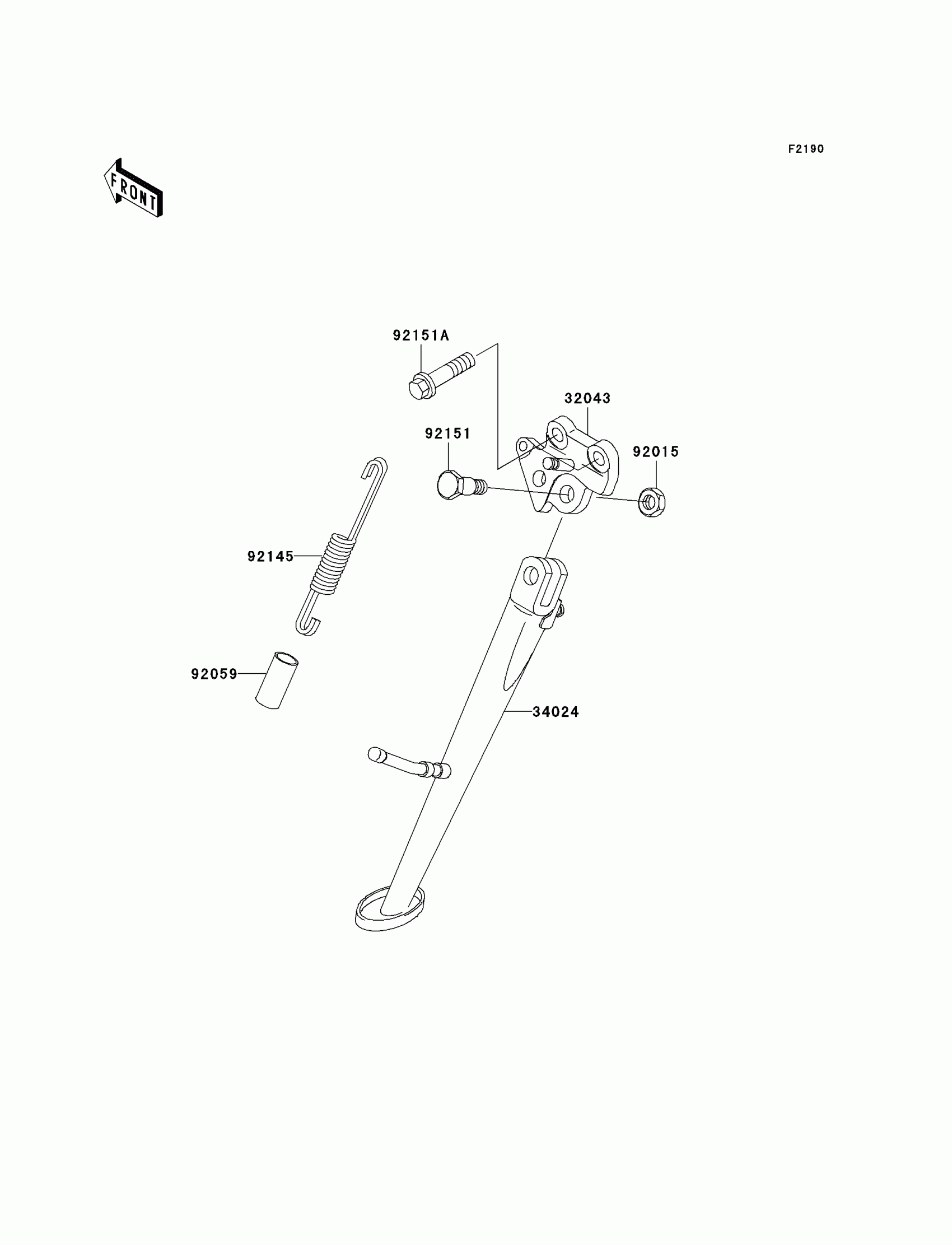

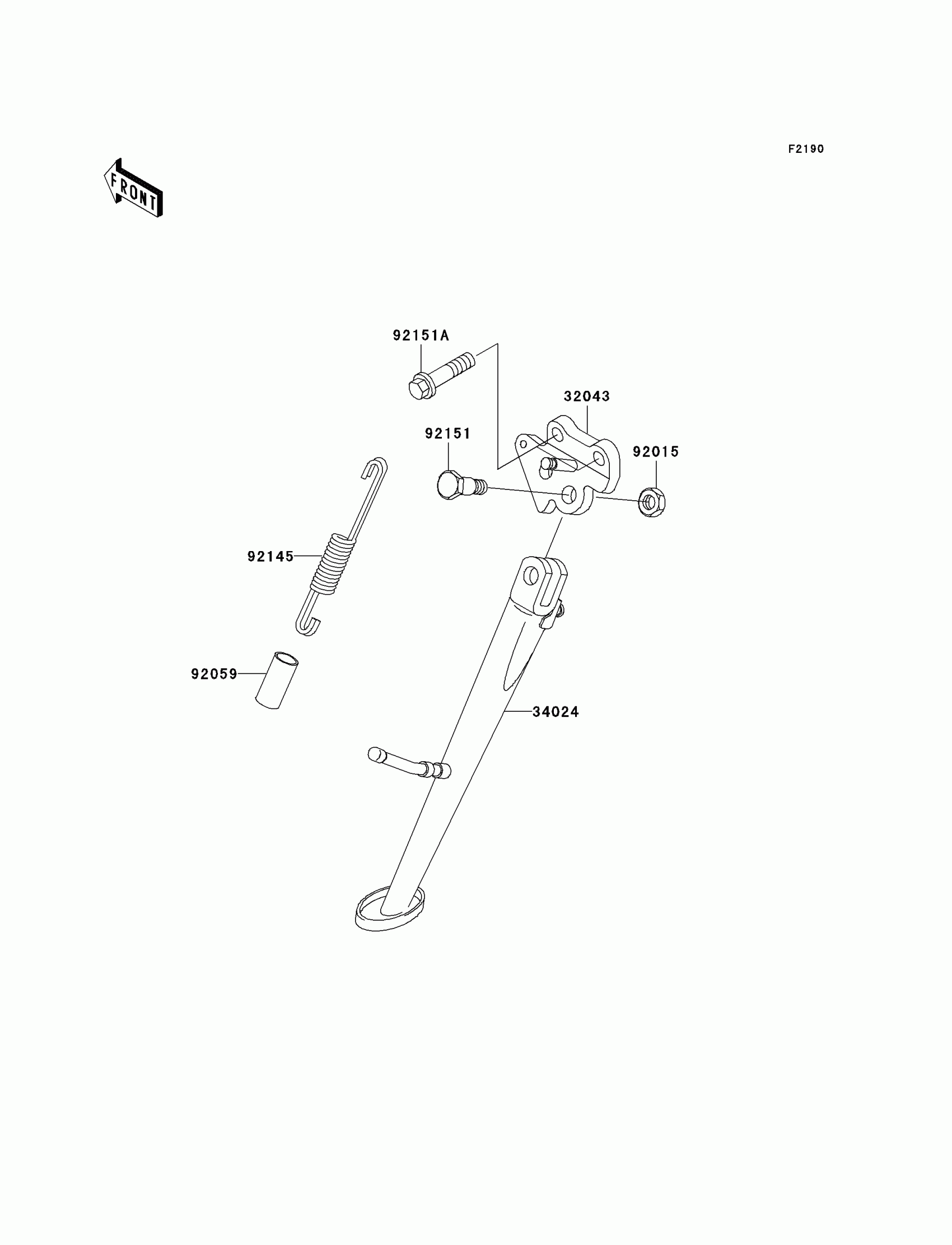

2000 Kawasaki Ninja® ZX™-12R Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32043

BRACKET-STAND,SIDE,F.S.BLACK

32043-1450-8F

1
Out of stock

34024

STAND-SIDE,F.S.BLACK

34024-1373-8F

1
Out of stock

92015

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92059

TUBE,14X17X50

92059-1961

1
Out of stock

92145

SPRING,SIDE STAND

92145-1317

1
Out of stock

92151

BOLT,SIDE STAND

92151-1531

1
Out of stock

92151A

BOLT,FLANGED,10X25

92151-1802

1
Out of stock
