2000 Kawasaki Ninja® ZX™-12R Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2000 Kawasaki Ninja® ZX™-12R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

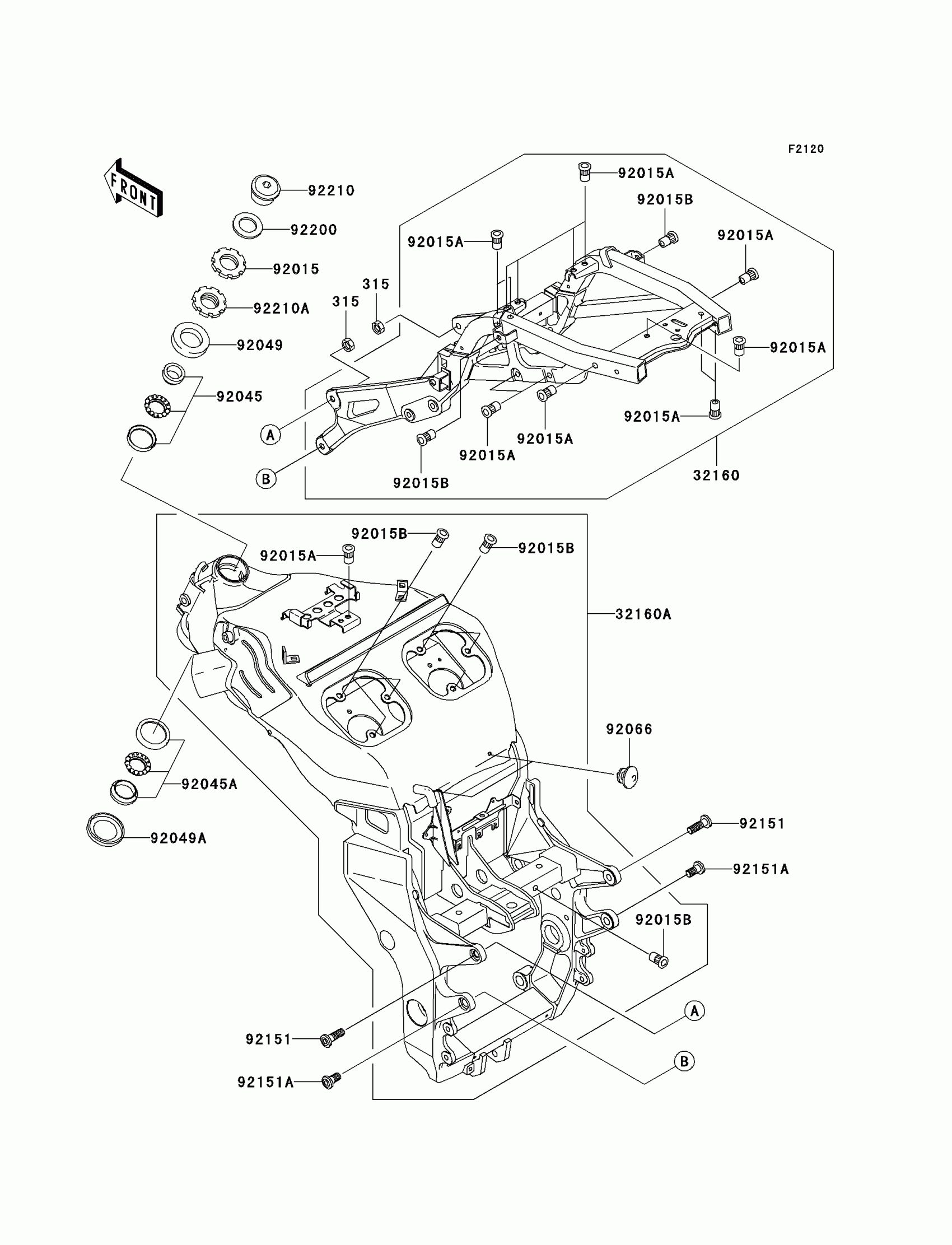

2000 Kawasaki Ninja® ZX™-12R Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

315

NUT-HEX-FINE,10MM

315G1000

1
Out of stock

32160

1

$987.50

In stock

32160A

FRAME-COMP,AL,FR,F.S.BLACK

32160-1609-8F

1
Out of stock

92015

NUT,25MM,T=6

92015-1129

1
Out of stock

92015A

NUT,POP,6MM,L=15

92015-1791

1

$3.72

In stock

92015B

NUT,POP,6MM,L=16.5

92015-1792

1

$3.72

In stock

92045

1

$43.81

In stock

92045A

1

$41.48

In stock

92049

SEAL-OIL,STEERING STEM

92049-1214

1
Out of stock

92049A

SEAL-OIL,XMHE 43 55 4J

92049-1383

1
Out of stock

92066

PLUG

92066-1547

1

$3.19

In stock

92151

BOLT,SOCKET,10X30

92151-1372

1

$6.06

In stock

92151A

BOLT,SOCKET,10X20

92151-1557

1

$2.29

In stock

92200

WASHER,22.5X33X2.3

92200-1482

1
Out of stock

92210

NUT,TOP,M22X1.0

92210-1194

1
Out of stock

92210A

NUT,STEERING STEM,25MM

92210-1195

1
Out of stock
