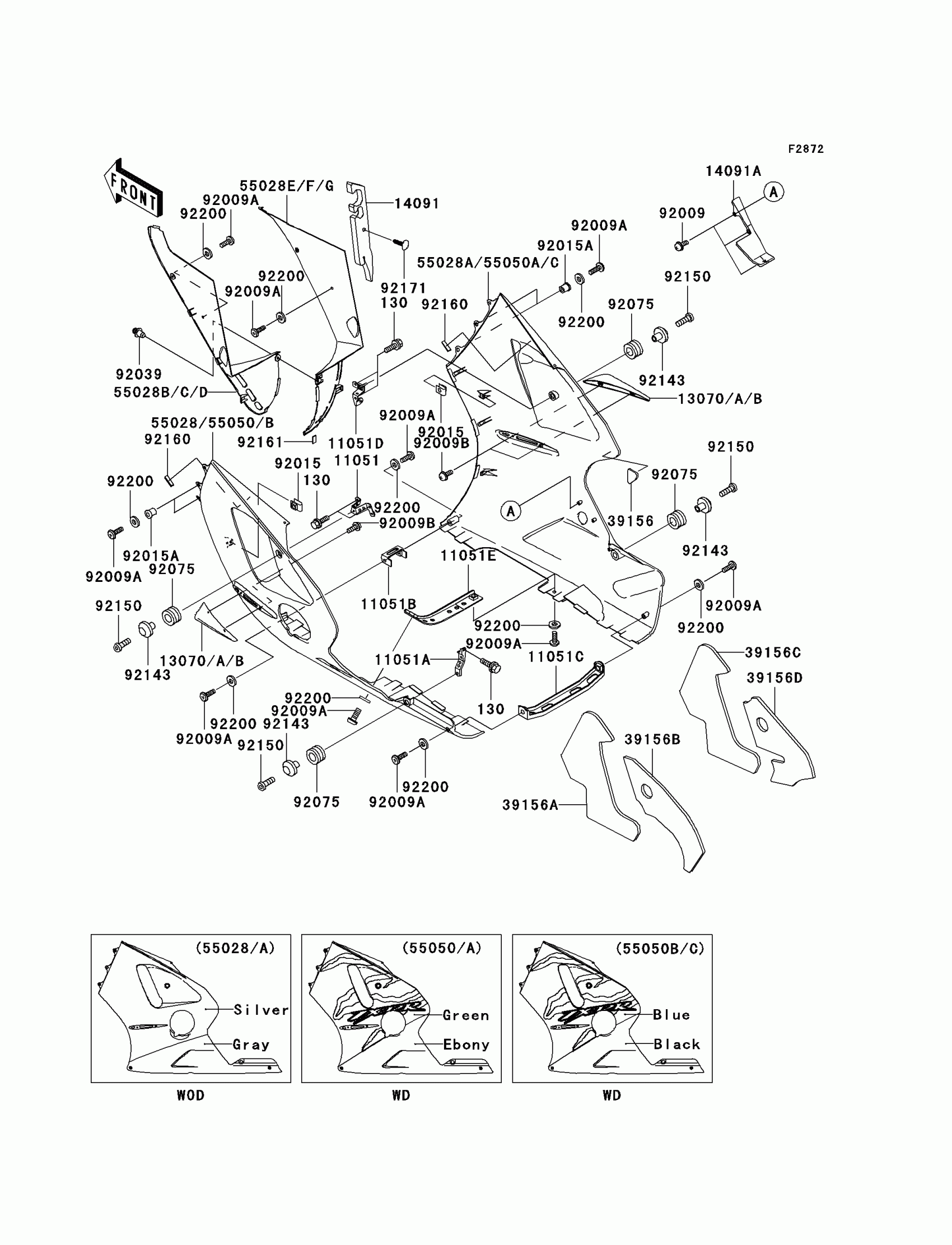

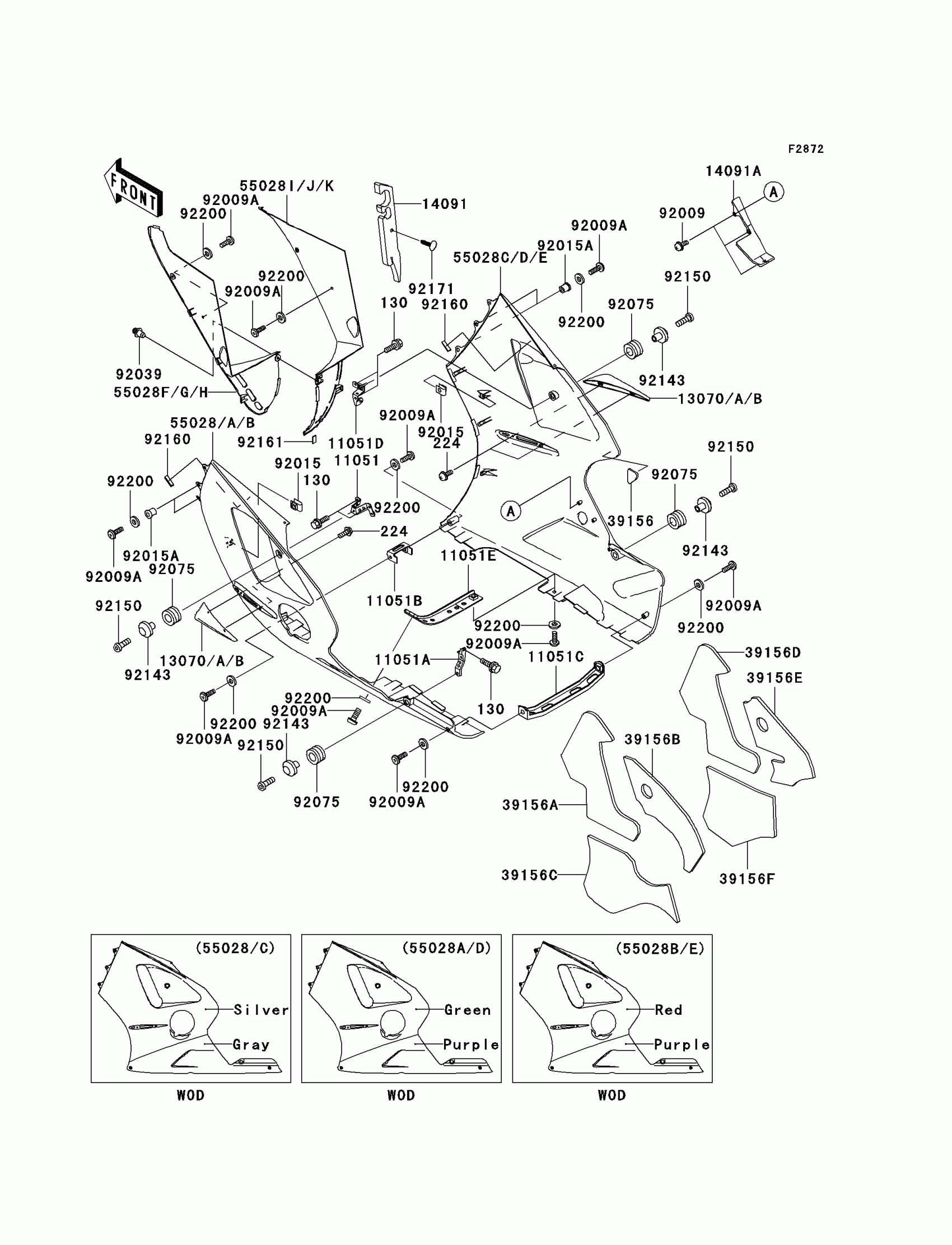

Kawasaki Ninja® ZX™-12R Cowling Lowers Diagram

BRACKET,LWR COWLING,LH,UPP

11051-1365

$15.97

BRACKET,LWR COWLING,LH,LWR

11051-1366

Unavailable

BRACKET,LWR COWLING,LH&RH,FR

11051-1367

$12.43

BRACKET,LWR COWLING,LH&RH,RR

11051-1368

$18.81

BRACKET,LWR COWLING,RH,UPP

11051-1369

$19.90

BRACKET,LWR COWLING,LWR,CNT

11051-1878

$15.97

GUIDE,WING,C.P.RED

13070-1341-A5

$94.37

GUIDE,WING,C.L.GREEN

13070-1341-8N

$119.38

COVER

14091-1272

$50.93

COVER

14091-1273

$33.40

PAD,COWLING,LWR,RH

39156-1646

$12.89

PAD,LWR COWLING,LH,FR

39156-1653

$50.93

PAD,LWR COWLING,LH,UPP

39156-1654

$36.93

PAD,LWR COWLING,LH,LWR

39156-1655

$39.22

PAD,LWR COWLING,RH,FR

39156-1656

$43.36

PAD,LWR COWLING,RH,UPP

39156-1657

$35.75

PAD,LWR COWLING,RH,LWR

39156-1658

$28.37

COWLING,LWR,LH,GREEN/PURPLE

55028-1380-DV

$670.58

COWLING,LWR,LH,RED/PURPLE

55028-1380-2B

Unavailable

COWLING,LWR,RH,GREEN/PURPLE

55028-1381-DV

$670.58

COWLING,LWR,RH,RED/PURPLE

55028-1381-2B

$670.58

COWLING,FR,LH,C.P.RED

55028-1382-A5

$167.31

COWLING,FR,LH,C.L.GREEN

55028-1382-8N

Unavailable

COWLING,FR,RH,C.P.RED

55028-1383-A5

$184.35

COWLING,FR,RH,C.L.GREEN

55028-1383-8N

Unavailable

SCREW,TAPPING,5X10

92009-1332

$3.92

SCREW,5X16

92009-1909

$2.03

NUT,5MM

92015-1573

$6.63

NUT,WELL,5MM

92015-1757

$7.29

RIVET

92039-1256

$2.75

BOLT-FLANGED,6X10

130V0610

Unavailable

SCREW-PAN-WP-CROS

224B0514

$4.12

DAMPER

92075-1634

$4.69

COLLAR,BLACK

92143-1226

$11.49

BOLT,SOCKET,6X18

92150-1553

$6.22

DAMPER

92160-1099

$4.80

DAMPER

92161-1170

$4.04

CLAMP

92171-1280

$3.09

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.59

GUIDE,WING,M.P.SILVER

13070-1341-GU

$110.83

COWLING,LWR,LH,SILVER/GRAY

55028-1380-C7

Unavailable

COWLING,LWR,RH,SILVER/GRAY

55028-1381-C7

Unavailable

COWLING,FR,LH,M.P.SILVER

55028-1382-GU

Unavailable

COWLING,FR,RH,M.P.SILVER

55028-1383-GU

Unavailable
