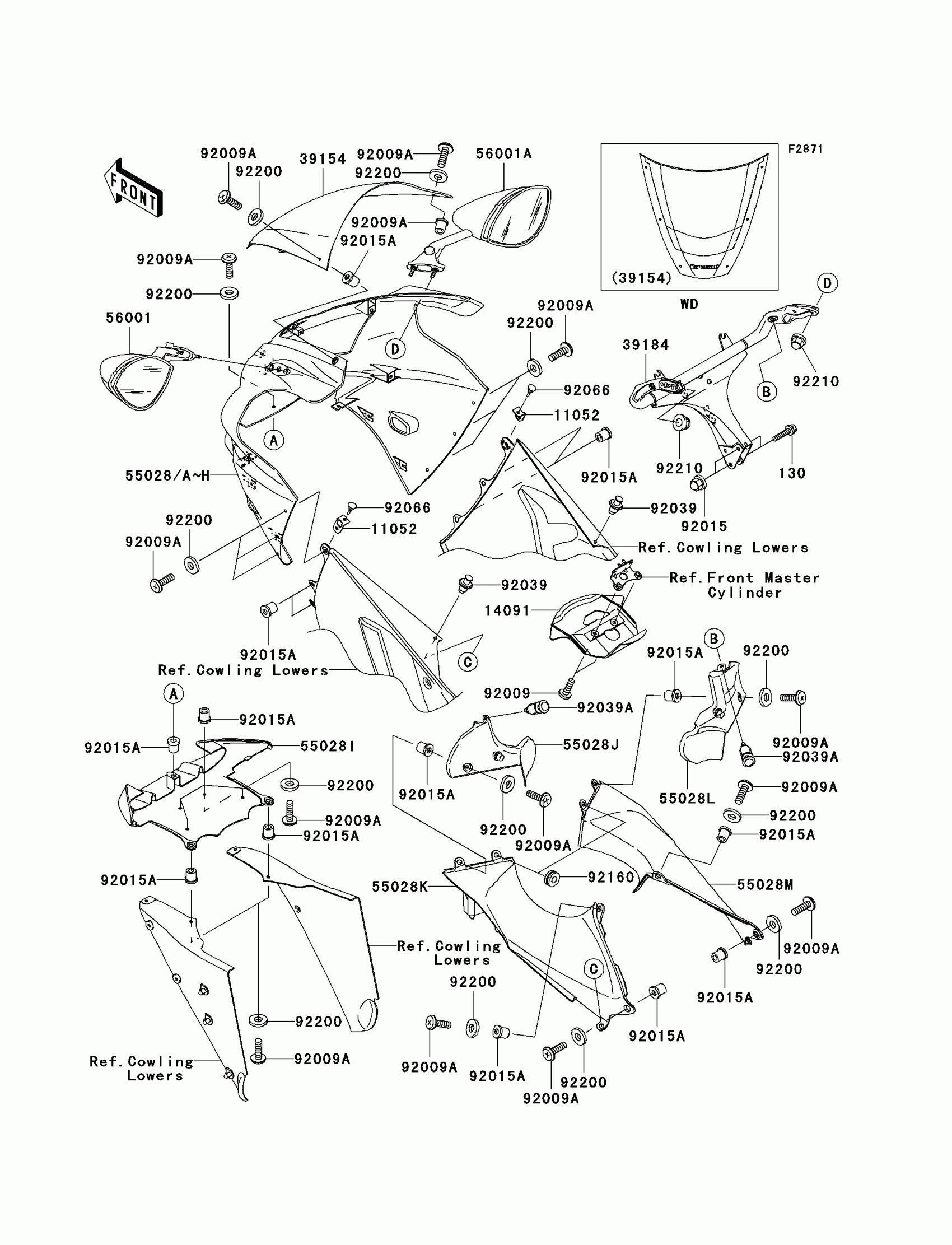

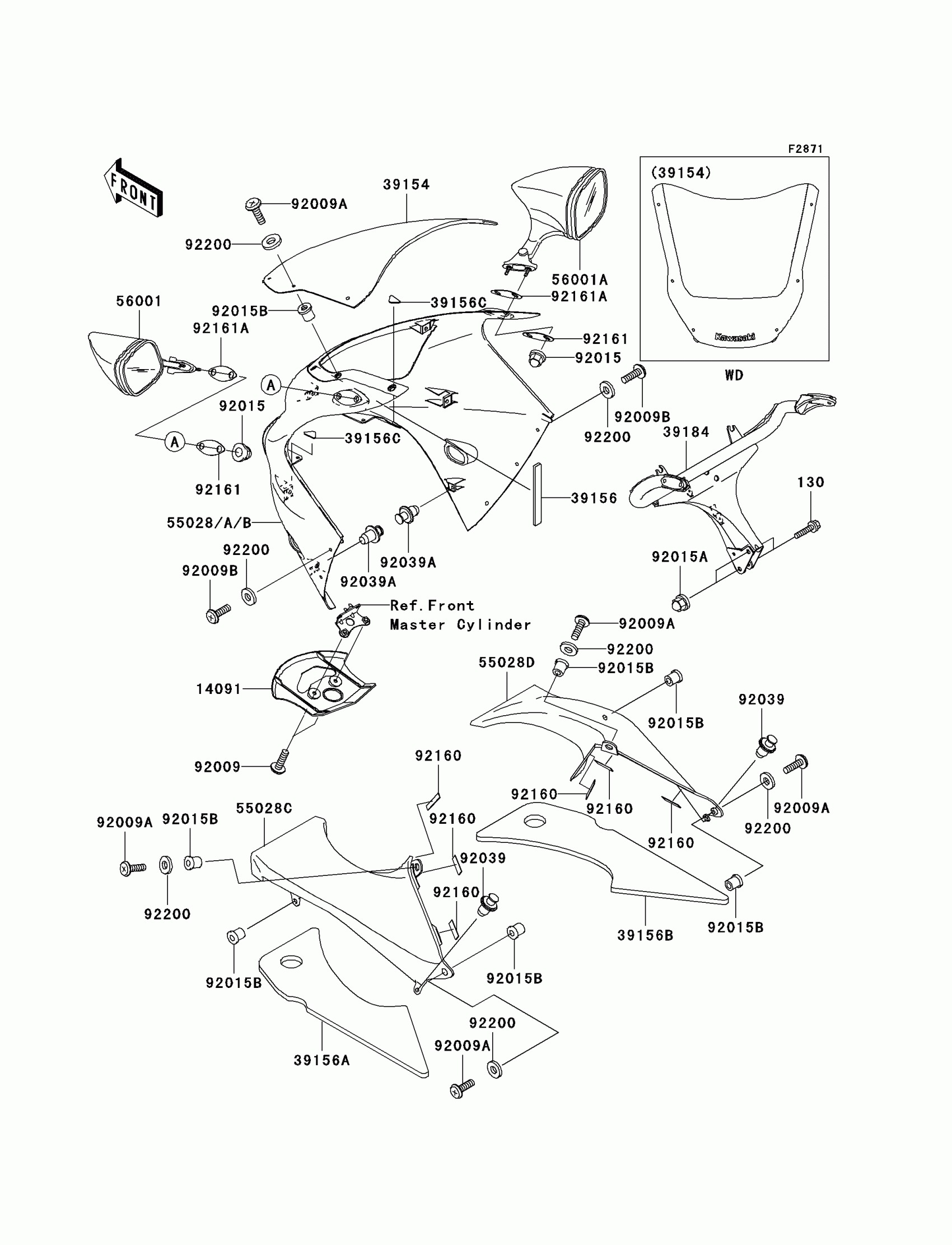

Kawasaki Ninja® ZX™-12R Cowling Diagram

#

Description
Price

130

BOLT-FLANGED,8X40

130J0840

Unavailable

14091

COVER,UNDER BRACKET

14091-1211

$44.77

39154

WINDSHIELD

39154-5011

Unavailable

39156

PAD,COWLING,UPP

39156-1645

$30.08

39156A

PAD,INNER COWLING,LH

39156-1651

Unavailable

39156B

PAD,INNER COWLING,RH

39156-1652

Unavailable

39156C

PAD,UPP COWLING

39156-1659

$12.61

39184

BRACKET-ASSY,METER&MIRROR

39184-1084

$564.28

55028

COWLING,UPP,C.P.RED

55028-1379-A5

$943.21

55028B

COWLING,UPP,C.L.GREEN

55028-1379-8N

$943.21

55028C

COWLING,INNER,LH,M,F.C.GRAY

55028-1384-3L

$248.62

55028D

COWLING,INNER,RH,M,F.C.GRAY

55028-1385-3L

$219.40

56001

MIRROR-ASSY,LH

56001-1521

$224.25

56001A

MIRROR-ASSY,RH

56001-1522

$224.25

92009

SCREW,6X10

92009-1661

$3.29

92009A

SCREW,5X16

92009-1909

$1.47

92009B

SCREW,5X20

92009-1934

$1.16

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.60

92015A

NUT,CAP,8MM,BLACK

92015-1174

$3.81

92015B

NUT,WELL,5MM

92015-1757

$5.58

92039

RIVET

92039-1227

$1.33

92039A

RIVET

92039-1256

$1.99

92160

DAMPER

92160-1099

$3.66

92161

DAMPER

92161-1158

$7.80

92161A

DAMPER

92161-1173

$9.86

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.20

55028A

COWLING,UPP,M.P.SILVER

55028-1379-GU

$916.59
