2000 Kawasaki Ninja® ZX™-12R Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2000 Kawasaki Ninja® ZX™-12R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

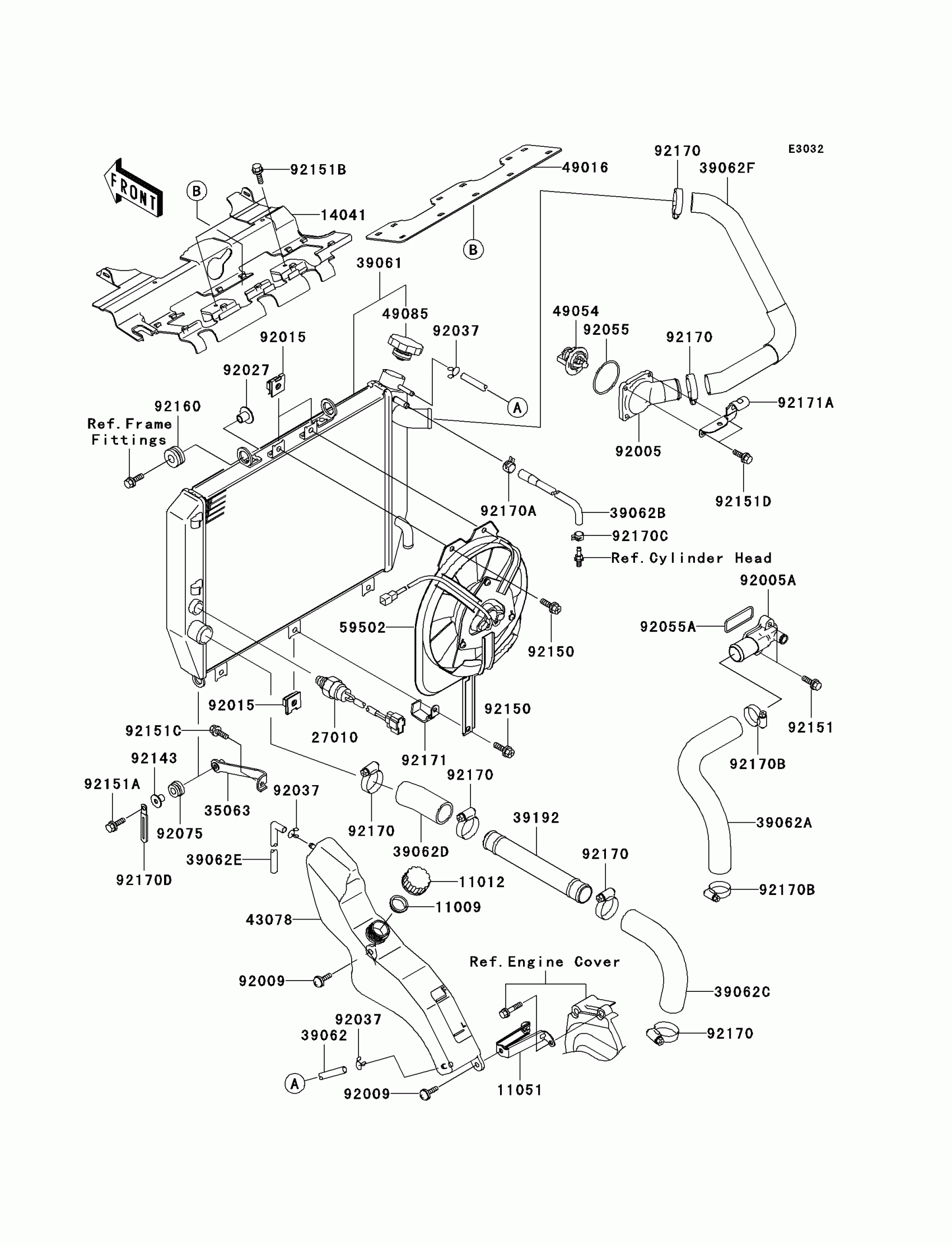

2000 Kawasaki Ninja® ZX™-12R Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11012

CAP

11012-1084

1
Out of stock

11051

BRACKET

11051-1435

1
Out of stock

14041

COVER-COMP

14041-1144

1
Out of stock

27010

SWITCH

27010-1418

1
Out of stock

35063

STAY

35063-1058

1
Out of stock

39061

RADIATOR-ASSY

39061-1273

1
Out of stock

39062

HOSE-COOLING,RADIATOR-RESERVE

39062-1719

1
Out of stock

39062A

HOSE-COOLING,PUMP-CYLINDER

39062-1792

1
Out of stock

39062B

HOSE-COOLING,RADIATOR

39062-1794

1
Out of stock

39062C

HOSE-COOLING,PIPE-PUMP

39062-1795

1
Out of stock

39062D

HOSE-COOLING,RADIATOR-PIPE

39062-1807

1
Out of stock

39062E

HOSE-COOLING

39062-1862

1
Out of stock

39062F

HOSE-COOLING,HEAD-RADIATOR

39062-1863

1
Out of stock

39192

PIPE-WATER

39192-1129

1
Out of stock

43078

RESERVOIR

43078-1166

1
Out of stock

49016

COVER-SEAL

49016-1205

1
Out of stock

49054

THERMOSTAT

49054-1067

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1067

1
Out of stock

59502

FAN-ASSY

59502-1133

1
Out of stock

92005

FITTING

92005-1362

1
Out of stock

92005A

FITTING

92005-1364

1
Out of stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92015

NUT

92015-1487

1
Out of stock

92027

COLLAR,FUEL TANK FITT

92027-1134

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92055

RING-O,53.5X2.6

92055-112

1
Out of stock

92055A

RING-O

92055-1402

1
Out of stock

92075

DAMPER,RUBBER

92075-1123

1
Out of stock

92143

COLLAR

92143-1353

1
Out of stock

92150

BOLT,6X12

92150-1186

1
Out of stock

92151

BOLT,6X25

92151-1130

1
Out of stock

92151A

BOLT,FLANGED,6X25

92151-1225

1
Out of stock

92151B

BOLT,6X12

92151-1239

1
Out of stock

92151C

BOLT,FLANGED,6X16

92151-1774

1
Out of stock

92151D

BOLT

92151-1776

1
Out of stock

92160

DAMPER

92160-1007

1
Out of stock

92170

CLAMP

92170-1036

1
Out of stock

92170A

CLAMP

92170-1201

1
Out of stock

92170B

CLAMP,COOLING HOSE

92170-1284

1
Out of stock

92170C

CLAMP

92170-1493

1
Out of stock

92170D

CLAMP

92170-1514

1
Out of stock

92171

CLAMP

92171-1177

1
Out of stock

92171A

CLAMP

92171-1215

1
Out of stock
