Partiron

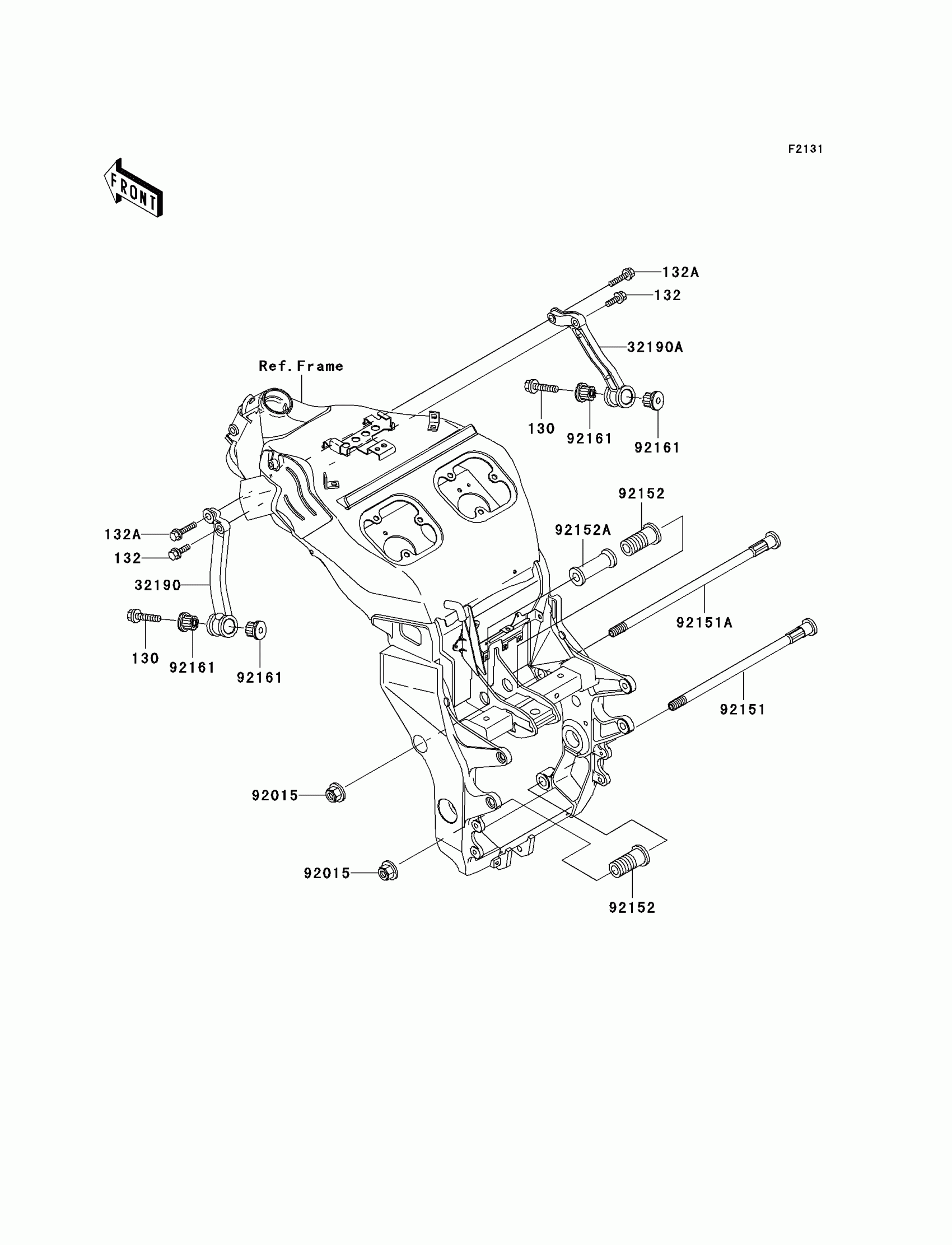

Kawasaki Ninja® ZX™-12R Frame Fittings Diagram

#

Description
Price

130

BOLT-FLANGED

130J1065

Unavailable

132

BOLT-FLANGED-SMALL,8X30

132J0830

Unavailable

132A

BOLT-FLANGED-SMALL,8X50

132J0850

Unavailable

32190

BRACKET-ENGINE,FR,LH,F.S.BLACK

32190-1188-8F

Unavailable

32190A

BRACKET-ENGINE,FR,RH,F.S.BLACK

32190-1189-8F

Unavailable

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92151

BOLT,12X268

92151-1558

$32.12

92151A

BOLT,12X312

92151-1559

$32.12

92152

COLLAR,L=51

92152-1185

$36.89

92152A

COLLAR,L=65

92152-1186

$30.09

92161

DAMPER,ENGINE MOUNT

92161-1072

$37.64
