1993 Kawasaki Ninja® ZX™-11 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

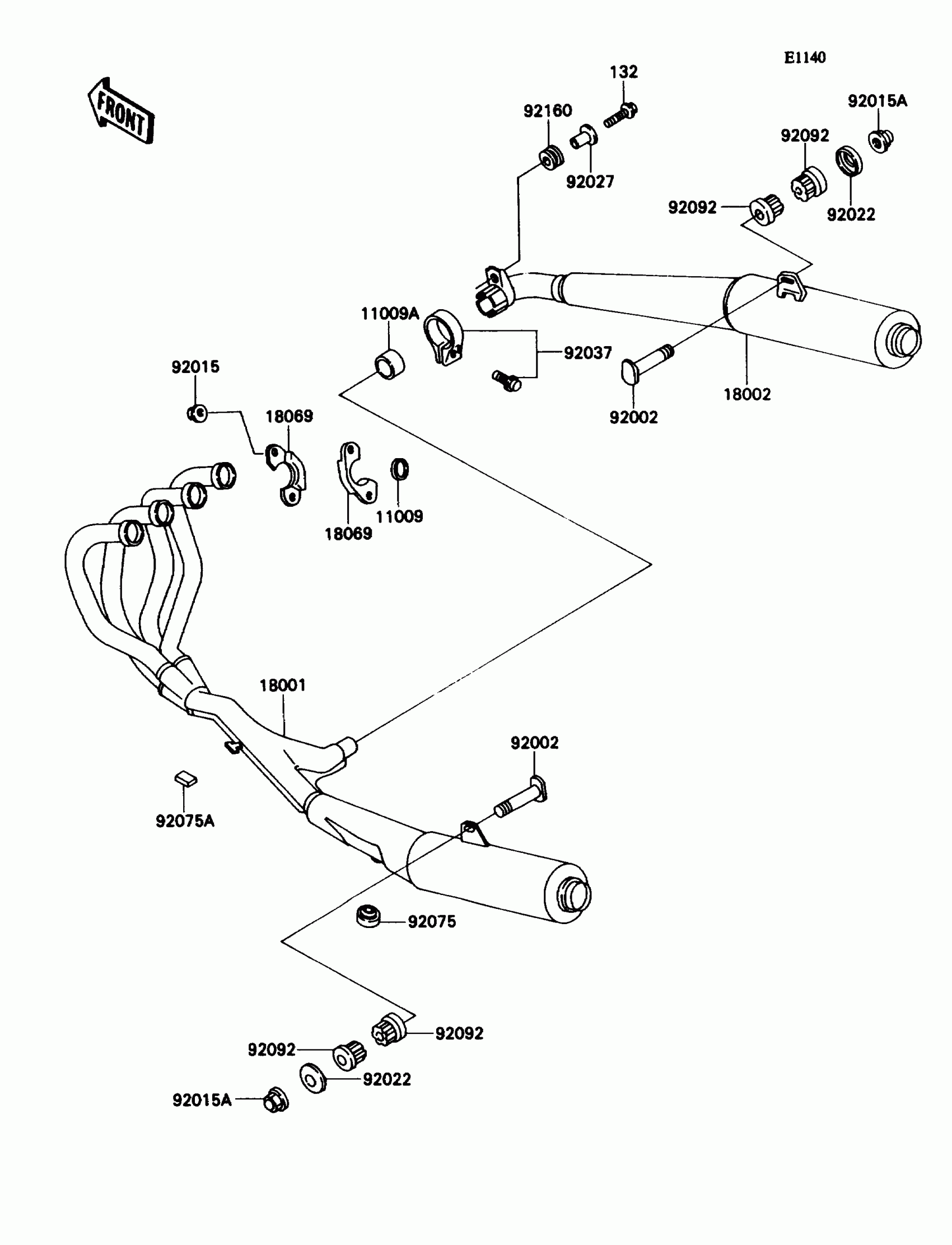

1993 Kawasaki Ninja® ZX™-11 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$6.49

In stock

11009A

1

$48.40

In stock

18001

MUFFLER,LH

18001-1784

1

$1,205.14

In stock

18002

1

$720.97

In stock

18069

HOLDER-EXHAUST PIPE

18069-1054

1
Out of stock

92002

BOLT,10X55

92002-1939

1
Out of stock

92015

NUT,LOCK,8MM

92015-1380

1

$3.46

In stock

92015A

NUT,CAP,10MM

92015-1749

1
Out of stock

92022

1

$5.42

In stock

92027

1

$8.16

In stock

92037

CLAMP,POWER CHAMBER

92037-1537

1

$19.14

In stock

92075

DAMPER

92075-015

1

$3.97

In stock

92075A

DAMPER

92075-1446

1

$4.17

In stock

92092

1

$13.70

In stock

92160

DAMPER

92160-1007

1

$4.37

In stock

132

BOLT-FLANGED-SMALL

132G0835

1
Out of stock
