2021 Kawasaki Ninja® ZX™-10RR (US) Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2021 Kawasaki Ninja® ZX™-10RR (US), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

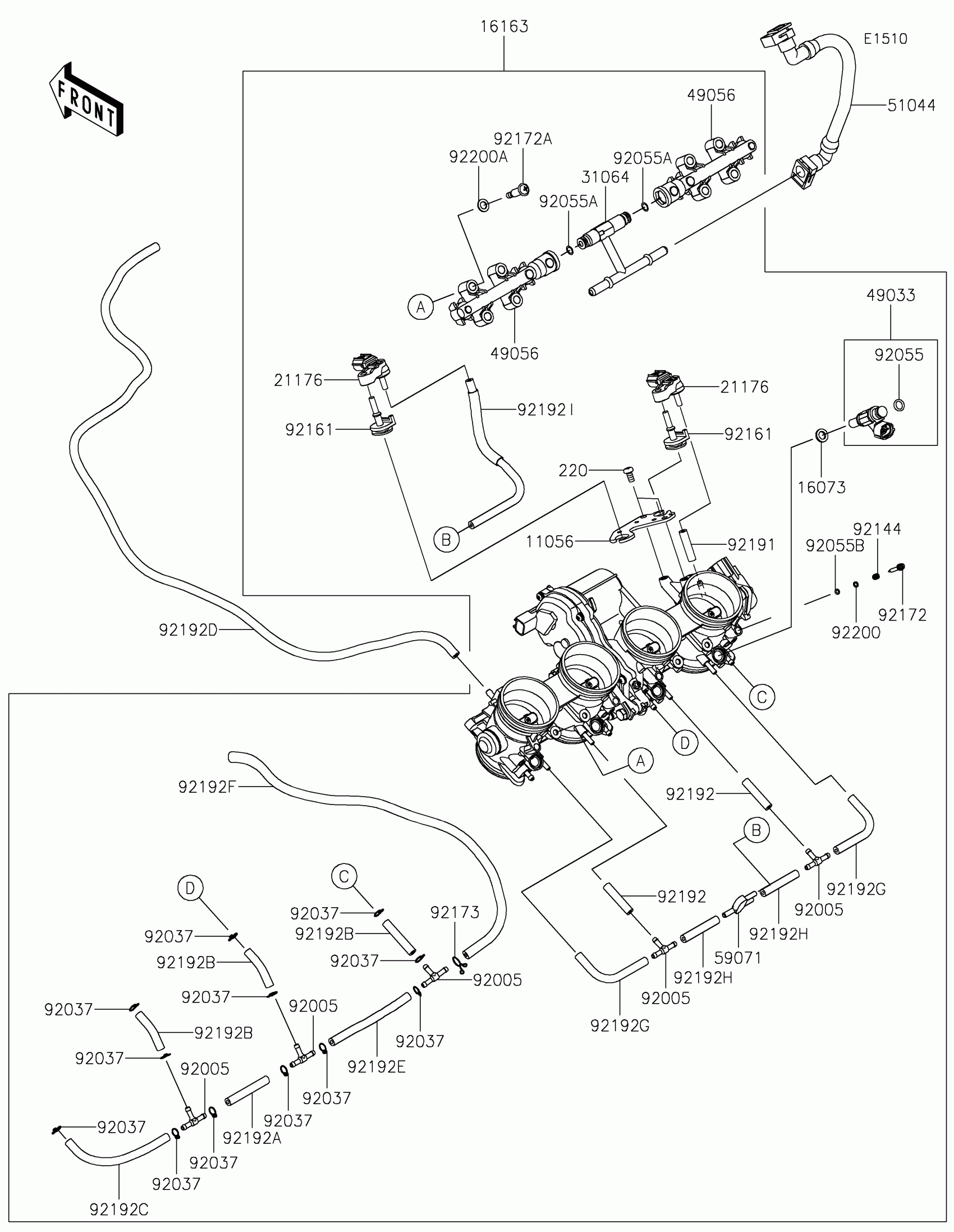

2021 Kawasaki Ninja® ZX™-10RR (US) Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-7844

1
Out of stock

16073

INSULATOR

16073-0848

1
Out of stock

16163

THROTTLE-ASSY

16163-1216

1
Out of stock

21176

SENSOR,PRESSURE

21176-0906

1
Out of stock

31064

PIPE-COMP

31064-0686

1
Out of stock

49033

NOZZLE-INJECTION

49033-0564

1
Out of stock

49056

PIPE-INJECTION

49056-0046

1
Out of stock

51044

TUBE-ASSY,FUEL

51044-0859

1
Out of stock

59071

JOINT

59071-0022

1
Out of stock

92005

FITTING

92005-1380

1
Out of stock

92037

CLAMP,TUBE

92037-1124

1
Out of stock

92055

RING-O,INJECTION NOZZLE

92055-0124

1
Out of stock

92055A

RING-O

92055-0761

1
Out of stock

92055B

RING-O

92055-0840

1
Out of stock

92144

SPRING,THROTTLE STOP SCREW

92144-1674

1
Out of stock

92161

DAMPER

92161-0673

1
Out of stock

92172

SCREW

92172-0156

1
Out of stock

92172A

SCREW,PIPE INJECTION

92172-0828

1
Out of stock

92173

CLAMP

92173-1568

1
Out of stock

92191

TUBE,3.2X7.4X30

92191-1550

1
Out of stock

92192

TUBE,3.2X7.4X35

92192-1234

1
Out of stock

92192A

TUBE,3.5X7.5X55

92192-1349

1
Out of stock

92192B

TUBE,3.5X7.5X40

92192-1494

1
Out of stock

92192C

TUBE,3.5X7.5X125

92192-1497

1
Out of stock

92192D

TUBE

92192-1499

1
Out of stock

92192E

TUBE,3.5X7.5X100

92192-1521

1
Out of stock

92192F

TUBE,L=450

92192-1612

1
Out of stock

92192G

TUBE,3.2X7.4X85

92192-1616

1
Out of stock

92192H

TUBE,3.2X7.4X45

92192-1617

1
Out of stock

92192I

TUBE,3.2X7.4X200

92192-1618

1
Out of stock

92200

WASHER,PILOT AIR SCREW

92200-1564

1
Out of stock

92200A

WASHER

92200-3807

1
Out of stock

220

SCREW-PAN-CROS,5X10

220AA0510

1
Out of stock
