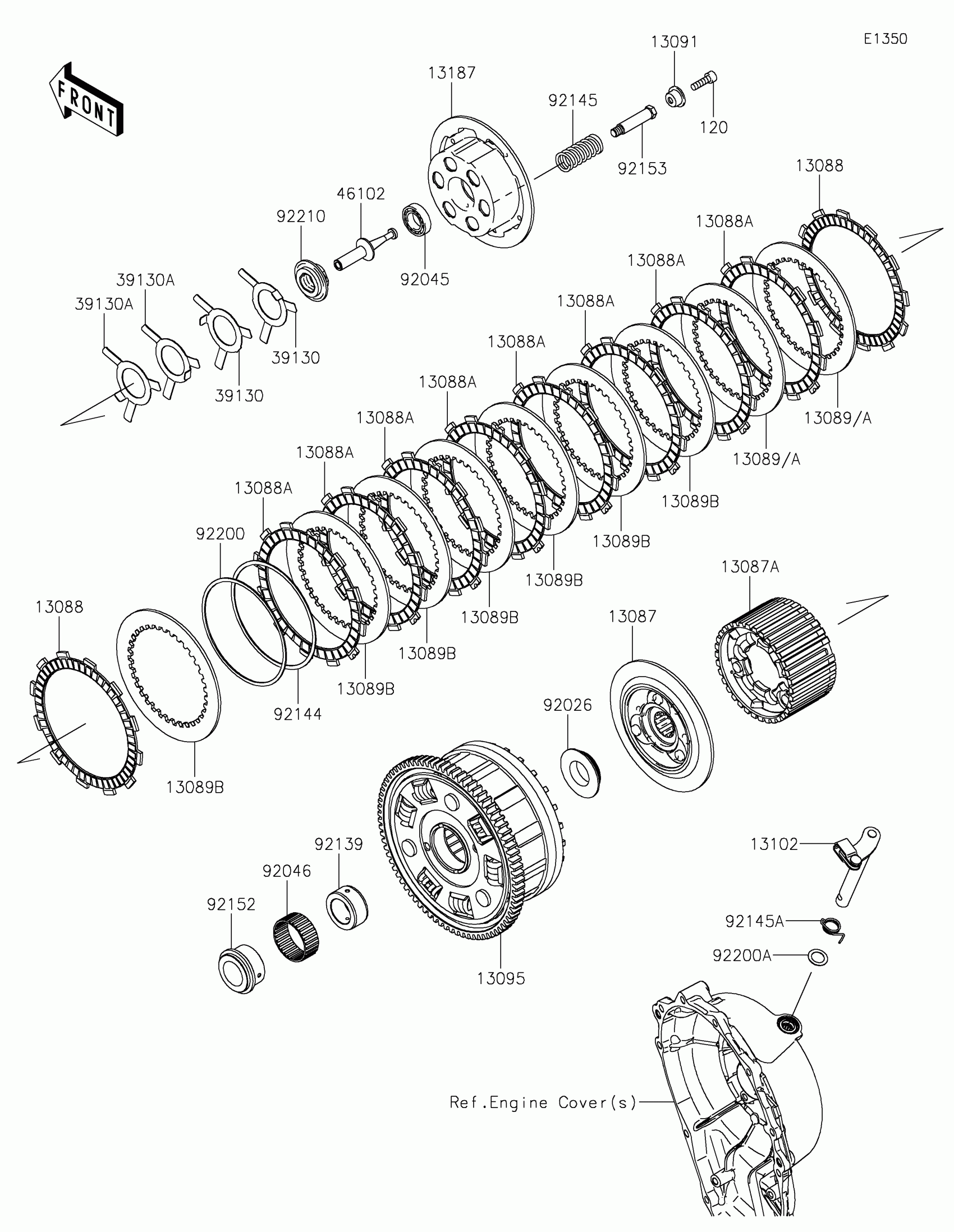

Kawasaki Ninja® ZX™-10RR (US) Clutch Diagram

#

Description
Price

13087

HUB-CLUTCH

13087-0010

$116.85

13087A

HUB-CLUTCH

13087-0011

$172.98

13088

PLATE-FRICTION

13088-0003

$14.11

13088A

PLATE-FRICTION

13088-0013

$14.11

13089

PLATE-CLUTCH,T=2.3

13089-0008

Unavailable

13089A

PLATE-CLUTCH,T=2.6

13089-0009

$9.78

13089B

PLATE-CLUTCH,T=2.9

13089-1093

$9.43

13091

HOLDER,CLUTCH SPRING

13091-1840

$3.54

13095

HOUSING-COMP-CLUTCH

13095-0582

$469.79

13102

RELEASE-COMP-CLUTCH

13102-0049

$61.78

13187

PLATE-CLUTCH OPERATING

13187-0006

$86.44

39130

SPRING-LEAF

39130-1078

$7.52

39130A

SPRING-LEAF

39130-1079

$7.52

46102

ROD

46102-0609

$40.25

92026

SPACER

92026-0164

$18.05

92045

BEARING-BALL,6903/2A

92045-1053

$25.24

92046

BEARING-NEEDLE

92046-0041

$18.10

92139

BUSHING,25X38X17.3

92139-0304

$38.39

92144

SPRING,FRICTION PLATE

92144-1854

$6.78

92145

SPRING,CLUTCH

92145-0220

$5.50

92145A

SPRING,RELEASE-COMP

92145-1775

$4.25

92152

COLLAR

92152-0866

$42.21

92153

BOLT

92153-0797

$7.89

92200

WASHER,FRICTION PLATE

92200-1260

$7.83

92200A

WASHER,12X18.5X0.5

92200-1487

$1.95

92210

NUT

92210-0152

$7.70

120

BOLT-SOCKET,6X20

120Q0620

Unavailable
