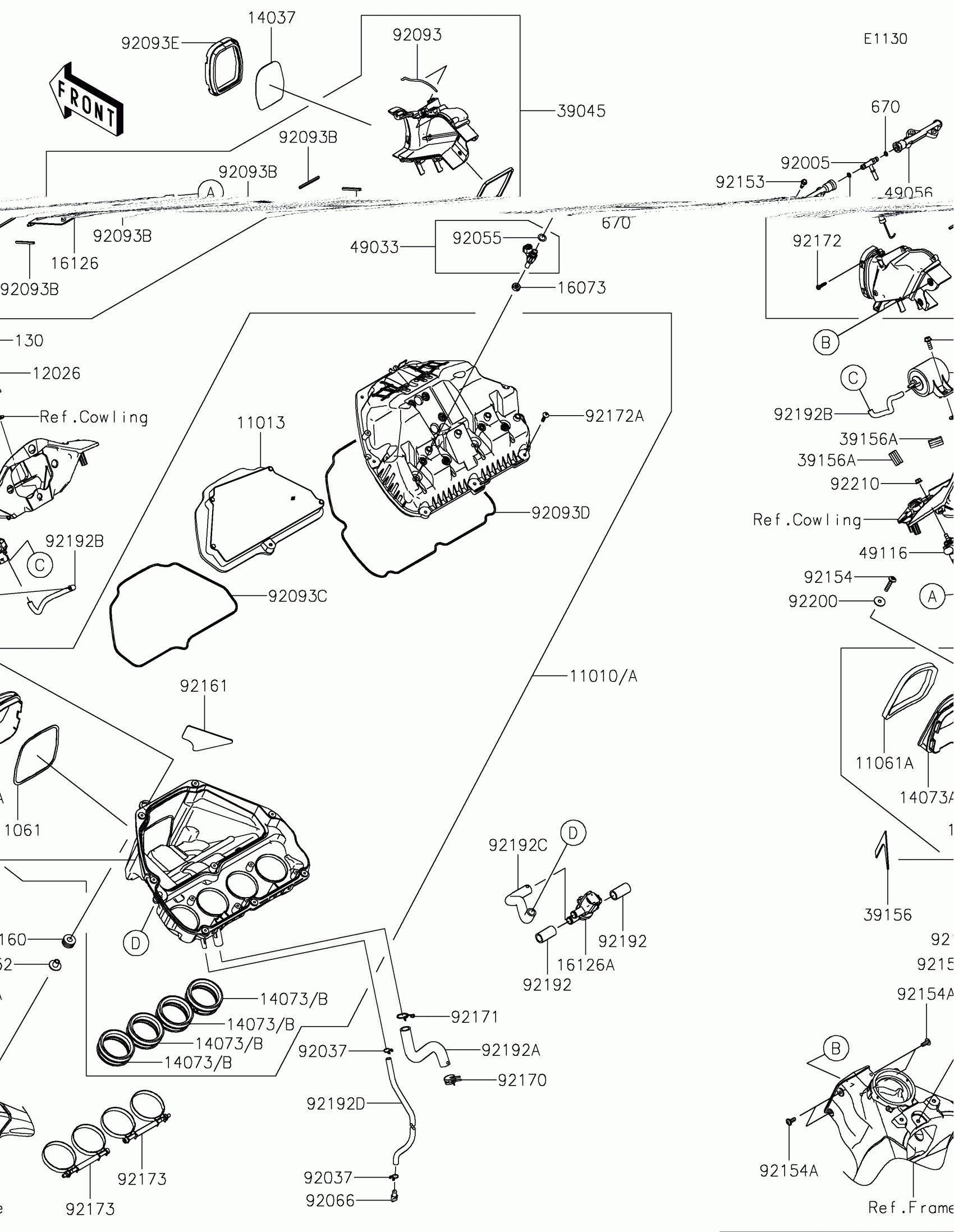

Kawasaki Ninja® ZX™-10RR (US) Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-0977

$504.24

11010A

FILTER-ASSY-AIR

11010-1000

$561.65

11013

ELEMENT-AIR FILTER

11013-0777

$72.24

11061

GASKET

11061-0444

$3.64

11061A

GASKET

11061-0445

$4.92

12026

CHAMBER

12026-0009

$88.53

14037

SCREEN,RAM DUCT

14037-0816

$18.75

14073

DUCT,SUB FUNNEL

14073-0835

$15.02

14073A

DUCT

14073-0841

$18.66

14073B

DUCT,SUB FUNNEL

14073-1871

$16.56

16073

INSULATOR

16073-0129

$4.53

16126

VALVE

16126-0057

$13.86

16126A

VALVE,AIR SWITCHING

16126-0745

$193.92

16172

ACTUATOR

16172-0023

$117.32

39045

DUCT-ASSY,RAM

39045-0058

$250.33

39156

PAD

39156-1988

$3.27

39156A

PAD,20X26.5X5

39156-2644

$1.13

49033

NOZZLE-INJECTION

49033-0564

$118.68

49056

PIPE-INJECTION

49056-0032

$15.81

49116

VALVE-ASSY

49116-0044

$82.96

92005

FITTING

92005-0125

$10.88

92037

CLAMP,TUBE

92037-147

$5.61

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.09

92066

PLUG,DRAIN

92066-1211

$6.48

92093

SEAL

92093-0175

$1.42

92093A

SEAL

92093-0176

$3.19

92093B

SEAL

92093-0178

$0.83

92093C

SEAL,ELEMENT

92093-0686

$7.41

92093D

SEAL,CASE

92093-0693

$10.24

92093E

SEAL,RAM DUCT

92093-0752

$15.44

92152

COLLAR

92152-2197

$4.61

92153

BOLT,FLANGED,5MM

92153-0361

$3.75

92154

BOLT,SOCKET,6X30

92154-0435

$1.24

92154A

BOLT,FLANGED,BUTTON,6X18

92154-1882

$1.62

92160

DAMPER

92160-1162

$3.81

92161

DAMPER

92161-2408

$24.32

92170

CLAMP

92170-1060

$7.93

92171

CLAMP

92171-0391

$3.71

92172

SCREW,TAPPING,5X20

92172-0009

$1.98

92172A

SCREW,TAPPING,5X20

92172-0483

Unavailable

92173

CLAMP

92173-0222

$25.24

92192

TUBE,12X17.6X38

92192-0887

$15.32

92192A

TUBE,BREATHER

92192-0889

$12.73

92192B

TUBE

92192-1119

$3.86

92192C

TUBE,AIR CLEANER-ASV

92192-1619

$13.78

92192D

TUBE,10X13X420

92192-1644

$10.24

92200

WASHER,6.5X22X1.6

92200-1087

$3.01

92210

NUT,FLANGED,6MM

92210-0368

$1.04

130

BOLT-FLANGED,6X18

130BB0618

$1.33

670

O RING,8MM

670E1508

$1.32
