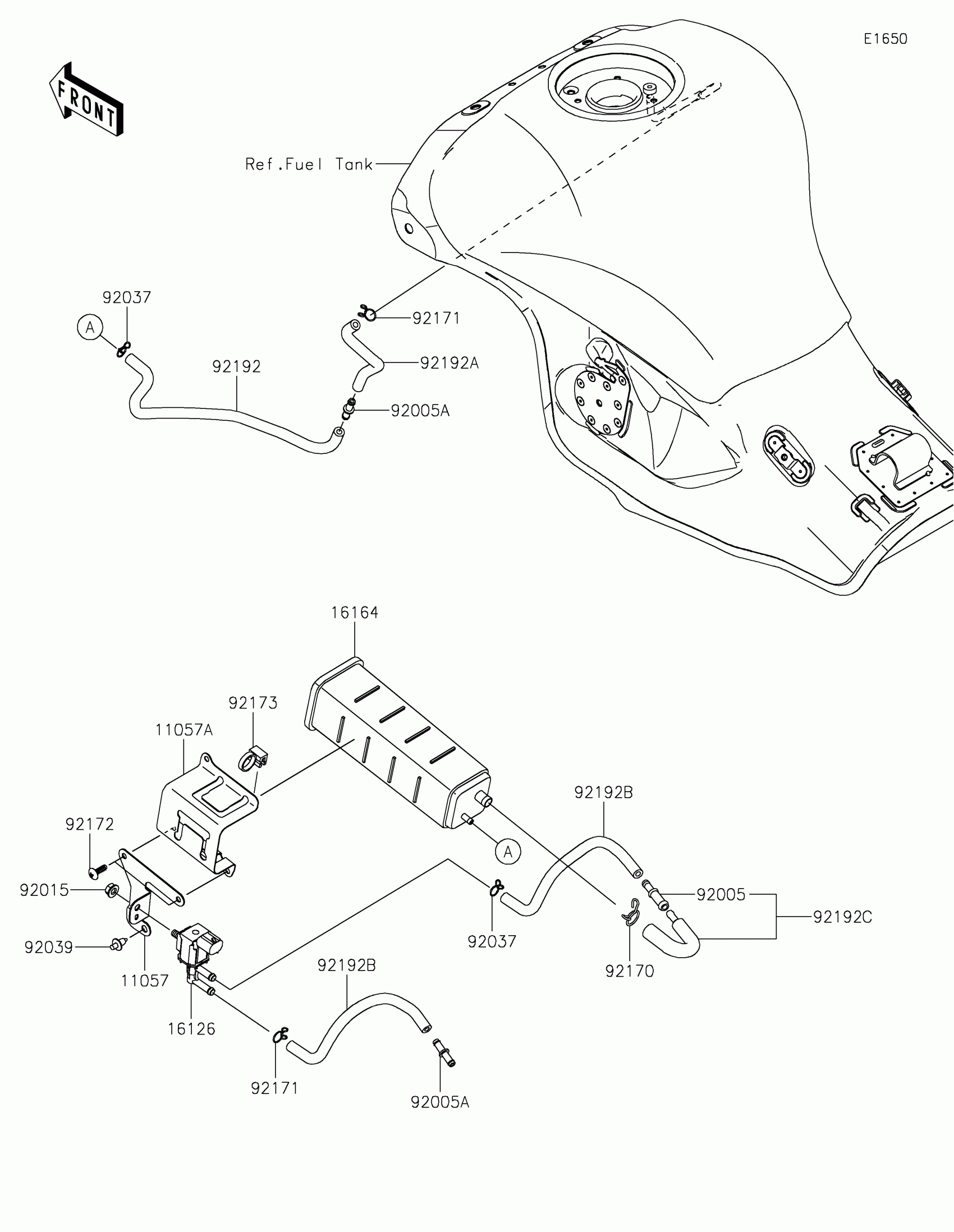

Kawasaki Ninja® ZX™-10RR (US) Fuel Evaporative System Diagram

Description

Price

11057

BRACKET,SOLENOID VALVE

11057-4234

Unavailable

11057A

BRACKET,CANISTER

11057-4235

$8.76

16126

VALVE,SOLENOID

16126-0705

$109.25

16164

CANISTER

16164-0009

$140.36

92005

FITTING

92005-0720

$3.19

92005A

FITTING

92005-0721

$8.85

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP

92037-1712

$3.81

92039

RIVET

92039-0068

$2.09

92170

CLAMP

92170-1695

$2.27

92171

CLAMP

92171-0718

$1.81

92172

SCREW,TAPPING,5X16

92172-0175

$1.32

92173

CLAMP

92173-0791

$10.73

92192

TUBE,CANISTER-FITTING(TANK)

92192-1503

$49.83

92192A

TUBE,FITTING(CANISTER)-TANK

92192-1506

$18.75

92192B

TUBE,VALVE-TUBE(CANISTER)

92192-2506

$35.90

92192C

TUBE,TUBE(VALVE)-CANISTER

92192-2507

$36.66
