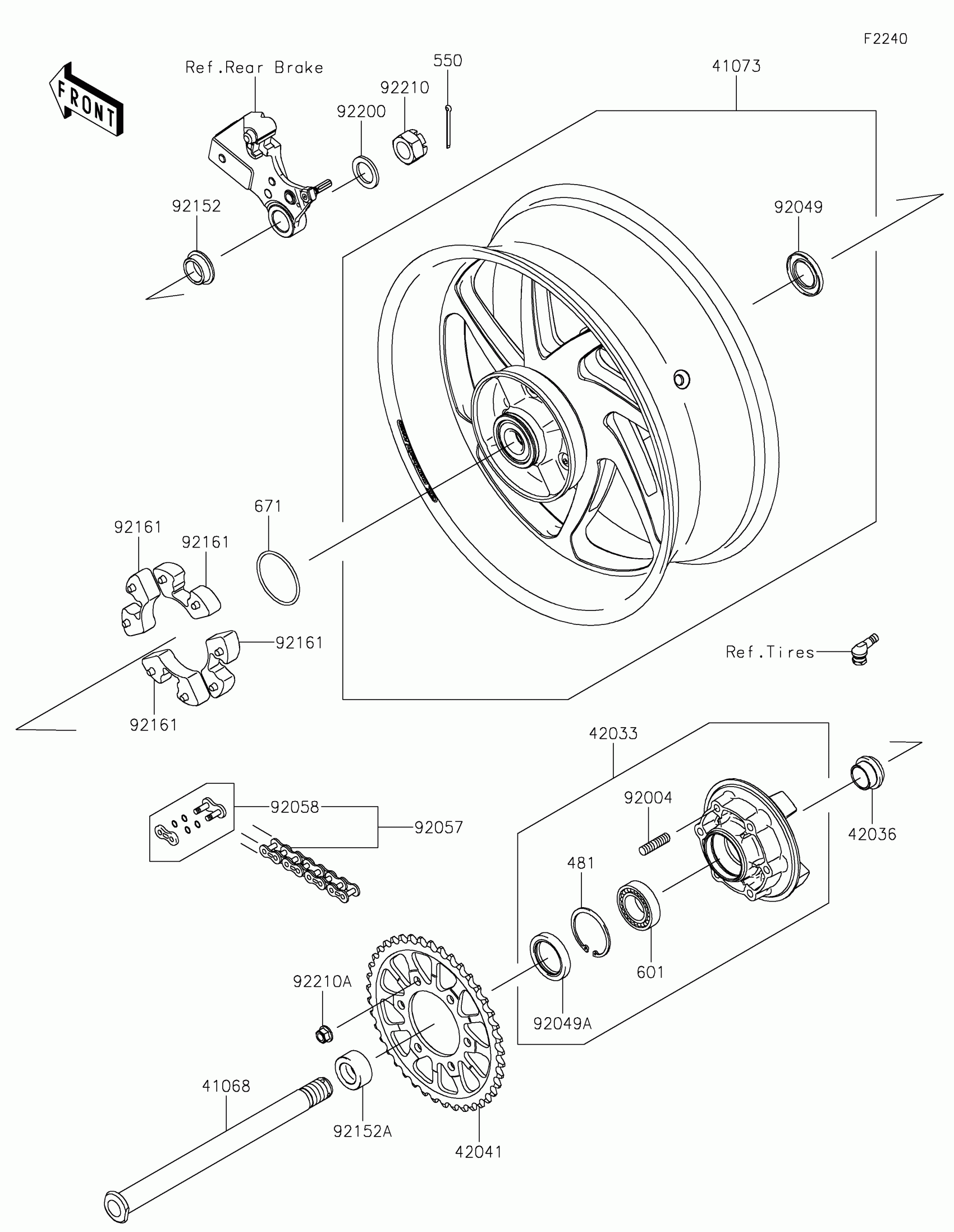

Kawasaki Ninja® ZX™-10RR (US) Rear Wheel/Chain Diagram

Description

Price

41068

AXLE,RR,24X326

41068-0613

$80.61

41073

WHEEL-ASSY,RR,M.BLACK+GRN

41073-0718-60M

$2,760.04

42033

COUPLING-ASSY,RR HUB

42033-0038

$244.55

42036

SLEEVE,RR HUB,L=22

42036-1279

$25.74

42041

SPROCKET-HUB,41T

42041-0095

$84.59

92004

STUD,10X19

92004-0028

$6.80

92049

SEAL-OIL,31X52X5

92049-0722

$16.06

92049A

SEAL-OIL,PJN 40 55 8

92049-1376

$13.54

92057

CHAIN,DRIVE,RKGB525KZX,116L

92057-0822

$273.48

92058

JOINT-CHAIN

92058-0072

$23.03

92152

COLLAR,25X32X13

92152-2719

$33.76

92152A

COLLAR,25X40X18.7

92152-2720

$39.03

92161

DAMPER,SHOCK,RR HUB

92161-0342

$21.16

92200

WASHER,25.5X38X3.2

92200-0278

$1.85

92210

NUT,CASTLE,24MM

92210-0280

$10.34

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90

481

CIRCLIP

481J5500

Unavailable

550

PIN-COTTER,4.0X45

550AA4045

$0.97

601

BEARING-BALL,#6006G

601B6006G

$25.77

671

O RING,60MM

671B2560

$5.13
