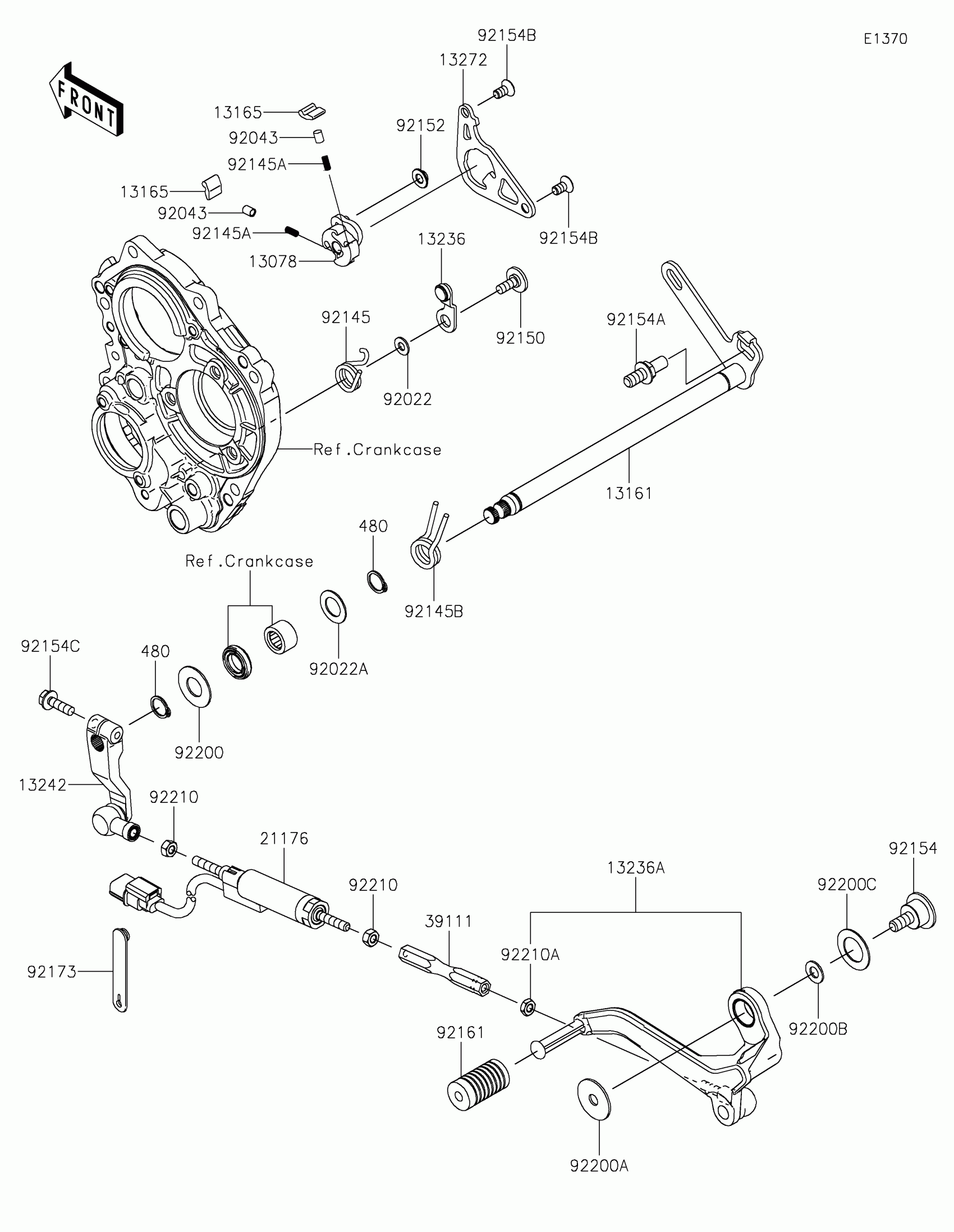

Kawasaki Ninja® ZX™-10RR (US) Gear Change Mechanism Diagram

Description

Price

13078

RATCHET

13078-0012

$72.59

13161

LEVER-COMP-CHANGE SHAFT

13161-0078

Unavailable

13165

PAWL

13165-0018

$14.69

13236

LEVER-COMP,POSITION

13236-0192

$19.49

13236A

LEVER-COMP,CHANGE PEDAL

13236-0843

$102.47

13242

LEVER-ASSY-CHANGE

13242-0241

$70.42

13272

PLATE

13272-2171

$15.15

21176

SENSOR,QUICK SHIFTER

21176-0850

$230.84

39111

ROD-TIE

39111-0338

$48.96

92022

WASHER,6X12.8X1.2

92022-1827

$3.57

92022A

WASHER,14.3X24X1

92022-272

$8.63

92043

PIN,PLUNGER

92043-1676

$6.65

92145

SPRING

92145-0849

$8.05

92145A

SPRING

92145-1490

$2.52

92145B

SPRING

92145-1734

$15.20

92150

BOLT,SOCKET,6X16

92150-1673

Unavailable

92152

COLLAR

92152-1414

$5.82

92154

BOLT

92154-1884

$26.18

92154A

BOLT,RETURN SPRING

92154-1885

$8.37

92154B

BOLT,TORX,6X8.7

92154-1886

$2.98

92154C

BOLT,FLANGED,6X20

92154-2090

$2.25

92161

DAMPER

92161-2401

$5.88

92173

CLAMP

92173-2199

$1.32

92200

WASHER

92200-0265

$1.85

92200A

WASHER,8.2X30X1.5

92200-0810

$3.36

92200B

WASHER,8.2X18X1.2

92200-0811

$3.29

92200C

WASHER,18.3X30X1

92200-0812

$3.68

92210

NUT,6MM

92210-1100

$1.68

92210A

NUT,LEFT HANDED,6MM

92210-1101

$1.20

480

CIRCLIP-TYPE-C,14MM

480J1400

$3.81
