2018 Kawasaki Ninja® ZX™-10RR Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2018 Kawasaki Ninja® ZX™-10RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

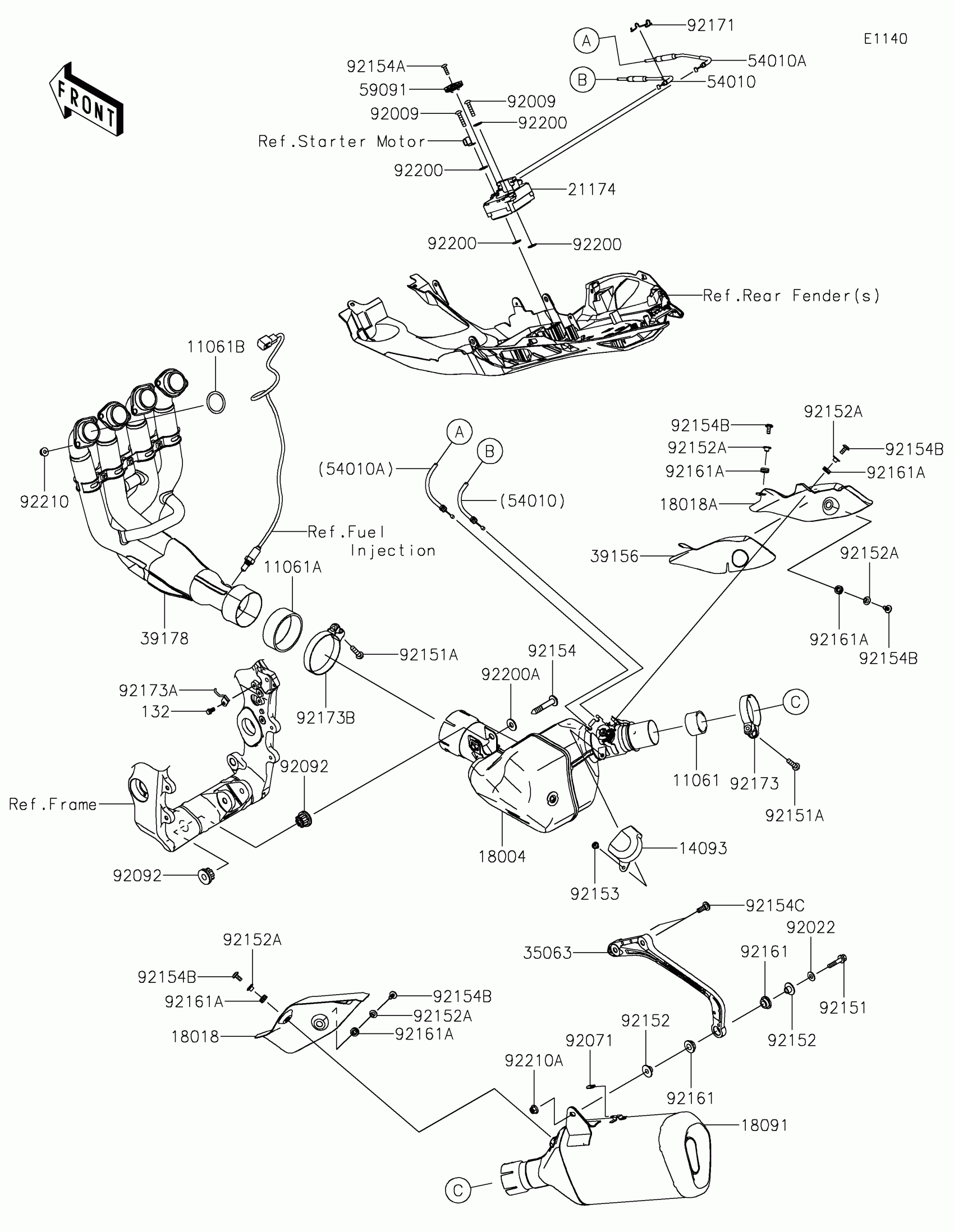

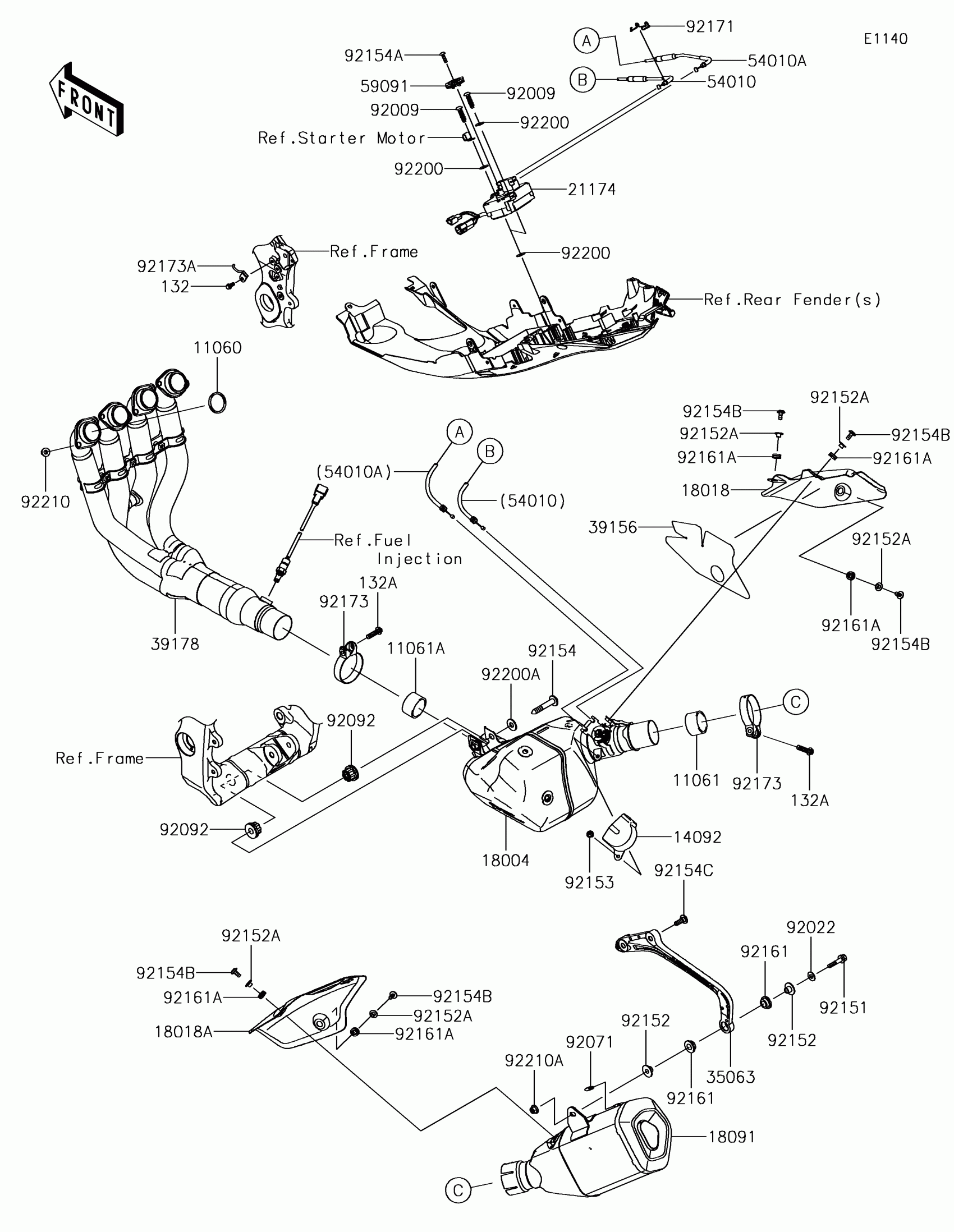

2018 Kawasaki Ninja® ZX™-10RR Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,EXHAUST PIPE

11060-1203

1
Out of stock

11061

GASKET,50.8X62X30

11061-0447

1
Out of stock

11061A

GASKET,54X62X30

11061-0448

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132BA0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,8X30

132BC0830

1
Out of stock

14092

COVER,PULLEY

14092-0705

1
Out of stock

18004

CHAMBER-PREMUFFLER

18004-0022

1
Out of stock

18018

PLATE-HEAT GUARD,CHAMBER

18018-0600

1
Out of stock

18018A

PLATE-HEAT GUARD,MUFFLER

18018-0601

1
Out of stock

18091

BODY-COMP-MUFFLER

18091-0970

1
Out of stock

21174

MOTOR-ELECTRIC

21174-0009

1
Out of stock

35063

STAY

35063-1380

1
Out of stock

39156

PAD

39156-1937

1
Out of stock

39178

MANIFOLD-COMP-EXHAUST

39178-0248

1
Out of stock

54010

CABLE,OPEN

54010-0610

1
Out of stock

54010A

CABLE,CLOSE

54010-0611

1
Out of stock

59091

PULLEY

59091-0007

1
Out of stock

92009

SCREW,TAPPING,6X30

92009-1481

1
Out of stock

92022

WASHER,8.5X19X1.2

92022-3730

1
Out of stock

92071

GROMMET

92071-1270

1
Out of stock

92092

BUSHING-RUBBER,MUFFLER

92092-1087

1
Out of stock

92151

BOLT,FLANGED,8X40

92151-1532

1
Out of stock

92152

COLLAR

92152-0188

1
Out of stock

92152A

COLLAR,6.3X8.3X16

92152-2180

1
Out of stock

92153

BOLT,SOCKET,6X10

92153-1527

1
Out of stock

92154

BOLT,SOCKET,10X61

92154-0125

1
Out of stock

92154A

BOLT,TORX,5X18

92154-0217

1
Out of stock

92154B

BOLT,SOCKET,6X14

92154-0907

1
Out of stock

92154C

BOLT,SOCKET,8X23

92154-1901

1
Out of stock

92161

DAMPER

92161-0135

1
Out of stock

92161A

DAMPER

92161-0308

1
Out of stock

92171

CLAMP

92171-0292

1
Out of stock

92173

CLAMP,64.5MM

92173-0284

1
Out of stock

92173A

CLAMP

92173-1528

1
Out of stock

92200

WASHER

92200-0078

1
Out of stock

92200A

WASHER,10.5X25X2.0

92200-1377

1
Out of stock

92210

NUT,8MM

92210-0076

1
Out of stock

92210A

NUT,8MM

92210-0121

1
Out of stock
