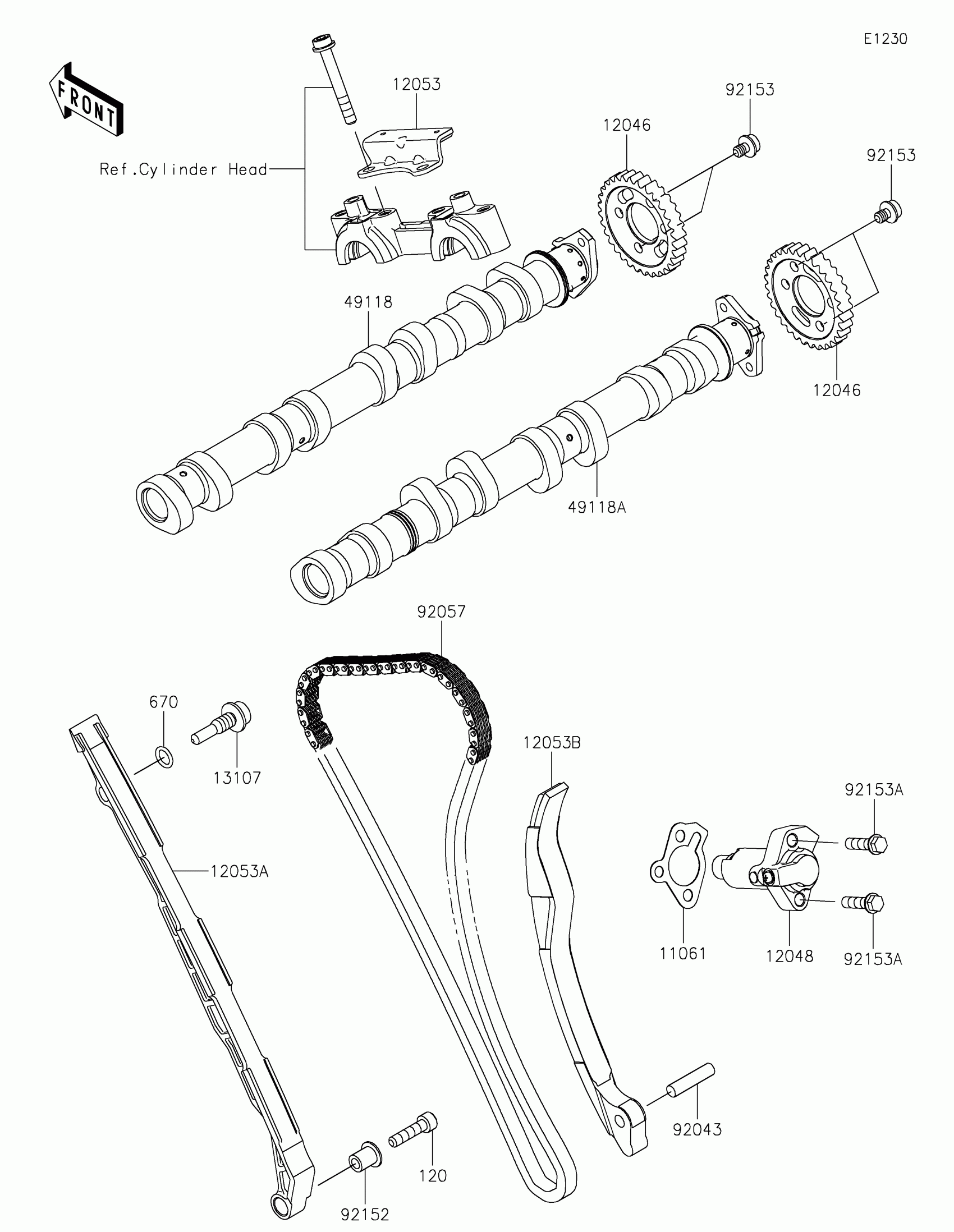

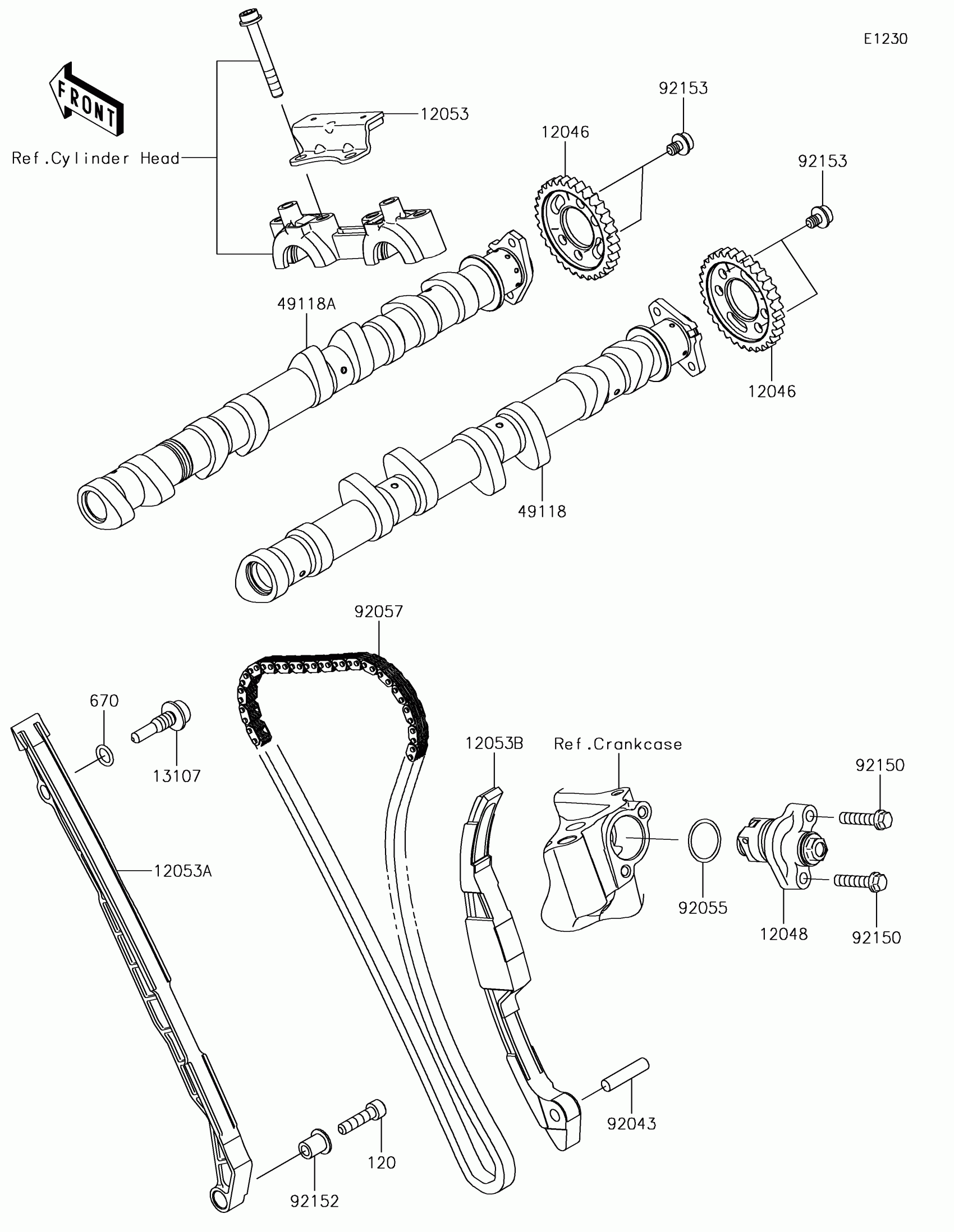

Kawasaki NINJA® ZX™-10RR Camshaft(s)/Tensioner Diagram

Description

Price

120

BOLT-SOCKET,6X25

120CA0625

Unavailable

12046

SPROCKET,32T

12046-0590

$55.88

12048

TENSIONER-ASSY

12048-0088

$129.76

12053

GUIDE-CHAIN,UPP

12053-0173

$70.99

12053A

GUIDE-CHAIN,FR

12053-0175

$70.21

12053B

GUIDE-CHAIN,RR

12053-0228

$122.82

13107

SHAFT,CHAIN GUIDE

13107-0157

$8.10

49118

CAMSHAFT-COMP,INTAKE

49118-0860

$428.75

49118A

CAMSHAFT-COMP,EXHAUST

49118-0869

$428.75

670

O RING,9MM

670D1509

$3.57

92043

PIN,7X30.7

92043-0062

$4.63

92055

RING-O,20.8X1.9

92055-0053

$3.69

92057

CHAIN,98XRH2015-126M

92057-0202

$97.13

92150

BOLT,FLANGED-SMALL,6X25

92150-1779

Unavailable

92152

COLLAR

92152-0413

$8.46

92153

BOLT,FLANGED,6X8

92153-0455

$1.81
