2018 Kawasaki Ninja® ZX™-10RR Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2018 Kawasaki Ninja® ZX™-10RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

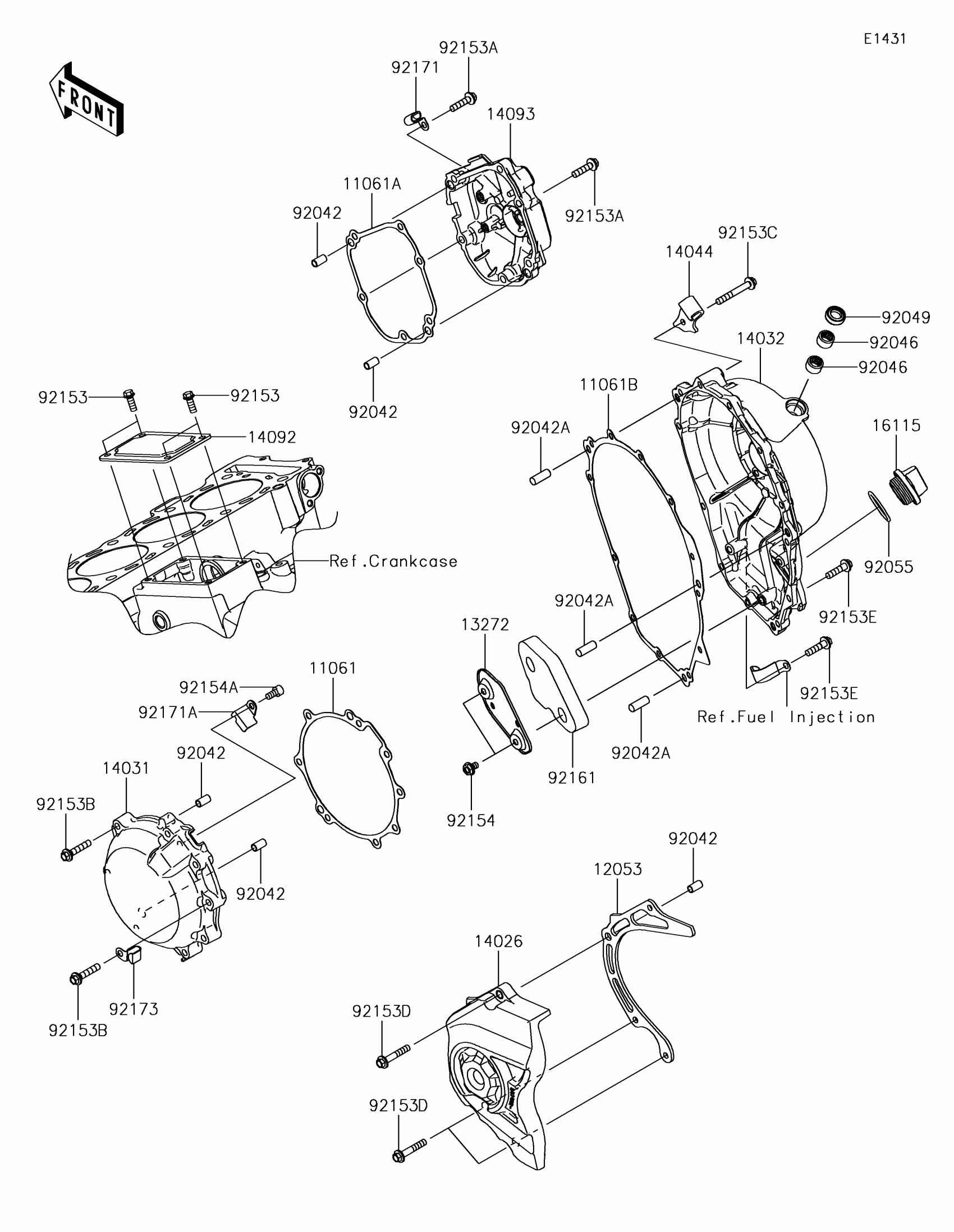

2018 Kawasaki Ninja® ZX™-10RR Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,GENERATOR COVER

11061-0441

1
Out of stock

11061A

GASKET,PULSER COVER

11061-0442

1
Out of stock

11061B

GASKET

11061-0735

1
Out of stock

12053

GUIDE-CHAIN

12053-0229

1
Out of stock

13272

PLATE

13272-0892

1
Out of stock

14026

COVER-CHAIN

14026-0124

1
Out of stock

14031

COVER-GENERATOR

14031-0615

1
Out of stock

14032

COVER-CLUTCH

14032-0635

1
Out of stock

14044

HOLDER-CABLE

14044-0566

1
Out of stock

14092

COVER,STARTER

14092-0153

1
Out of stock

14093

COVER,PULSER COVER

14093-0564

1
Out of stock

16115

CAP-OIL FILLER

16115-1009

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92042A

PIN,DOWEL,8X22

92042-044

1
Out of stock

92046

BEARING-NEEDLE,HK1210FM

92046-0034

1
Out of stock

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1
Out of stock

92153

BOLT,6X16

92153-0695

1
Out of stock

92153A

BOLT,FLANGED,6X25

92153-1569

1
Out of stock

92153B

BOLT,FLANGED,6X30

92153-1574

1
Out of stock

92153C

BOLT,FLANGED,6X45

92153-1575

1
Out of stock

92153D

BOLT,FLANGED,6X35

92153-1579

1
Out of stock

92153E

BOLT,FLANGED,6X25

92153-1716

1
Out of stock

92154

BOLT,FLANGED,6X10

92154-0492

1
Out of stock

92154A

BOLT,SOCKET,6X12

92154-1889

1
Out of stock

92161

DAMPER,CLUTCH COVER

92161-0873

1
Out of stock

92171

CLAMP

92171-0534

1
Out of stock

92171A

CLAMP

92171-0938

1
Out of stock

92173

CLAMP

92173-0082

1
Out of stock
