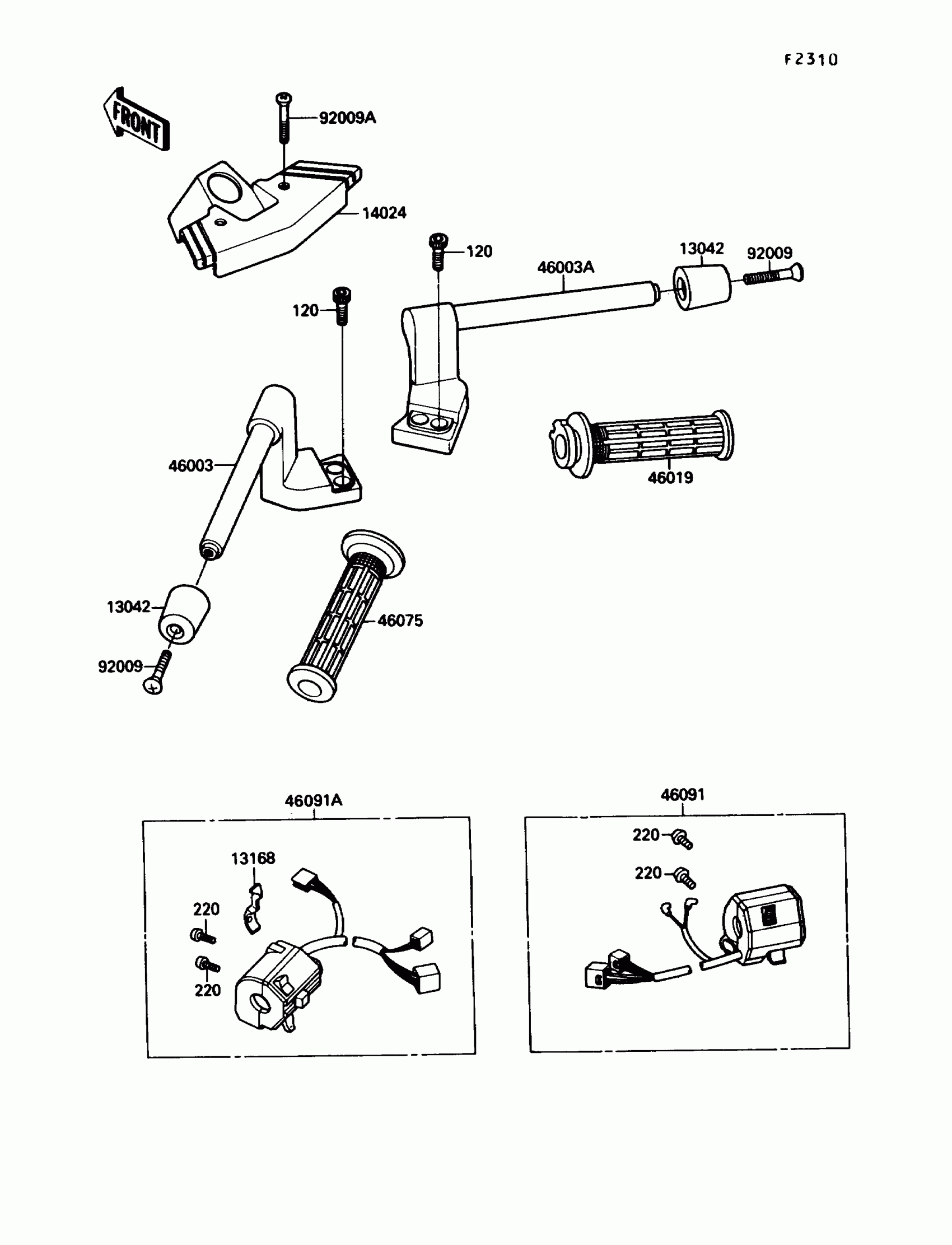

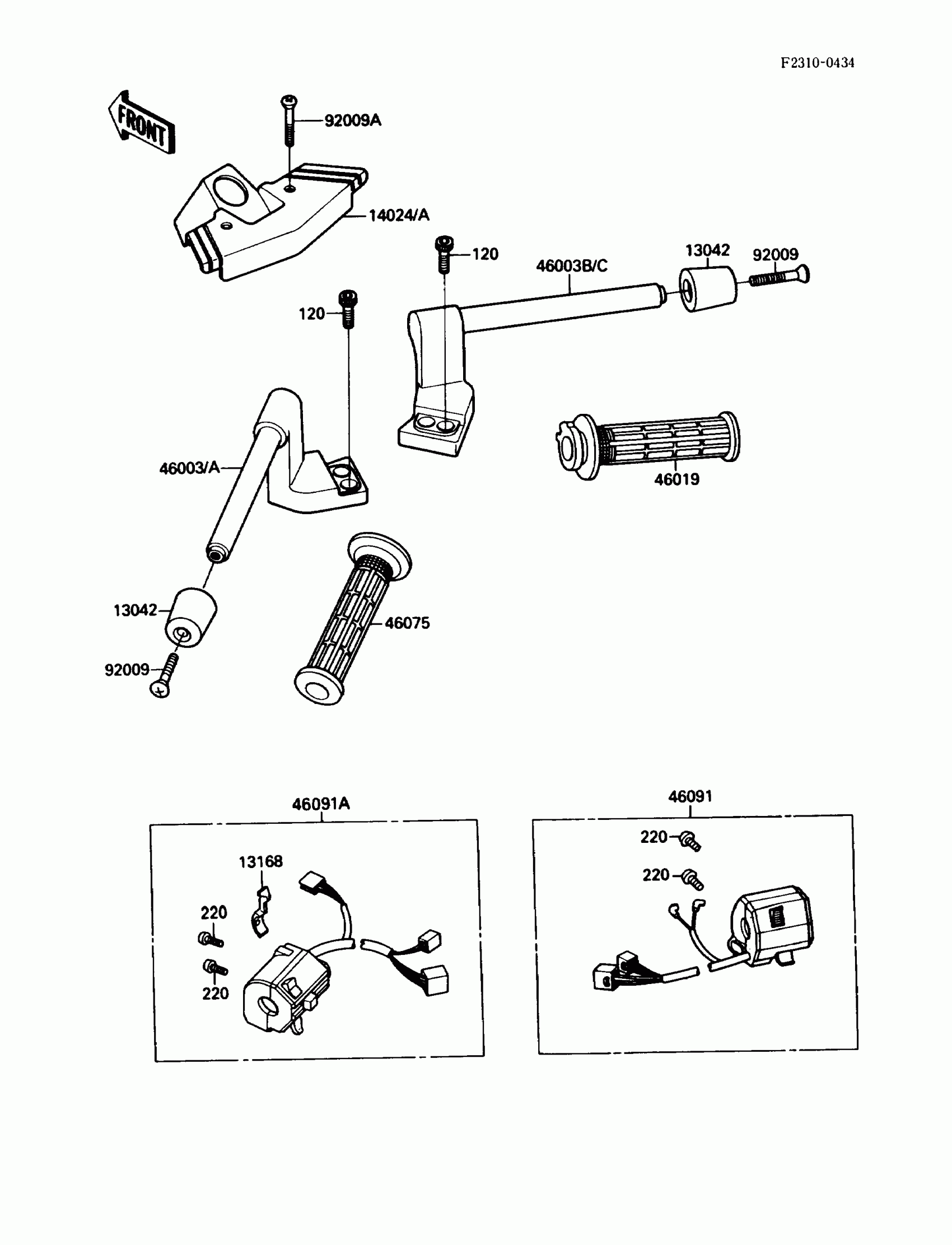

1989 Kawasaki Ninja® ZX™-10 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1989 Kawasaki Ninja® ZX™-10, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Ninja® ZX™-10 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X20

120S0820

1
Out of stock

220

SCREW-PAN-CROS

220C0520

1

$1.58

In stock

13042

WEIGHT,HANDLE

13042-1005

1

$30.18

In stock

13168

LEVER,CHOKE

13168-1374

1

$10.34

In stock

14024

COVER,HANDLE,M.BLACK

14024-1660-EA

1
Out of stock

46003

HANDLE,LH,M.BLACK

46003-1276-EA

1

$279.64

In stock

46003B

HANDLE,RH,M.BLACK

46003-1277-EA

1
Out of stock

46019

GRIP-ASSY,THROTTLE

46019-1059

1

$33.27

In stock

46075

GRIP,LH

46075-1028

1

$14.75

In stock

46091

1

$172.76

In stock

46091A

HOUSING-ASSY-CONTROL,LH

46091-1482

1
Out of stock

92009

SCREW,8X45

92009-1257

1
Out of stock

92009A

SCREW,5X40

92009-1534

1
Out of stock
