1989 Kawasaki Ninja® ZX™-10 Cables Diagram

← All diagrams

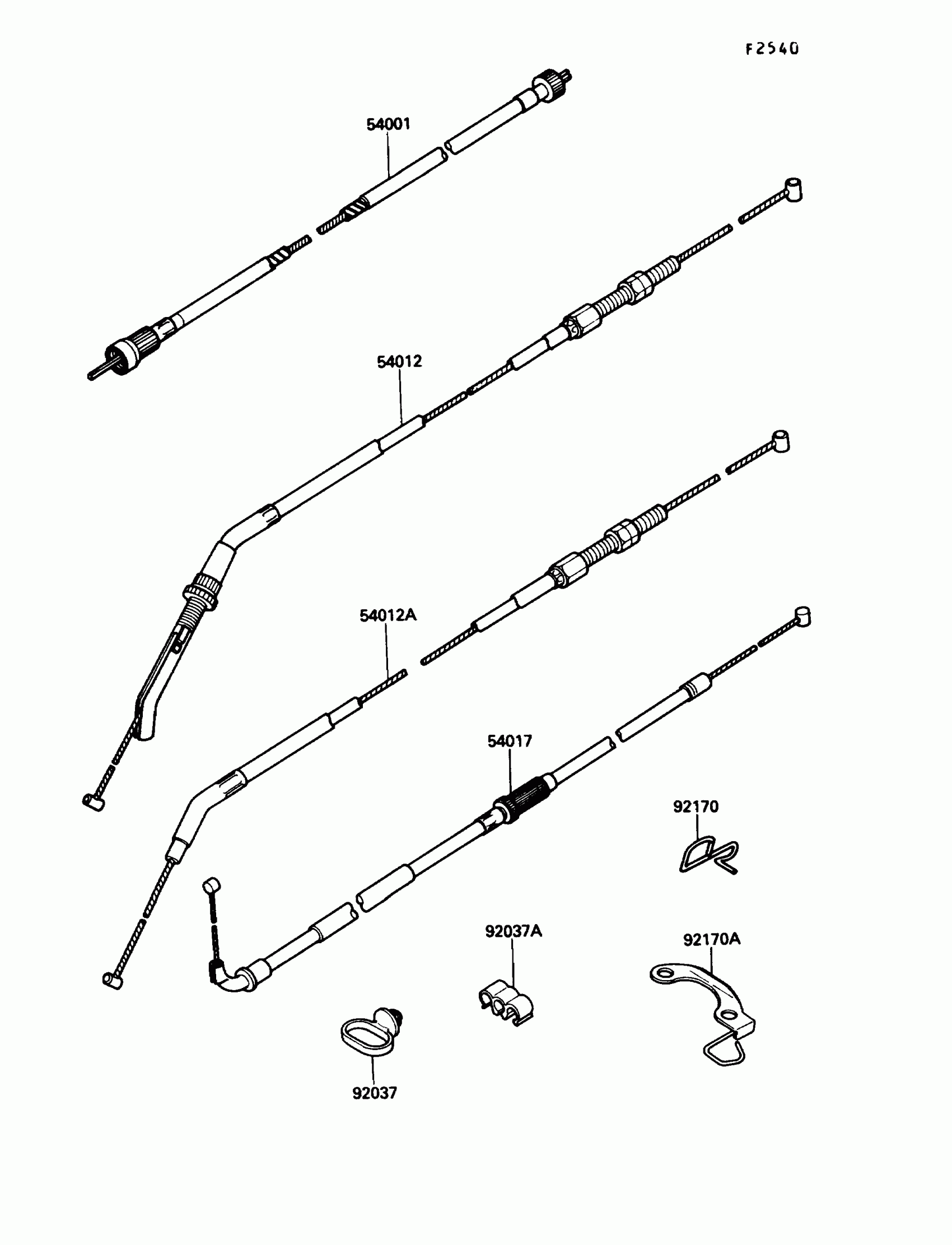

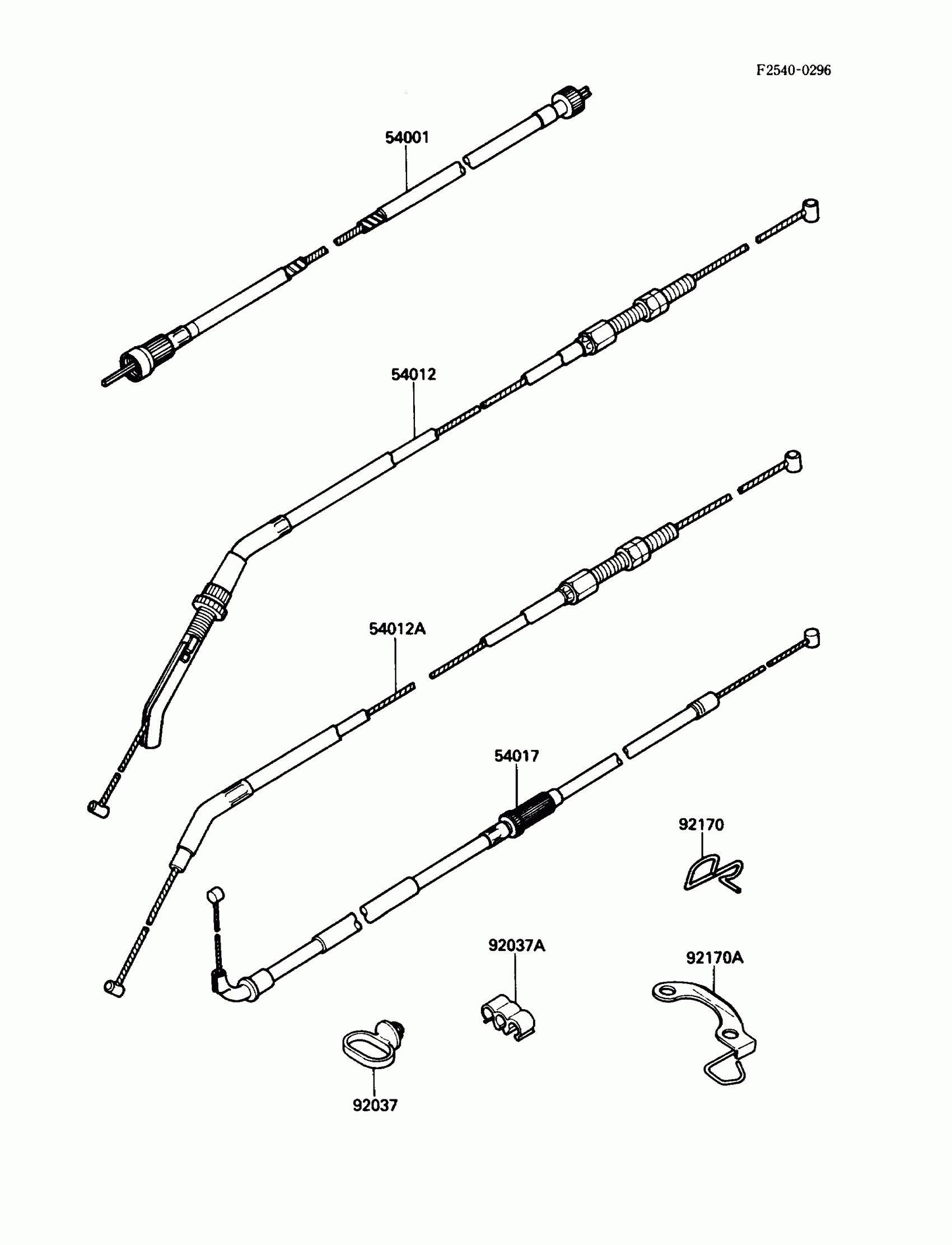

Find the part on the Cables diagram for your 1989 Kawasaki Ninja® ZX™-10, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Ninja® ZX™-10 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54001

CABLE-SPEEDOMETER

54001-1147

1

$37.23

In stock

54012

CABLE-THROTTLE,OPENING

54012-1354

1
Out of stock

54012A

CABLE-THROTTLE,CLOSING

54012-1355

1
Out of stock

54017

CABLE-STARTER

54017-1089

1

$37.15

In stock

92037

CLAMP,CABLE

92037-1459

1

$20.18

In stock

92037A

CLAMP,CABLE

92037-1697

1

$7.49

In stock

92170

CLAMP,CABLE

92170-1045

1

$4.44

In stock

92170A

CLAMP,CABLE

92170-1046

1

$13.85

In stock
