1989 Kawasaki Ninja® ZX™-10 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1989 Kawasaki Ninja® ZX™-10, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

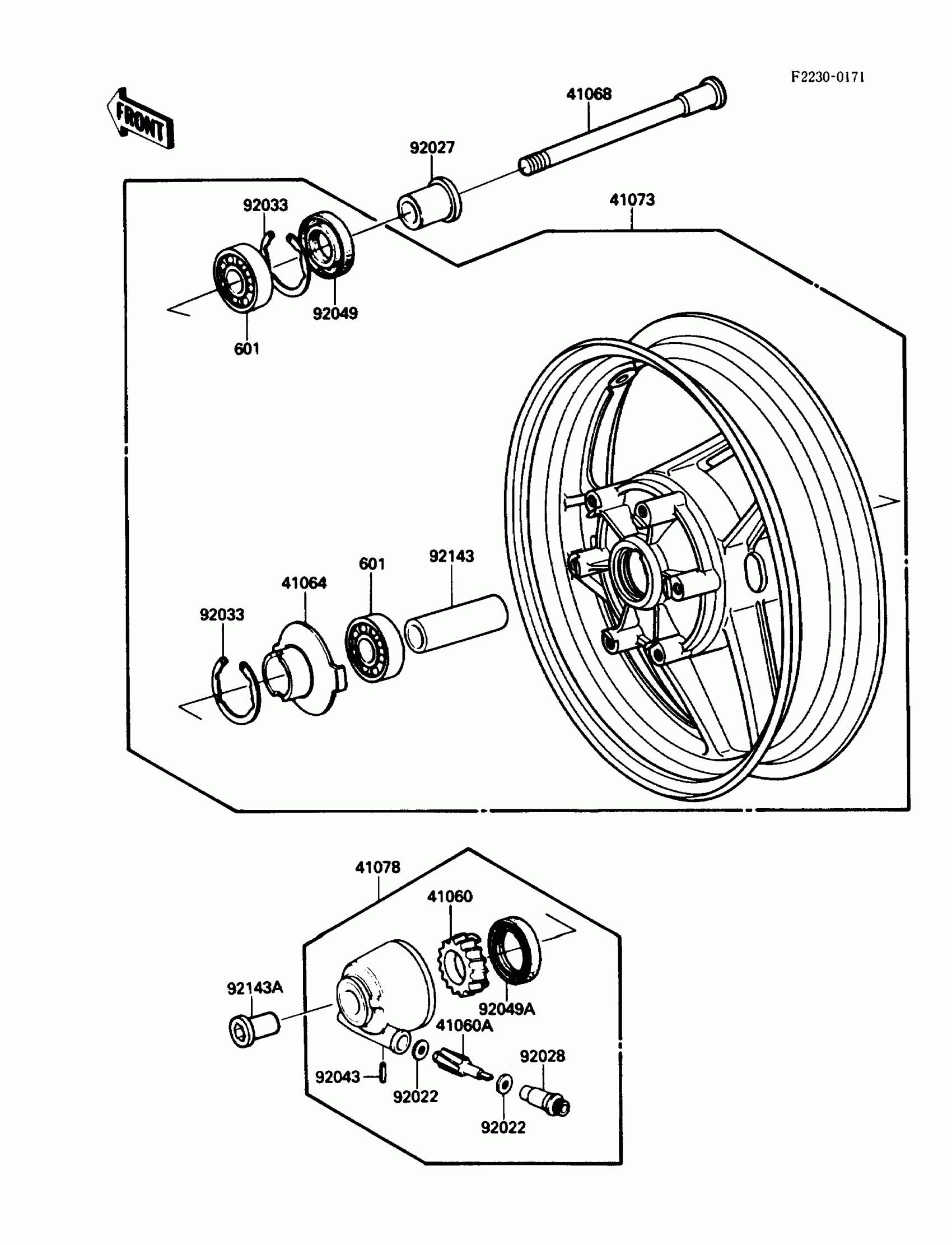

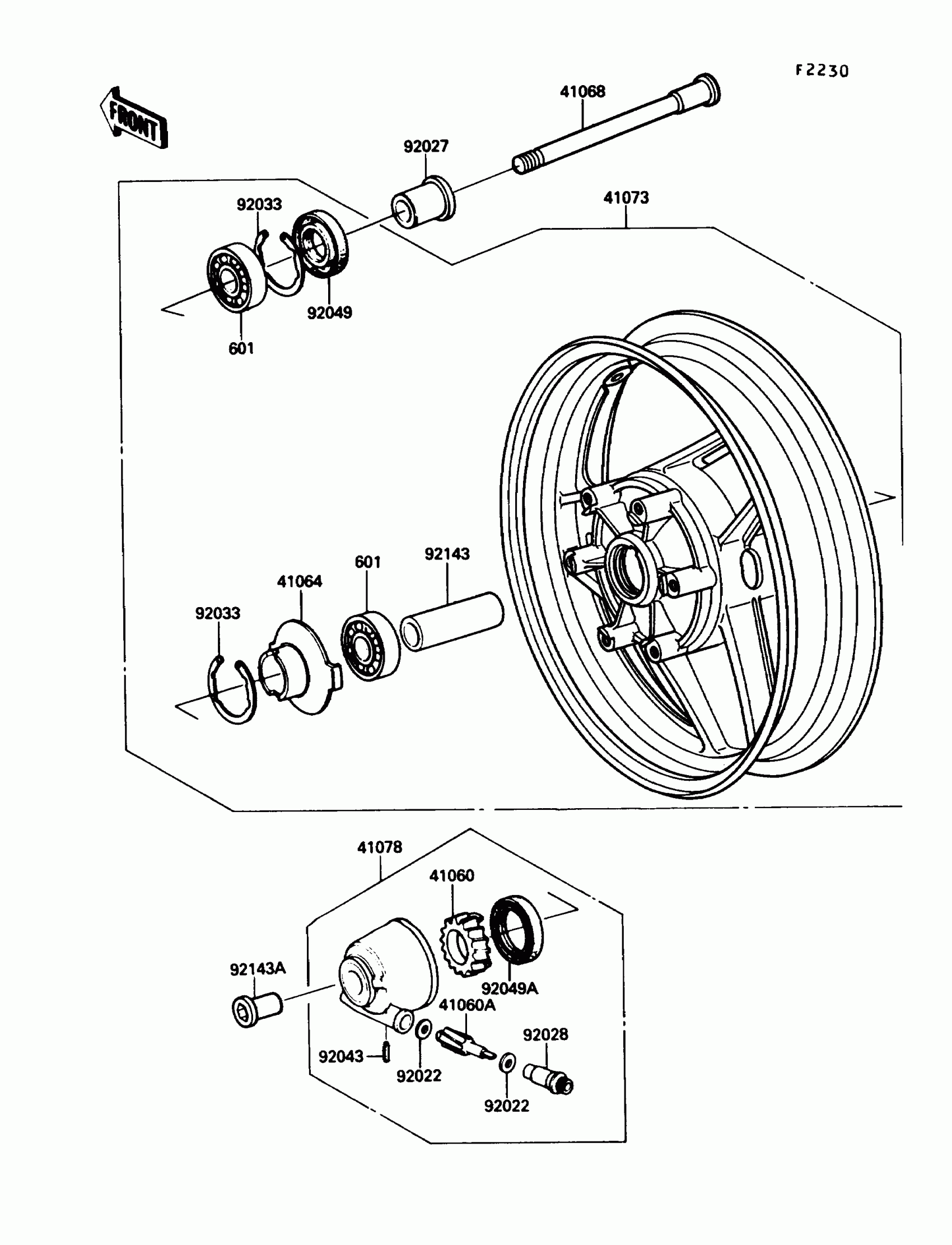

1989 Kawasaki Ninja® ZX™-10 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

1

$30.53

In stock

41060

1

$20.37

In stock

41060A

GEAR-METER SCREW,9T

41060-1123

1

$19.10

In stock

41064

RECEIVER-SPEEDOMETER

41064-1054

1
Out of stock

41068

AXLE,FR

41068-1255

1

$85.47

In stock

41073

1

$1,251.02

In stock

41078

1

$121.46

In stock

92022

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

92027

COLLAR,L=31

92027-1263

1
Out of stock

92028

BUSHING,SPEEDOMETER

92028-1066

1

$8.95

In stock

92033

RING-SNAP,47MM

92033-1042

1

$3.36

In stock

92043

PIN,SPRING

41082-001

1

$3.53

In stock

92049

SEAL-OIL,BJN28475

92049-1056

1
Out of stock

92049A

SEAL-OIL,BJN30427-C3

92049-1057

1
Out of stock

92143

COLLAR,17.2X25X72

92143-1197

1
Out of stock

92143A

1

$33.59

In stock
