1989 Kawasaki Ninja® ZX™-10 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1989 Kawasaki Ninja® ZX™-10, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

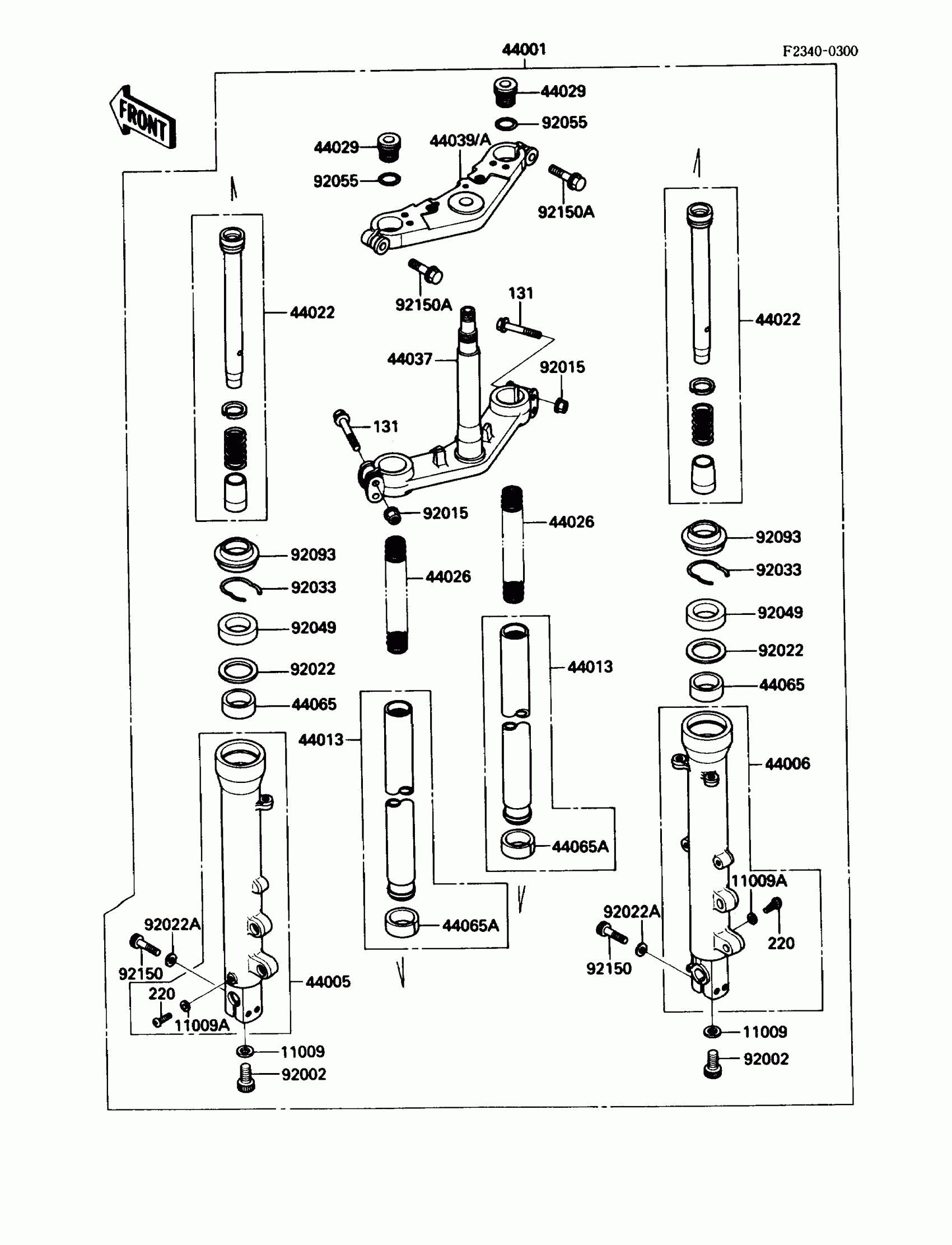

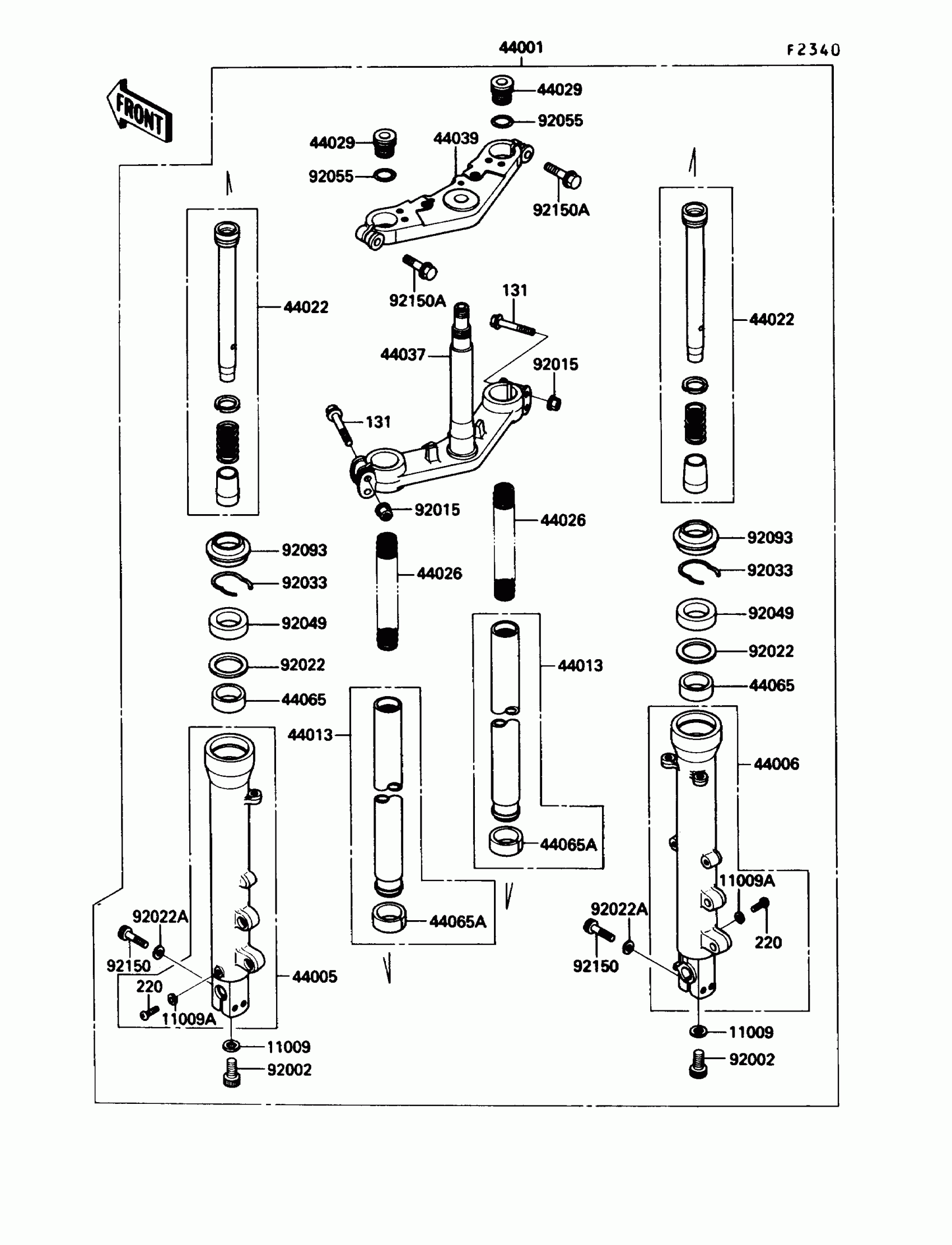

1989 Kawasaki Ninja® ZX™-10 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

131

BOLT-FLANGED

131G0850

1
Out of stock

220

SCREW-PAN-CROS,4X8

220E0408

1
Out of stock

11009

1

$4.41

In stock

11009A

1

$4.12

In stock

44001

FORK-FRONT,BLACK

44001-1688-10

1

$3,435.90

In stock

44005

1

$462.84

In stock

44006

1

$462.84

In stock

44013

PIPE-FORK INNER

44013-1281

1

$453.99

In stock

44022

CYLINDER-FORK

44022-1231

1

$134.92

In stock

44026

SPRING-FRONT FORK

44026-1400

1

$83.56

In stock

44029

SEAT-FORK SPRING

44029-1133

1

$41.48

In stock

44037

HOLDER-FORK UNDER

44037-1233

1

$611.62

In stock

44039

1

$301.59

In stock

44065

BUSHING-FRONT FORK

44065-1085

1

$34.45

In stock

44065A

1

$34.45

In stock

92002

BOLT,FORK DRAIN

92002-1650

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1485

1

$4.46

In stock

92022

1

$6.82

In stock

92022A

WASHER

92022-1598

1

$8.20

In stock

92033

RING-SNAP

92033-1036

1

$5.15

In stock

92049

SEAL-OIL,FORK OUTER

92049-1273

1
Out of stock

92055

RING-O

92055-1321

1

$1.19

In stock

92093

1

$20.09

In stock

92150

BOLT,SOCKET,8X40

92150-1194

1

$2.29

In stock

92150A

BOLT,FLANGED,10X45

92150-1210

1

$9.31

In stock
