1985 Kawasaki Ninja® Rocker Arms/valves Diagram

← All diagrams

Find the part on the Rocker Arms/valves diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

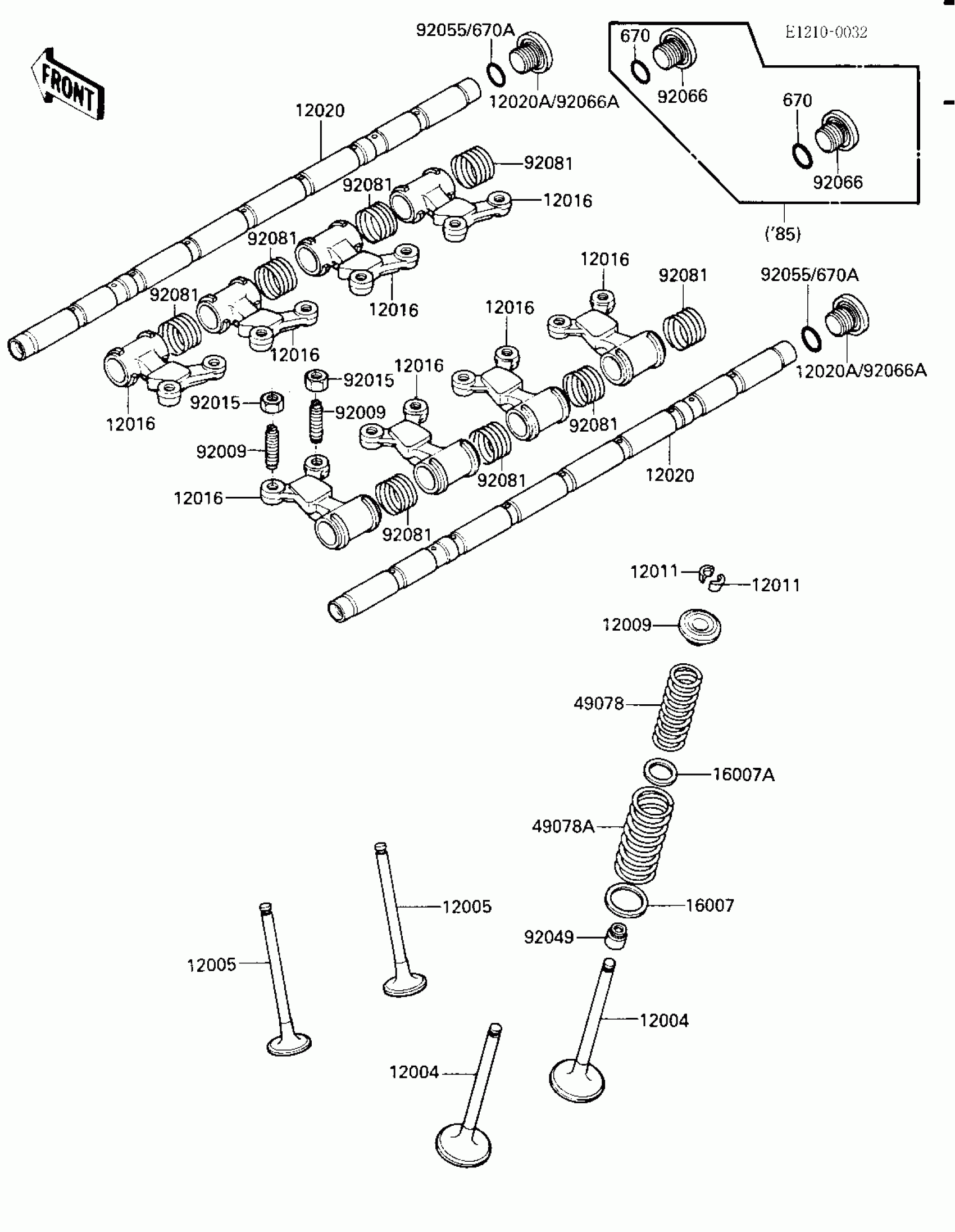

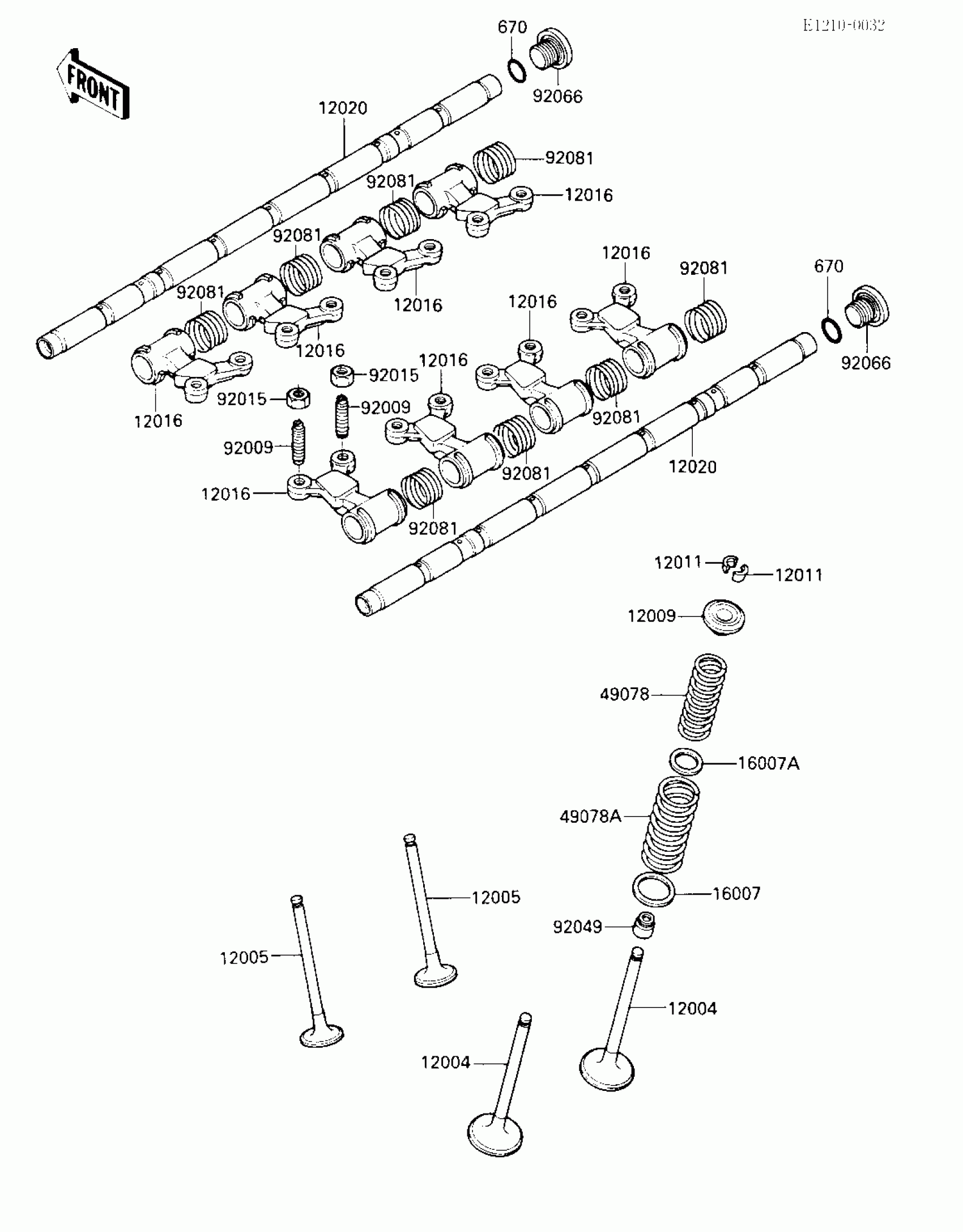

1985 Kawasaki Ninja® Rocker Arms/valves Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-1085

1

$48.27

In stock

12005

VALVE-EXHAUST

12005-1052

1

$67.45

In stock

12009

1

$8.61

In stock

12011

COLLET

12011-1003

1

$3.69

In stock

12016

ARM-ROCKER

12016-1051

1
Out of stock

12020

SHAFT-ROCKER,L=343

12020-1051

1

$93.26

In stock

16007

1

$4.88

In stock

16007A

1

$4.85

In stock

49078

1

$15.64

In stock

49078A

1

$16.63

In stock

92009

SCREW,7MM

92009-1279

1
Out of stock

92015

NUT,7MM

92015-1325

1
Out of stock

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

1
Out of stock

92066

PLUG,14X11.5

92066-1192

1

$23.15

In stock

92081

SPRING,ROCKER ARM

92081-1636

1

$14.90

In stock

670

O RING,15MM

670B2015

1

$1.25

In stock
