1985 Kawasaki Ninja® Crankcase Diagram

← All diagrams

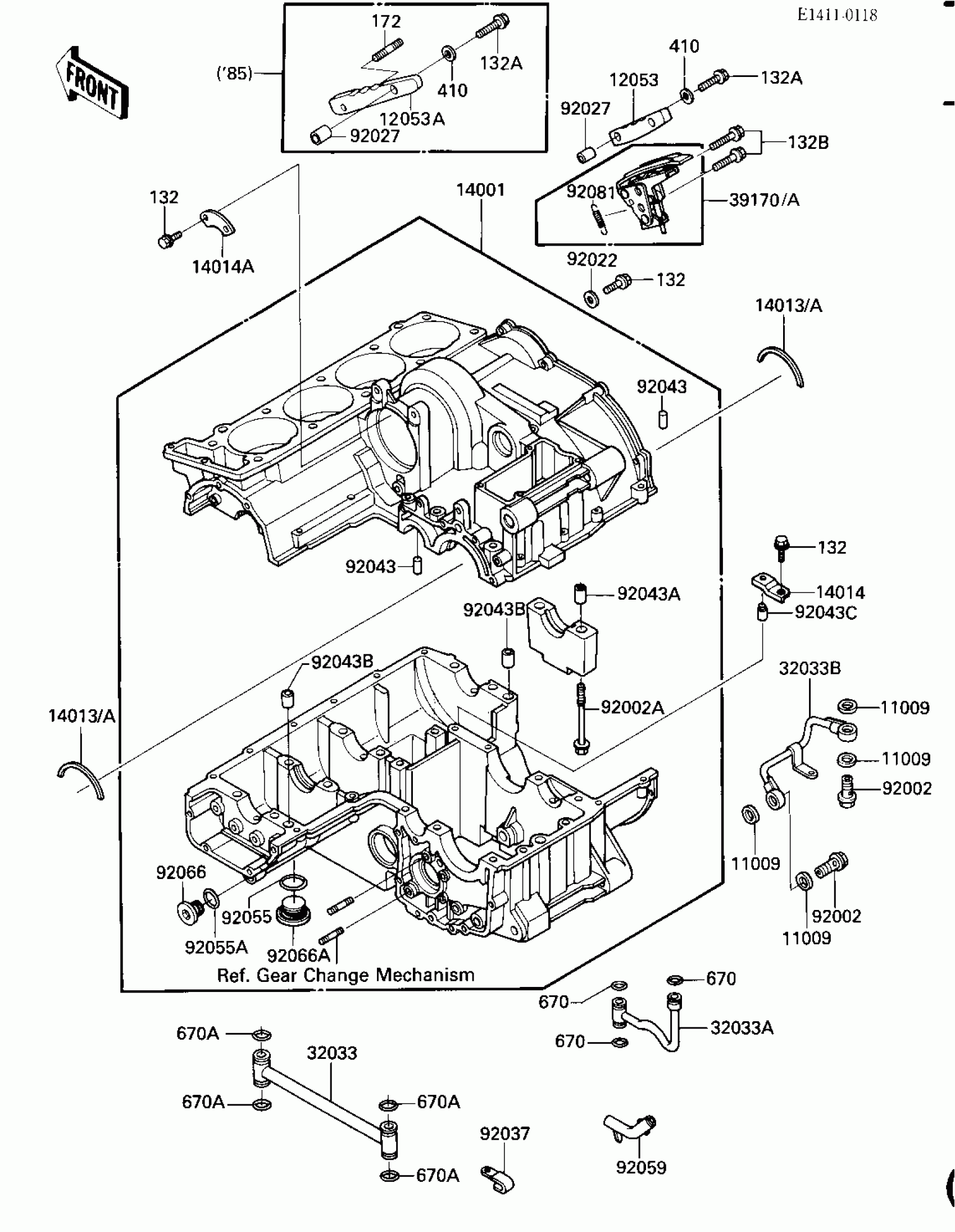

Find the part on the Crankcase diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Kawasaki Ninja® Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,12.5X18X1.5

11009-1376

1

$1.56

In stock

12053A

GUIDE-CHAIN

12053-1138

1
Out of stock

14001

SET-CRANKCASE

14001-5171

1
Out of stock

14013

RING-POSITION,T=1.98

14013-1005

1
Out of stock

14013A

RING-POSITION

14013-1006

1
Out of stock

14014

PLATE-POSITION,BALANC

14014-1052

1
Out of stock

14014A

PLATE-POSITION

14014-1056

1
Out of stock

32033

PIPE,MAIN GALLARY

32033-1201

1

$52.23

In stock

32033A

PIPE

32033-1202

1

$39.12

In stock

32033B

PIPE

32033-1961

1

$57.25

In stock

39170A

TENSIONER-COMP

39170-1053

1

$222.69

In stock

92002

BOLT,BANJO,12X23

92001-1871

1

$16.05

In stock

92002A

BOLT,8X80

92002-1649

1
Out of stock

92022

WASHER,6X19.5X2

92022-1517

1

$1.90

In stock

92027

COLLAR,6.2X8.1X15

92027-1079

1

$3.16

In stock

92037

CLAMP,L=45

92037-1539

1

$4.42

In stock

92043

PIN,DOWEL,6X16

92042-016

1

$3.97

In stock

92043A

PIN,DOWEL,12X14

92042-031

1

$5.21

In stock

92043B

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

92043C

PIN,BALANCER

92043-1242

1

$6.25

In stock

92055

RING-O,25.7X2.4

92055-1136

1

$3.97

In stock

92055A

RING-O,20X2

92055-1146

1

$6.82

In stock

92059

TUBE

92059-1508

1
Out of stock

92066

1

$9.11

In stock

92066A

PLUG,25X8

92066-1161

1

$10.19

In stock

92081

SPRING

92081-1668

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

132A

BOLT-FLANGED-SMALL

132G0625

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X30

132G0630

1
Out of stock

172

BOLT-STUD,6X16

172G0616

1
Out of stock

410

1

$1.19

In stock

670

O RING,9MM

670D1509

1

$3.72

In stock

670A

O RING,16MM

670D2016

1

$1.44

In stock
