1985 Kawasaki Ninja® Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

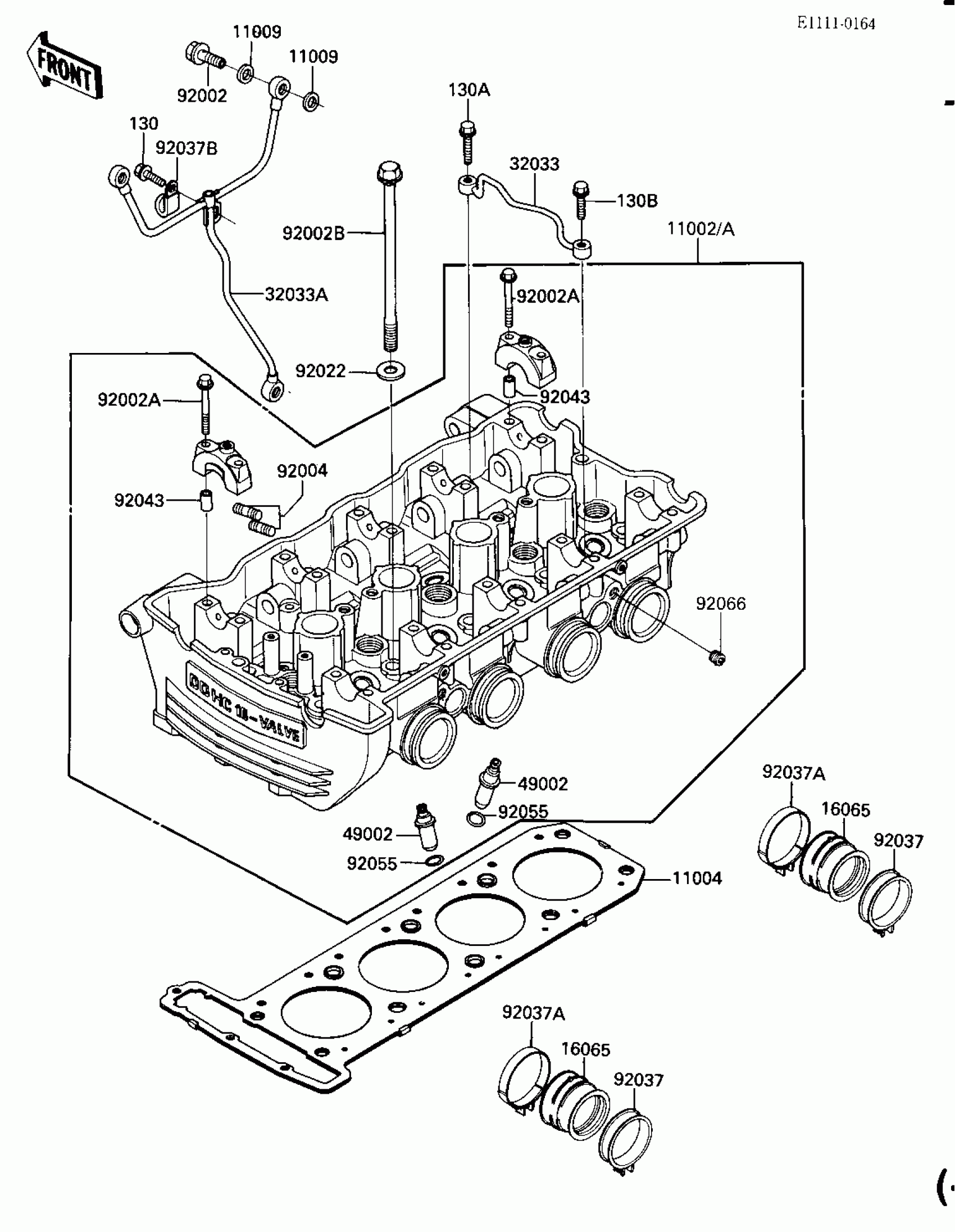

1985 Kawasaki Ninja® Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11002

HEAD-ASSY-CYLINDER

11002-1153

1
Out of stock

11002A

HEAD-ASSY-CYLINDER (Canada)

11002-1163

1
Out of stock

11004

GASKET-HEAD

11004-1111

1
Out of stock

11009

GASKET,12.5X18X1.5

11009-1376

1

$1.56

In stock

16065

HOLDER-CARBURETOR

16065-1108

1

$41.09

In stock

32033

PIPE,CYLINDER HEAD

32102-1423

1

$43.71

In stock

32033A

PIPE,OIL PAN-HEAD

32033-1850

1

$115.69

In stock

49002

GUIDE-VALVE

49002-1052

1

$38.92

In stock

92002

BOLT,BANJO,12X23

92001-1871

1

$16.05

In stock

92002A

BOLT,6X46

92001-1872

1

$3.43

In stock

92002B

BOLT,10X164

92002-1943

1
Out of stock

92004

STUD,8X28

92004-1110

1
Out of stock

92022

WASHER,10.5X20X1.6

92022-1591

1

$3.88

In stock

92037

CLAMP,ID=53,BLACK

92037-1304

1

$8.16

In stock

92037A

CLAMP

92037-1523

1

$9.78

In stock

92037B

CLAMP,L=45

92037-1539

1

$4.42

In stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92055

RING-O,11.7MM

92055-1265

1

$8.35

In stock

92066

PLUG,PT1/8X7

92066-1201

1

$5.32

In stock

130

BOLT-FLANGED

130C0608

1
Out of stock

130A

BOLT-FLANGED,6X30

130G0630

1
Out of stock

130B

BOLT-FLANGED,6X25

130J0625

1
Out of stock
