1985 Kawasaki Ninja® Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

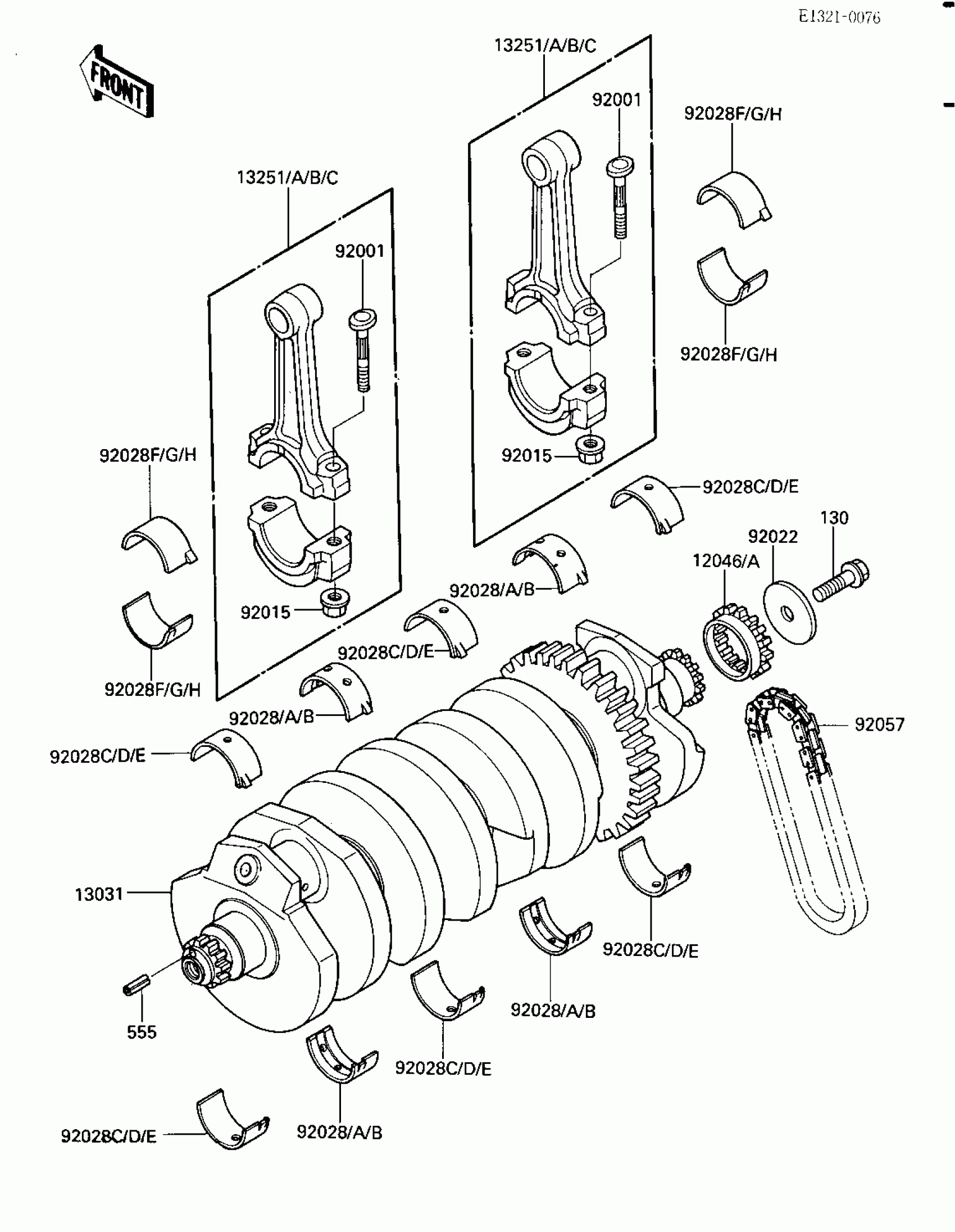

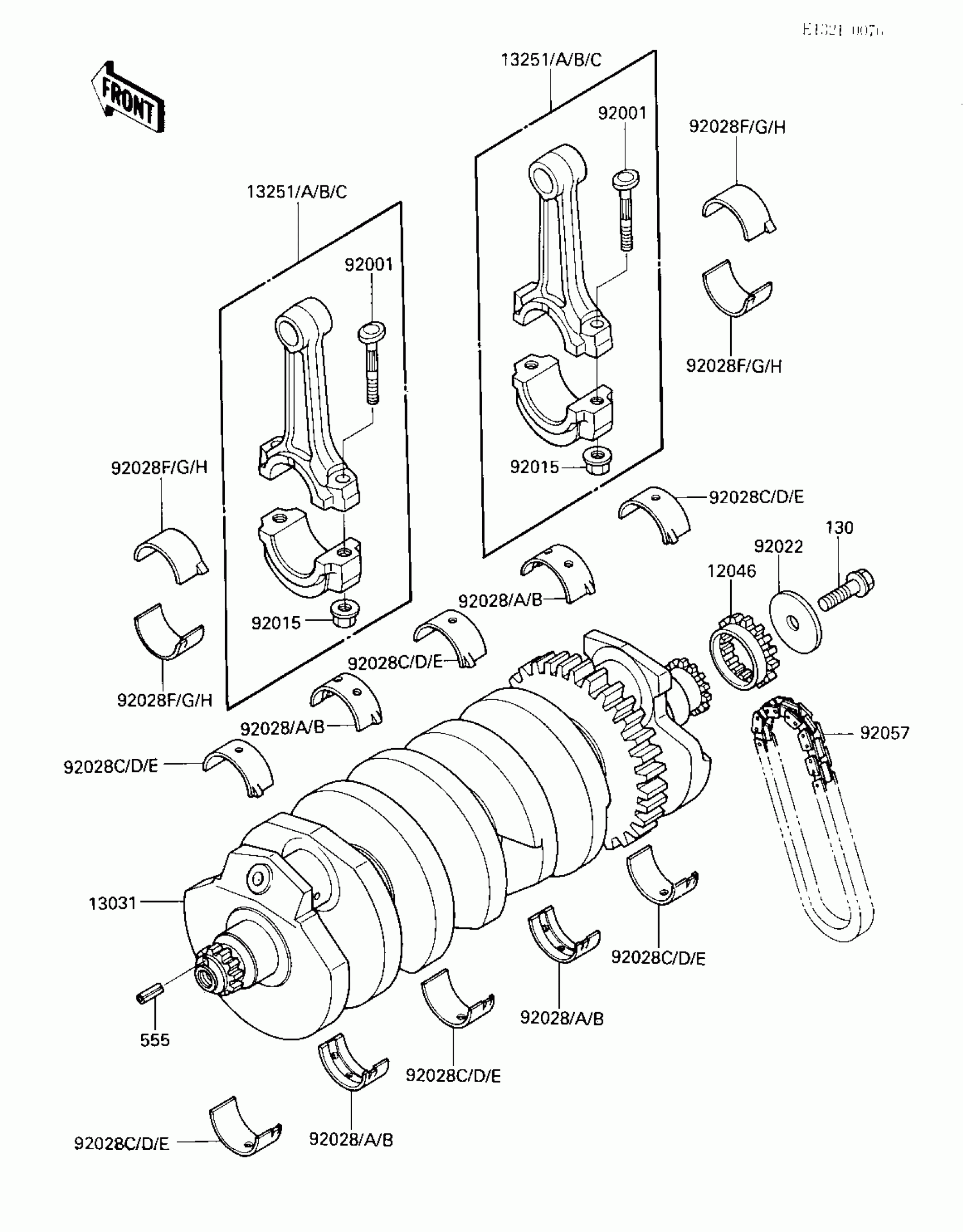

1985 Kawasaki Ninja® Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046A

SPROCKET,21T

12046-1067

1
Out of stock

13031

CRANKSHAFT-COMP

13031-1332

1
Out of stock

13251

ROD-ASSY-CONNECTING,J

13251-1052-JJ

1
Out of stock

13251A

ROD-ASSY-CONNECTING,J

13251-1052-JJ

1
Out of stock

13251B

ROD-ASSY-CONNECTING,J

13251-1052-JJ

1
Out of stock

13251C

ROD-ASSY-CONNECTING,J

13251-1052-JJ

1
Out of stock

92001

1

$9.27

In stock

92015

NUT,FLANGED,8MM

92015-1311

1
Out of stock

92022

WASHER,8.5X36X4

92022-1633

1

$7.56

In stock

92028

—

$13.29

In stock

92028A

—

$13.29

In stock

92028B

—

$13.29

In stock

92028C

—

$24.92

In stock

92028D

—

$23.88

In stock

92028E

—

$23.88

In stock

92028F

—

$21.51

In stock

92028G

—

$8.19

In stock

92028H

BUSHING,CONNECTING RO

92028-1323

—
Out of stock

92057

CHAIN,GENERATOR

92057-1292

1
Out of stock

130

BOLT-FLANGED,8X25

130G0825

1
Out of stock

555

PIN-SPRING

555A0410

1
Out of stock
