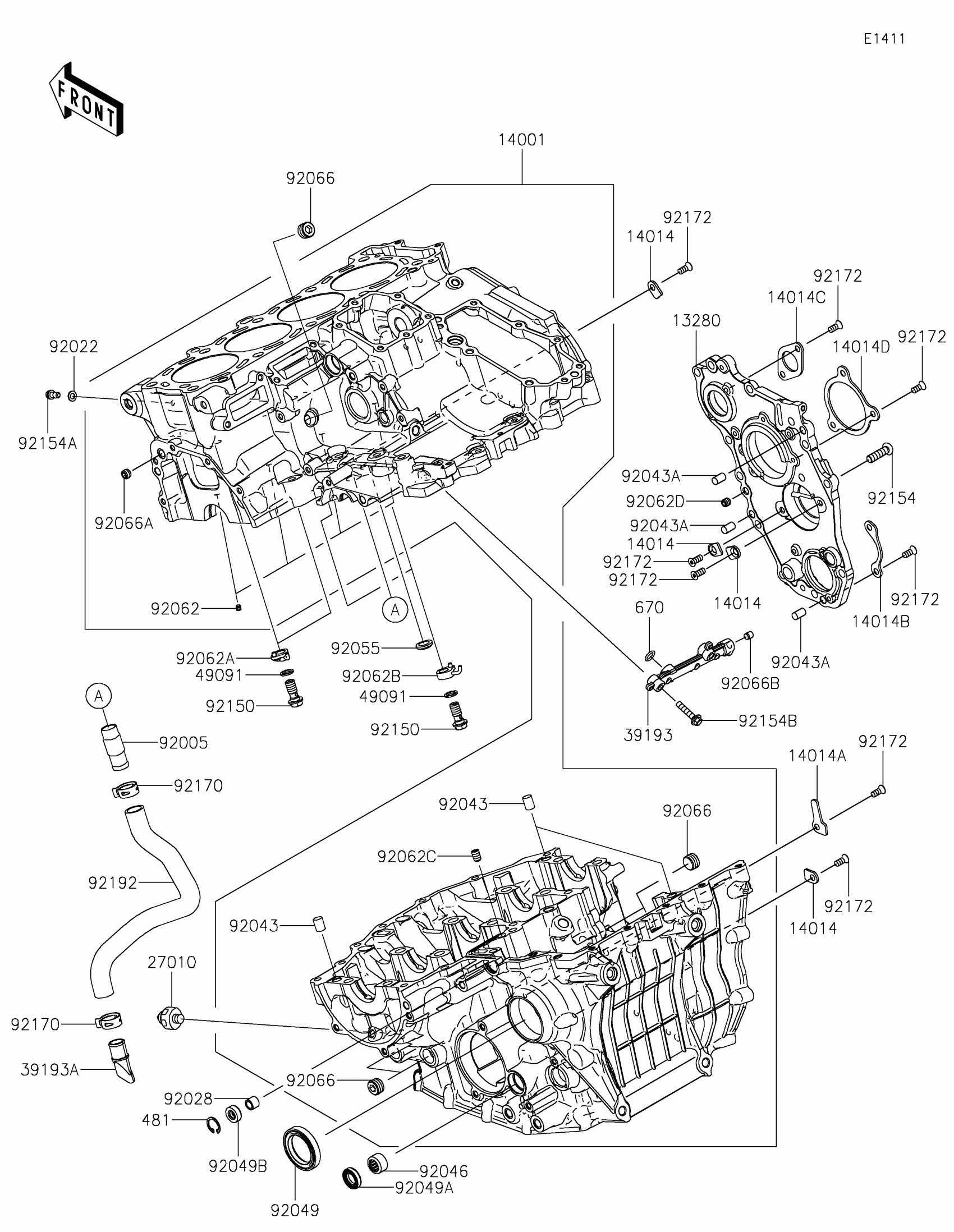

Kawasaki NINJA H2®R ABS Crankcase Diagram

#

Description
Price

13280

HOLDER,TRANSMISSION

13280-0799

$284.04

14001

SET-CRANKCASE

14001-0742

$2,489.14

14014

PLATE-POSITION

14014-0569

$7.24

14014A

PLATE-POSITION

14014-0570

$14.86

14014B

PLATE-POSITION,CHANGE DRUM

14014-0571

$16.29

14014C

PLATE-POSITION,COUNTER SHAFT

14014-0572

$18.17

14014D

PLATE-POSITION

14014-0575

$24.02

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

39193

PIPE-OIL

39193-0581

$161.01

39193A

PIPE-OIL

39193-0582

$21.81

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92005

FITTING

92005-0773

$20.39

92022

WASHER,6.2X11X1

92022-304

$2.76

92028

BUSHING,8X12X10

92028-1750

$7.17

92043

PIN,10X14

92043-1506

$2.30

92043A

PIN,8X14

92043-1567

$1.62

92046

BEARING-NEEDLE,HK1412FM

92046-0043

$12.99

92049

SEAL-OIL,TC 35X50X8

92049-1452

$10.44

92049A

SEAL-OIL,TC14245

92049-1520

$10.54

92049B

SEAL-OIL

92049-1566

$5.84

92055

RING-O

92055-0832

$2.11

92062

NOZZLE

92062-0004

$4.00

92062A

NOZZLE

92062-0027

$70.30

92062B

NOZZLE

92062-0028

$70.30

92062C

NOZZLE

92062-0031

$15.08

92062D

NOZZLE

92062-0032

$14.17

92066

PLUG

92066-0831

$4.26

92066A

PLUG,PT1/8X7

92066-0863

$5.15

92066B

PLUG,OIL LINE,7.2X8

92066-1012

$4.65

92150

BOLT,BANJO,10X23

92150-1641

$10.80

92154

BOLT,TORX,8X28

92154-0415

$1.89

92154A

BOLT,SOCKET,6X12

92154-1453

$1.10

92154B

BOLT,FLANGED,6X28

92154-1845

$1.81

92170

CLAMP

92170-1640

$1.88

92172

SCREW,TORX,6X14

92172-0906

$1.88

92192

TUBE,BREATHER DRAIN

92192-1437

$88.94

481

CIRCLIP-TYPE-C,18MM

481J1800

$3.85

670

O RING,9.8X1.9

670B1510

$3.29
