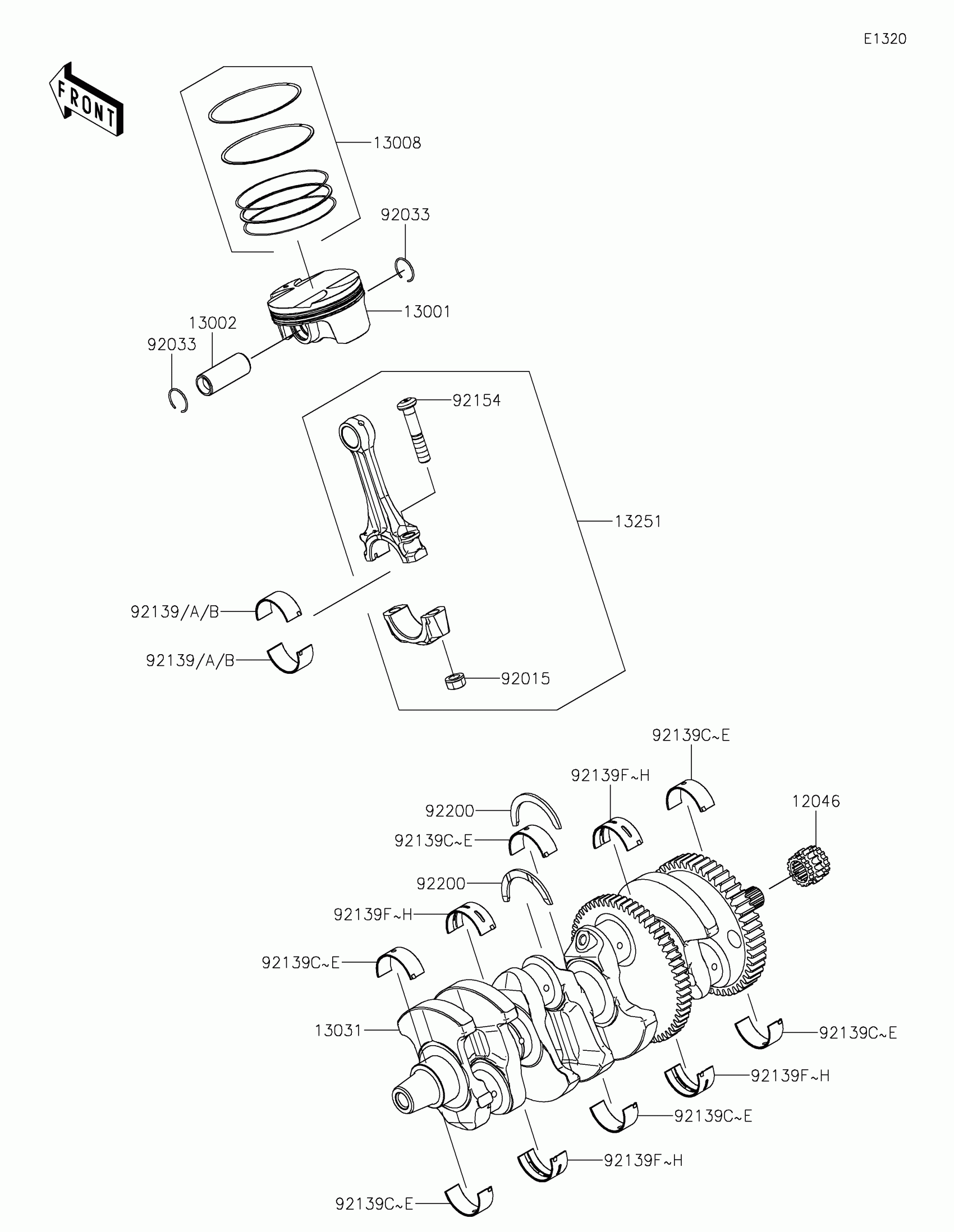

Kawasaki NINJA H2®R ABS Crankshaft/Piston(s) Diagram

#

Description
Price

12046

SPROCKET,16T

12046-0033

$39.00

13001

PISTON-ENGINE

13001-0764

$116.57

13002

PIN-PISTON

13002-0043

$43.89

13008

RING-SET-PISTON

13008-0560

$67.14

13031

CRANKSHAFT-COMP

13031-0952

$1,320.14

13251

ROD-ASSY-CONNECTING,I

13251-0740-II

$217.70

92015

NUT,CONNECTING ROD

92015-1559

$4.67

92033

RING-SNAP,20.5X1.2

92033-1099

$0.55

92139

BUSHING,CON-ROD,BLUE

92139-0818

$25.20

92139A

BUSHING,CON-ROD,BLACK

92139-0819

Unavailable

92139B

BUSHING,CON-ROD,BROWN

92139-0820

Unavailable

92139C

BUSHING,#1,BLUE

92139-0821

$21.74

92139D

BUSHING,#1,BLACK

92139-0822

Unavailable

92139E

BUSHING,#1,BROWN

92139-0823

Unavailable

92139F

BUSHING,#2,BLUE

92139-0824

$25.20

92139G

BUSHING,#2,BLACK

92139-0825

Unavailable

92139H

BUSHING,#2,BROWN

92139-0826

Unavailable

92154

BOLT,CON-ROD,9X47.5

92154-3883

$15.36

92200

WASHER,T=2.5

92200-0744

$8.49
