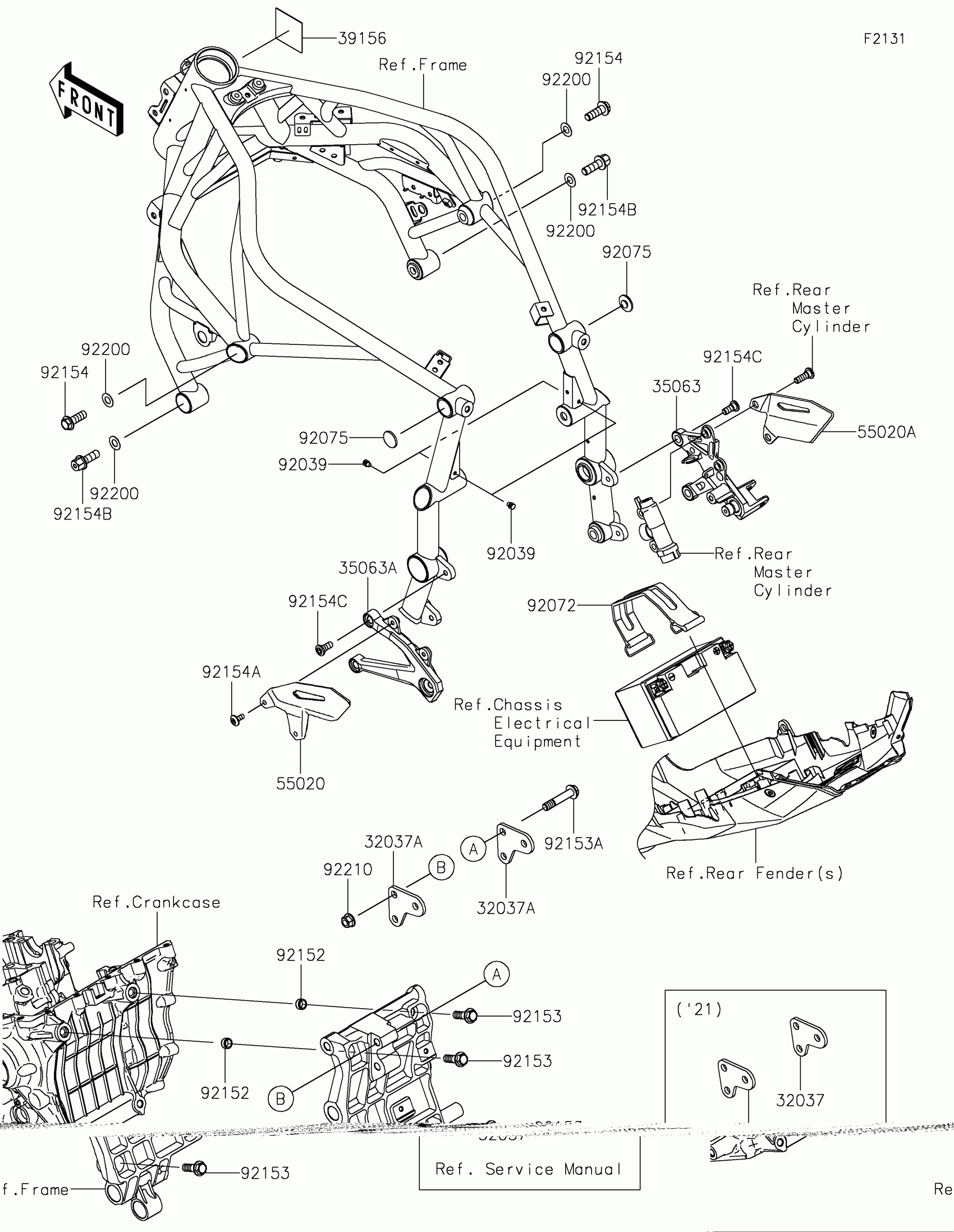

Kawasaki NINJA H2®R ABS Frame Fittings Diagram

Description

Price

32037A

BRACKET-SHOCKABSORBER

32037-0464

$53.17

35063

STAY,STEP,RH,F.W.M.GRAY

35063-0994-46T

$278.70

35063A

STAY,STEP,LH,F.W.M.GRAY

35063-1308-46T

$278.70

39156

PAD,50X50X0.5

39156-2132

$3.27

55020

GUARD,HEEL,LH

55020-1835

$93.76

55020A

GUARD,HEEL,RH

55020-1836

$93.76

92039

RIVET,PLASTI

92039-0773

$1.10

92072

BAND,L=150

92072-1338

$14.24

92075

DAMPER,RUBBER

92075-261

$3.85

92152

COLLAR,DOWEL PIN

92152-0679

$5.80

92153

BOLT,FLANGED,10X30

92153-0801

$3.16

92153A

BOLT,FLANGED,10X51

92153-1545

$7.61

92154

BOLT,FLANGED,10X30

92154-0543

$7.18

92154A

BOLT,SOCKET,6X14

92154-0745

$1.66

92154B

BOLT,FLANGED,10X30

92154-1566

$68.51

92154C

BOLT,SOCKET8X20

92154-1711

$1.68

92200

WASHER,10.2X20X0.5

92200-1732

$9.14

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90
