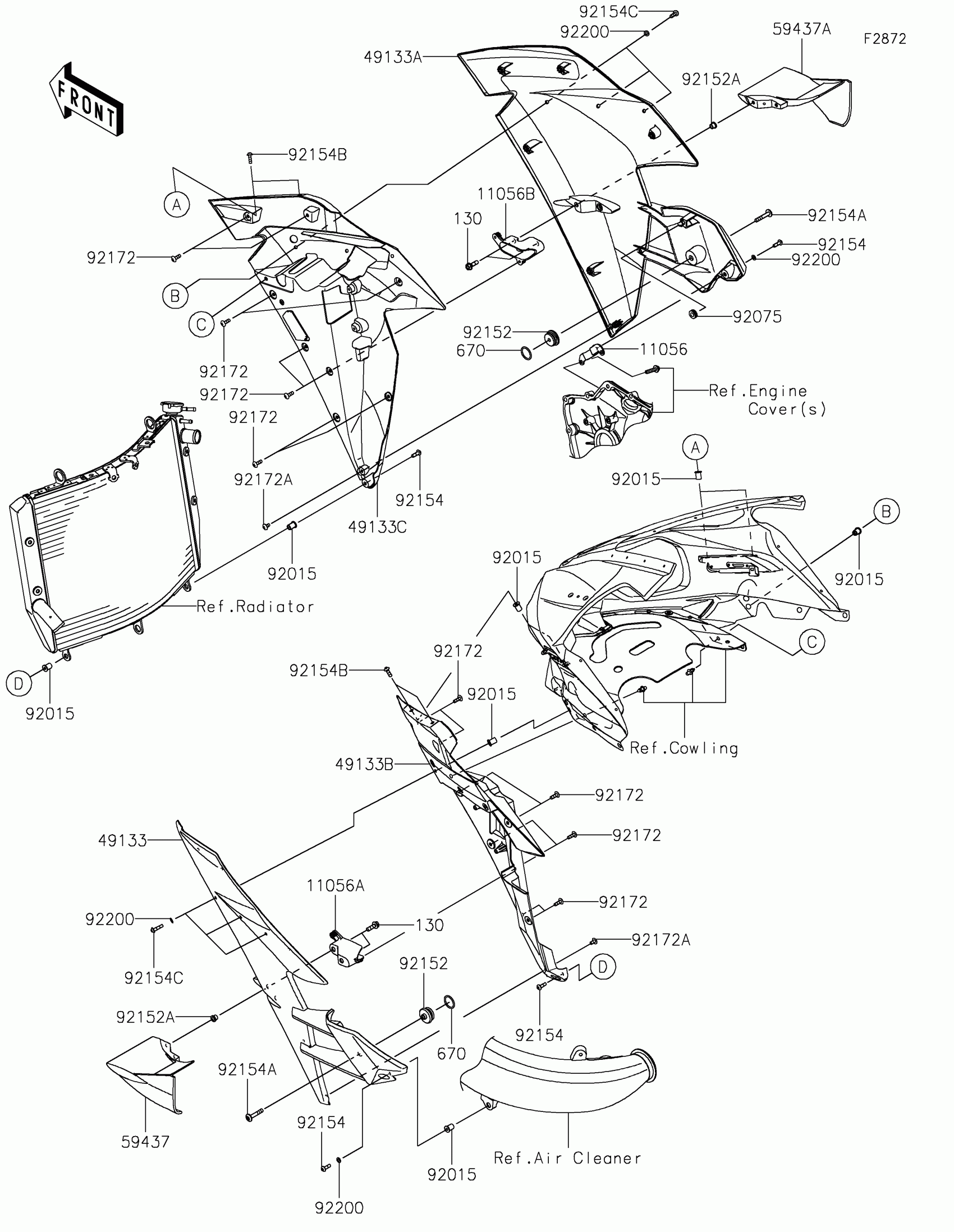

Kawasaki NINJA H2®R ABS Cowling Lowers Diagram

Description

Price

11056

BRACKET,CLUTCH COVER

11056-7020

$7.69

11056A

BRACKET,SHROUD,LH

11056-7745

$5.44

11056B

BRACKET,OVER FLOW HOSE

11056-7746

$5.44

49133

SHROUD,LH,M.C.M.S.BLACK

49133-0007-60E

Unavailable

49133A

SHROUD,RH,M.C.M.S.BLACK

49133-0008-60E

$1,655.16

49133B

SHROUD,INNER,LH

49133-0015

Unavailable

49133C

SHROUD,INNER,RH

49133-0016

$88.15

59437

STABILIZER,LH,CFRP

59437-0017

$2,001.59

59437A

STABILIZER,RH,CFRP

59437-0018

$2,001.59

92015

NUT,WELL,5MM

92015-1757

$5.58

92075

DAMPER

92075-161

$3.57

92152

COLLAR,6.3X30X16.7

92152-1967

$23.07

92152A

COLLAR,6.5X12X7.8

92152-1974

$19.41

92154

BOLT,SOCKET,5X16

92154-1560

$1.77

92154A

BOLT,SOCKET,6X34

92154-1627

$2.05

92154B

BOLT,SOCKET,5X16

92154-1729

$1.32

92154C

BOLT,SOCKET,5X20

92154-1781

$0.95

92172

SCREW,TAPPING,5X16

92172-0175

$1.32

92172A

SCREW,TAPPING,5X10

92172-0335

$1.57

92200

WASHER,5.2X10X1.0

92200-1820

$0.60

130

BOLT-FLANGED,6X20

130CA0620

$1.22

670

O RING,22MM

670B2022

$3.57
