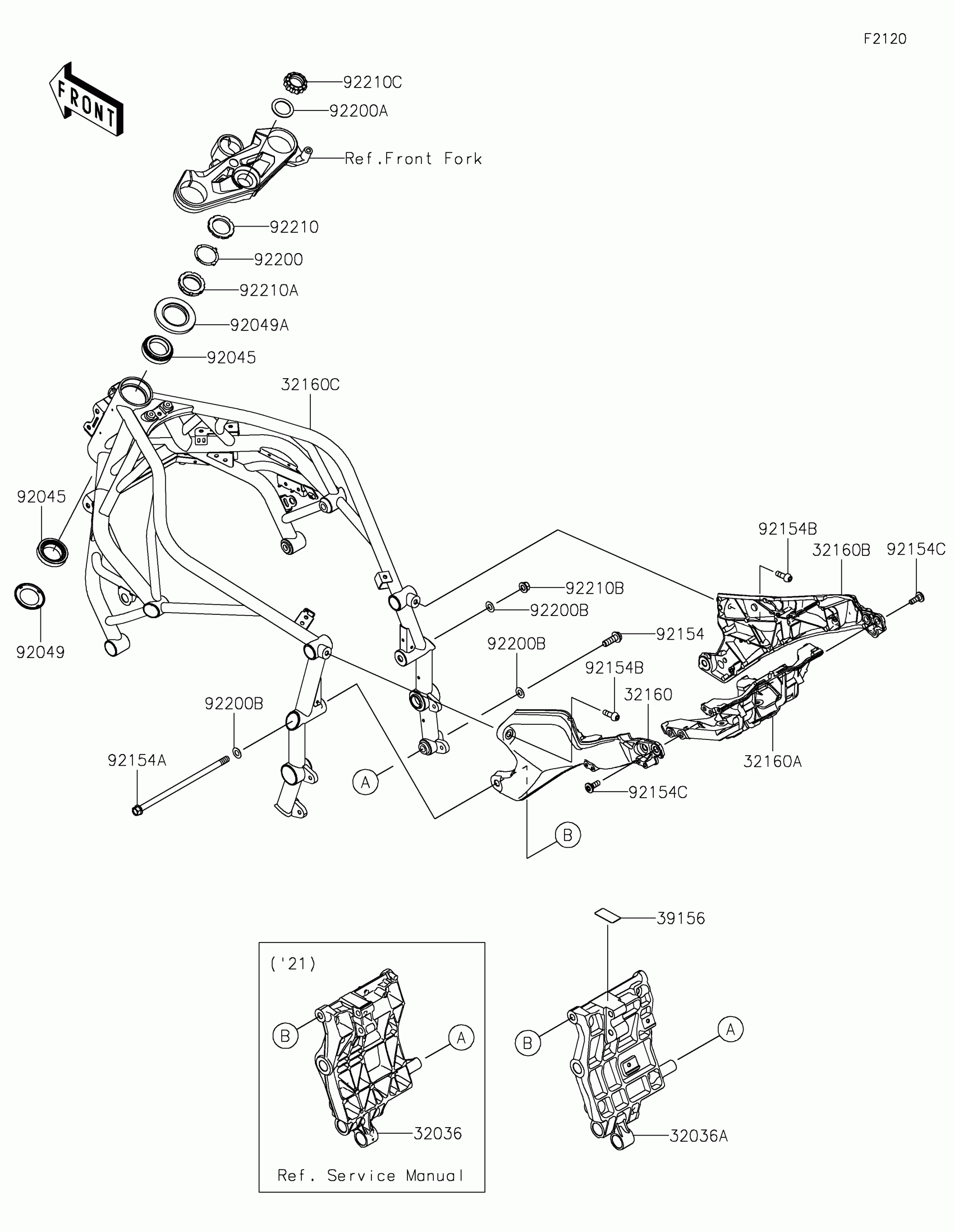

Kawasaki NINJA H2®R ABS Frame Diagram

#

Description
Price

32036A

BRACKET-SWINGARM,M.F.S.BLACK

32036-0406-46R

$573.04

32160

FRAME-COMP,RR,LH,M.F.S.BLACK

32160-0742-46R

$188.81

32160A

FRAME-COMP,RR

32160-0747

$236.62

32160B

FRAME-COMP,RR,RH,M.F.S.BLACK

32160-0887-46R

$198.75

32160C

FRAME-COMP,MAIN,G.B.GREEN

32160-1828-40R

$4,118.06

39156

PAD,22X45

39156-1896

$7.24

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$40.52

92049

SEAL-OIL,DS35X55X4

92049-0022

$13.12

92049A

SEAL-OIL,XMH 43 75 6.4J

92049-1382

$19.81

92154

BOLT,FLANGED,10X30

92154-0543

$7.18

92154A

BOLT,FLANGED,10X223

92154-1556

$32.58

92154B

BOLT,SOCKET,8X25

92154-1557

$14.58

92154C

BOLT,SOCKET,8X23

92154-1901

$2.75

92200

WASHER

92200-0036

$3.81

92200A

WASHER,28.5X40X1.6

92200-0595

$3.68

92200B

WASHER,10.2X20X0.5

92200-1732

$9.14

92210

NUT,35MM

92210-0095

$13.77

92210A

NUT,35MM

92210-0096

$18.51

92210B

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90

92210C

NUT,STEERING,28MM

92210-1416

$172.63
