2025 Kawasaki Ninja H2®R ABS Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2025 Kawasaki Ninja H2®R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

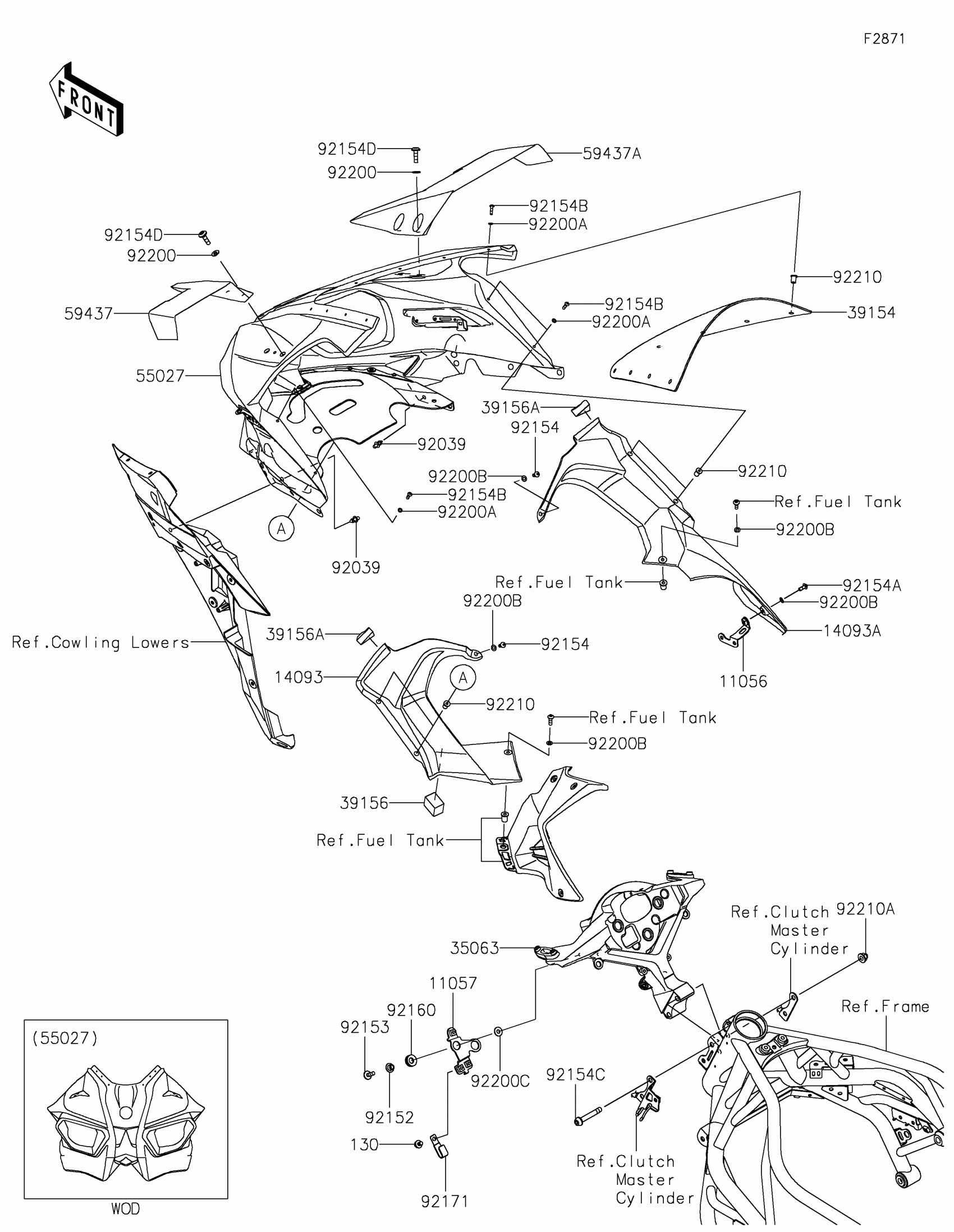

2025 Kawasaki Ninja H2®R ABS Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,INNER COVER

11056-7098

1
Out of stock

11057

BRACKET,GYRO SENSOR

11057-0447

1
Out of stock

14093

COVER,INNER,LH

14093-0315

1
Out of stock

14093A

COVER,INNER,RH

14093-0316

1
Out of stock

35063

STAY,UPP COWL.,M.F.S.BLACK

35063-1373-46R

1
Out of stock

39154

WINDSHIELD

39154-0350

1

$544.53

In stock

39156

PAD,20X30X24

39156-1900

1

$1.80

In stock

39156A

PAD,30X30X15

39156-1903

1

$7.24

In stock

55027

COWLING-ASSY,UPP,CARBON

55027-0038-53F

1
Out of stock

59437

STABILIZER,WING,LH,CFRP

59437-0019

1
Out of stock

59437A

STABILIZER,WING,RH,CFRP

59437-0020

1
Out of stock

92039

RIVET

92039-0060

1
Out of stock

92152

COLLAR,6.5X16X7.3

92152-2336

1
Out of stock

92153

BOLT,6X18

92153-0816

1
Out of stock

92154

BOLT,SOCKET,5X10

92154-1292

1
Out of stock

92154A

BOLT,SOCKET,5X12

92154-1561

1
Out of stock

92154B

BOLT,SOCKET,4X15

92154-1647

1
Out of stock

92154C

BOLT,SOCKET,8X52

92154-1710

1
Out of stock

92154D

BOLT,SOCKET,6X22

92154-1728

1
Out of stock

92160

DAMPER

92160-1278

1
Out of stock

92171

CLAMP

92171-0305

1

$7.12

In stock

92200

WASHER,6.5X14X1

92200-1388

1
Out of stock

92200A

WASHER,4.1X7.4X0.5

92200-1699

1
Out of stock

92200B

WASHER,5.2X10X1.0

92200-1820

1
Out of stock

92200C

WASHER,6.5X16X1.0

92200-3712

1
Out of stock

92210

NUT,4MM

92210-0067

1
Out of stock

92210A

NUT,CAP,8MM

92210-1132

1
Out of stock

130

BOLT-FLANGED,6X8

130BA0608

1

$0.69

In stock
