2016 Kawasaki Ninja H2™ Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2016 Kawasaki Ninja H2™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

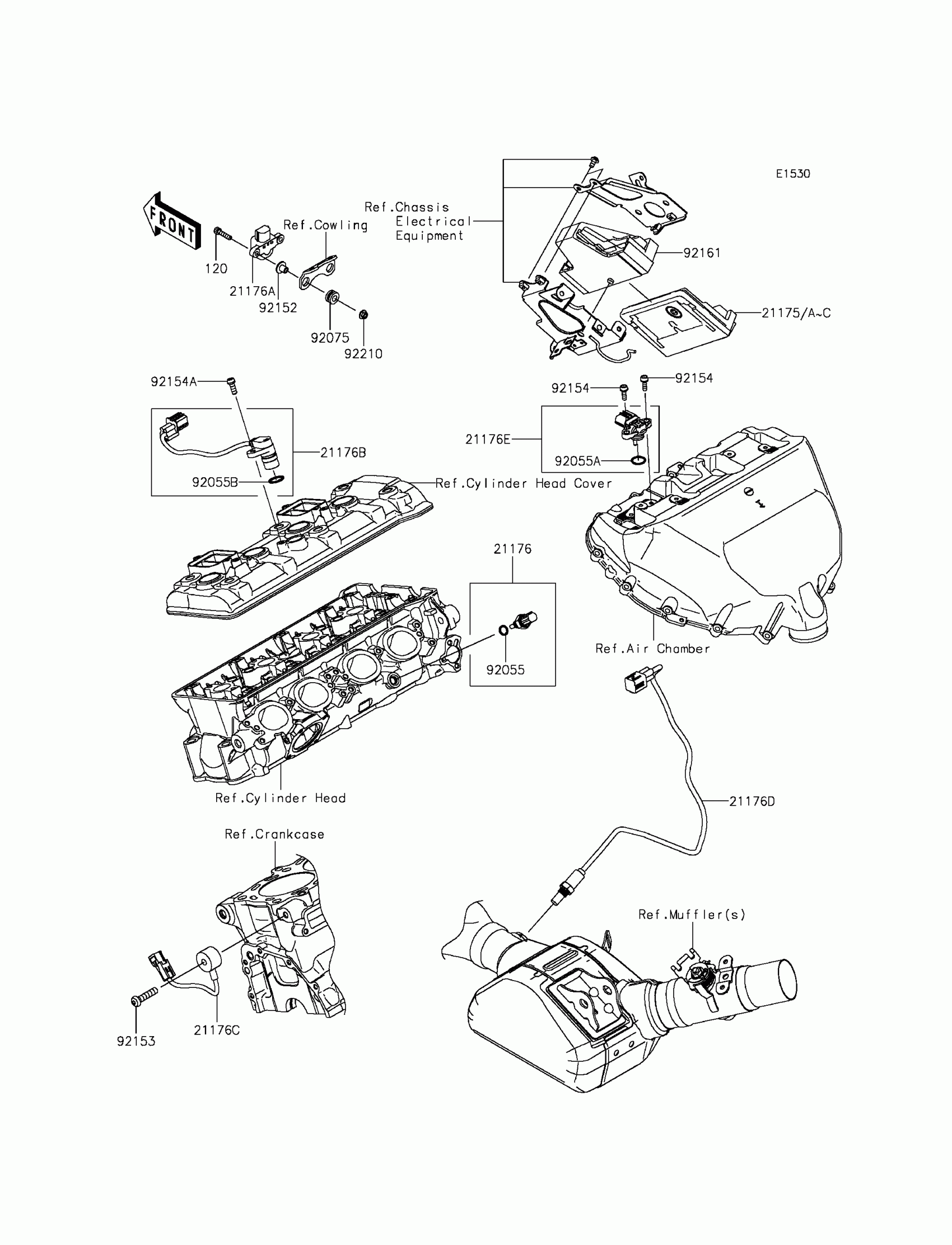

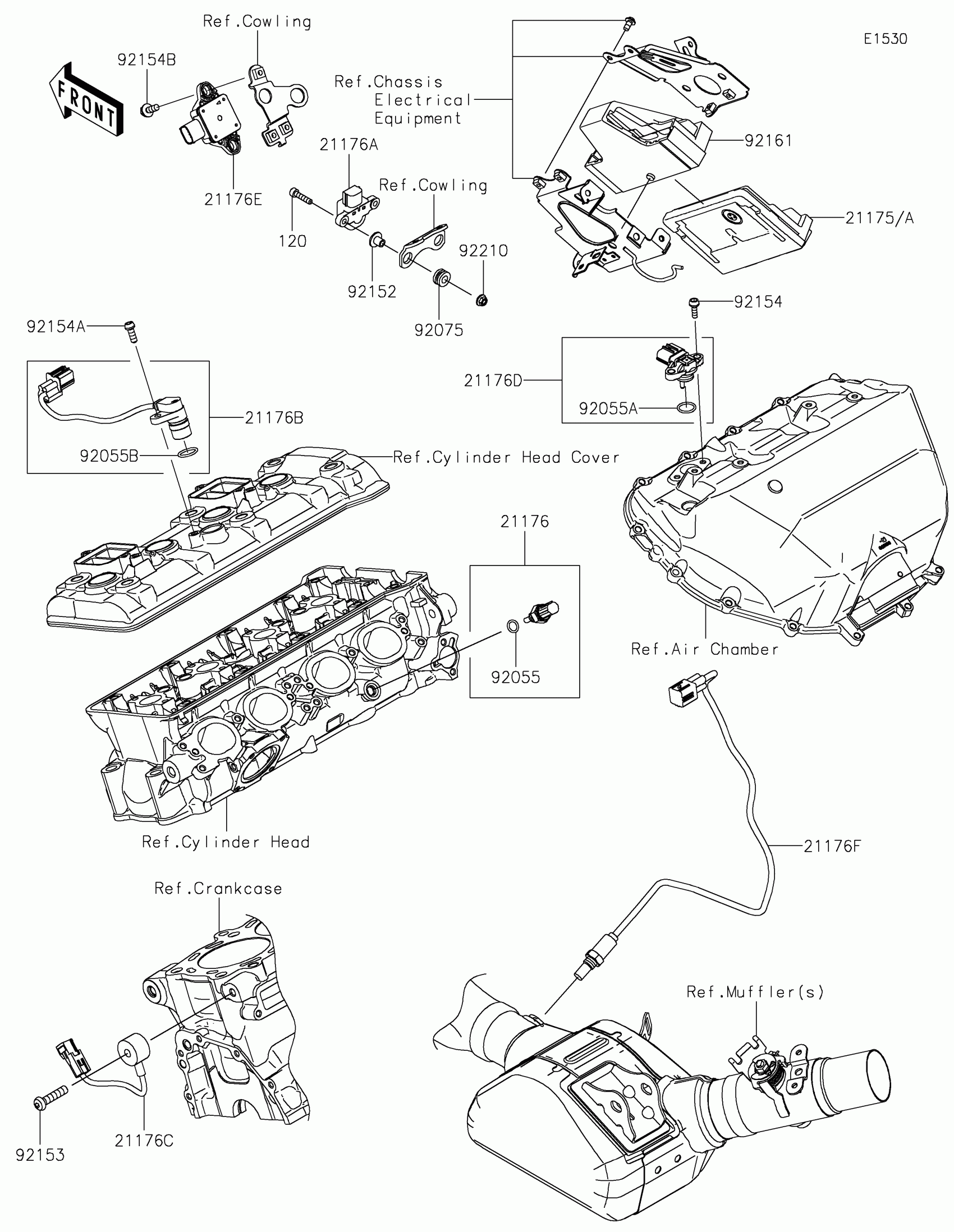

2016 Kawasaki Ninja H2™ Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X22

120R0522

1

$2.10

In stock

21176

SENSOR,WATER TEMP

21176-0009

1

$63.44

In stock

21176A

SENSOR,VEHICLE-DOWN

21176-0026

1

$79.06

In stock

21176B

SENSOR,CAM

21176-0101

1

$127.04

In stock

21176C

SENSOR,KNOCK

21176-0788

1

$136.17

In stock

21176D

SENSOR,OXYGEN

21176-0789

1

$239.98

In stock

21176E

1

$143.30

In stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92055A

RING-O

92055-0842

1

$5.76

In stock

92055B

RING-O

92055-1639

1

$2.49

In stock

92075

DAMPER

92075-1912

1

$5.07

In stock

92152

COLLAR

92152-1969

1
Out of stock

92153

BOLT,SOCKET,8X35

92153-0419

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-1449

1

$1.10

In stock

92154A

BOLT,SOCKET,6X16

92154-1454

1

$1.10

In stock

92161

DAMPER,ECU

92161-1719

1

$30.18

In stock

92210

NUT,FLANGED,5MM

92210-0950

1
Out of stock

21175A

CONTROL UNIT-ELECTRONIC

21175-1168

1
Out of stock

21175C

1

$1,248.87

In stock
