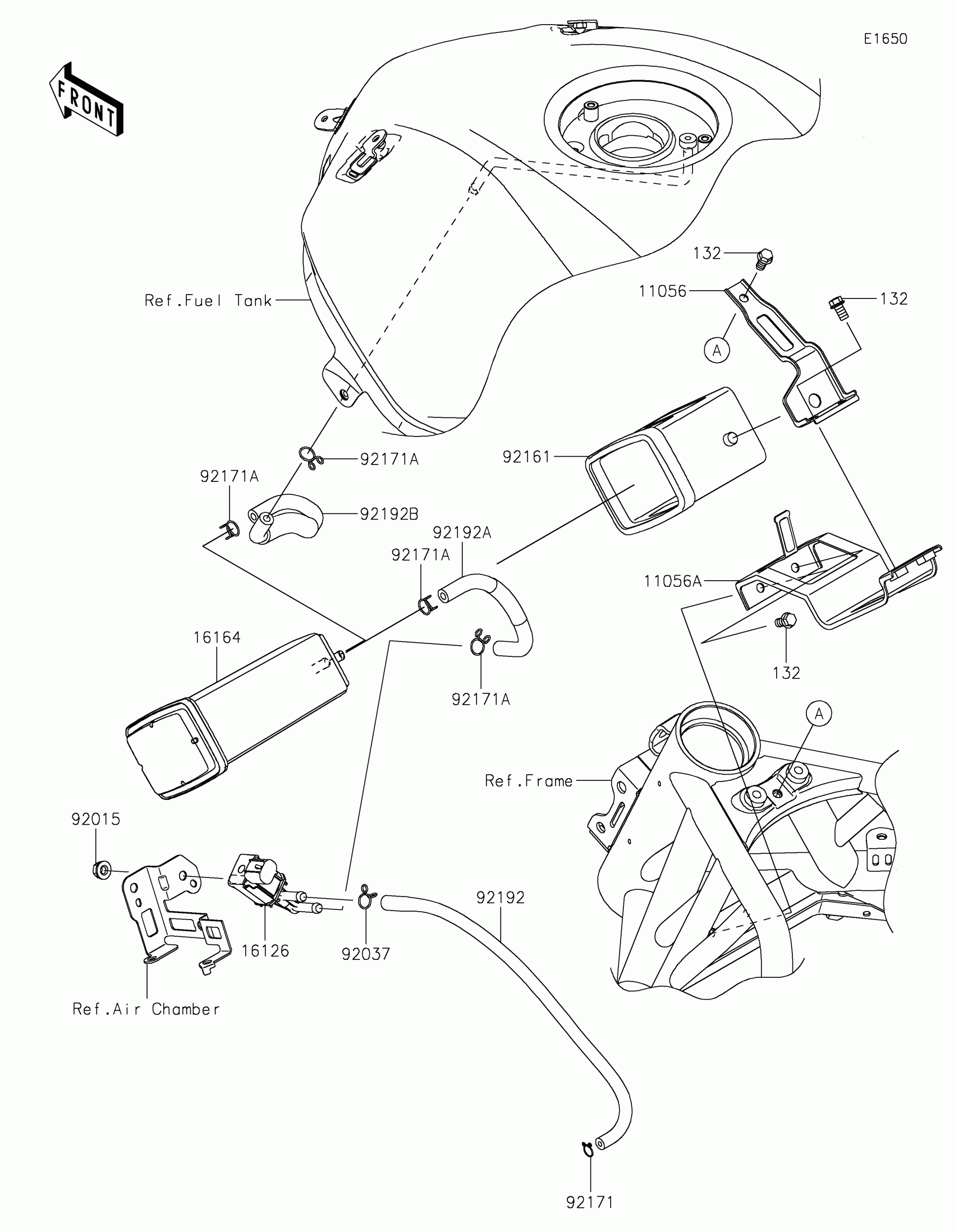

Kawasaki NINJA H2™ Fuel Evaporative System(CA) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.27

11056

BRACKET,CANISTER,UPP

11056-4454

$17.73

11056A

BRACKET,CANISTER,LWR

11056-4455

$41.68

16126

VALVE,PCV

16126-0731

$109.25

16164

CANISTER

16164-0012

$152.89

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92161

DAMPER,CANISTER

92161-1715

$16.78

92171

CLAMP

92171-0573

$1.20

92171A

CLAMP

92171-0576

$3.81

92171B

CLAMP

92171-0718

$1.81

92192C

TUBE,THROTTLE-VALVE

92192-1670

$49.83

92192D

TUBE,CANISTER-VALVE

92192-1671

$41.85

92192E

TUBE,CANISTER-TANK

92192-1672

$41.85
