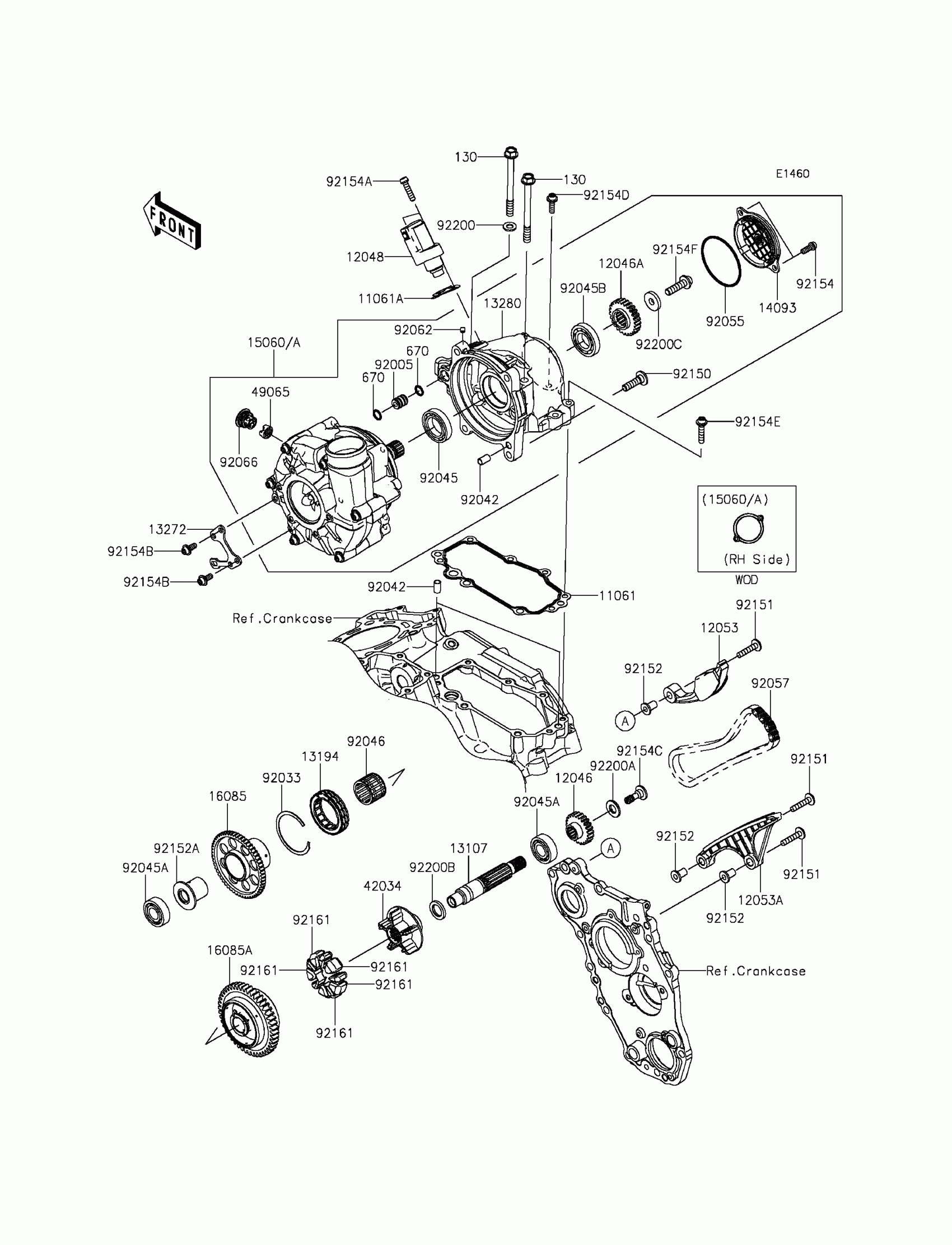

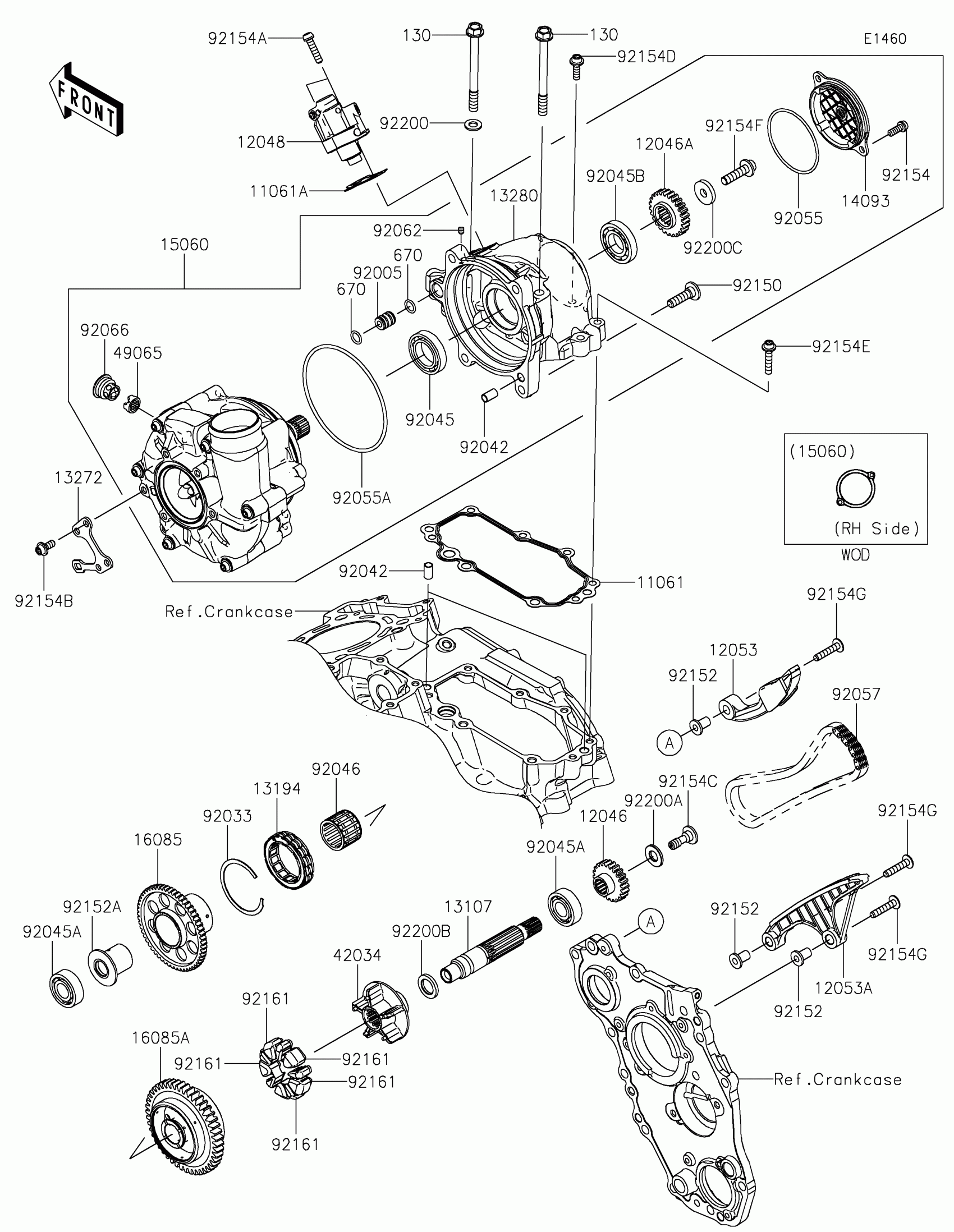

Kawasaki NINJA H2™ Super Charger Diagram

#

Description
Price

11061

GASKET,HOLDER

11061-0948

$14.03

11061A

GASKET,TENSIONER

11061-0959

$3.03

12046

SPROCKET,DRIVE,22T

12046-0581

$70.22

12046A

SPROCKET,DRIVEN,25T

12046-0584

$70.42

12048

TENSIONER-ASSY

12048-0094

$246.88

12053

GUIDE-CHAIN,UPP

12053-0219

$103.65

12053A

GUIDE-CHAIN,LWR

12053-0220

$30.19

13107

SHAFT

13107-0821

$112.55

13194

CLUTCH-ONEWAY

13194-0017

$121.97

13272

PLATE

13272-1849

$5.24

13280

HOLDER

13280-0848

$373.73

14093

COVER

14093-0131

$136.02

15060A

COMPRESSOR-ASSY

15060-0003

$4,564.00

16085

GEAR,STARTER,56T

16085-0633

$196.85

16085A

GEAR,BALANCER,46T

16085-0634

$274.09

42034

COUPLING

42034-0741

$142.34

49065

FILTER-OIL

49065-0041

$44.54

92005

FITTING,OIL LINE

92005-0769

$21.34

92033

RING-SNAP

92033-3731

$5.37

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92045

BEARING-BALL,#6905

92045-036

$22.57

92045A

BEARING-BALL,6202ZC3

92045-0785

$11.10

92045B

BEARING-BALL

92045-1404

$18.76

92046

BEARING-NEEDLE,22X32X24

92046-0622

$31.15

92055

RING-O,2.4X62.6

92055-0790

$3.53

92057

CHAIN,98XRH2020-78N2

92057-0633

$94.92

92062

NOZZLE

92062-0004

$4.00

92066

PLUG

92066-0821

$119.95

92150

BOLT,8X30

92150-1728

$3.57

92151

BOLT,SOCKET,6X30

92151-1605

$1.68

92152

COLLAR

92152-1939

$7.69

92152A

COLLAR

92152-1993

$55.65

92154

BOLT,SOCKET,6X16

92154-1454

$1.10

92154A

BOLT,SOCKET,6X25

92154-1458

$1.88

92154B

BOLT,SOCKET,6X14

92154-1460

$2.05

92154C

BOLT

92154-1476

$19.86

92154D

BOLT,SOCKET,6X20

92154-1667

$2.05

92154E

BOLT,SOCKET,6X30

92154-1668

$1.88

92154F

BOLT,SOCKET,8X30

92154-1679

$15.36

130

BOLT-FLANGED,8X90

130CC0890

$10.25

670

O RING,10MM

670D1510

$3.57

92161

DAMPER

92161-0945

$25.00

92200

WASHER,8.2X16X1.6

92200-0047

$2.03

92200A

WASHER,10.3X22X2.5

92200-0958

$11.27

92200B

WASHER,15.2X24X3

92200-1799

$13.42

92200C

WASHER,8.5X24X4.0

92200-3811

$3.49
