2025 Kawasaki Ninja H2® ABS Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

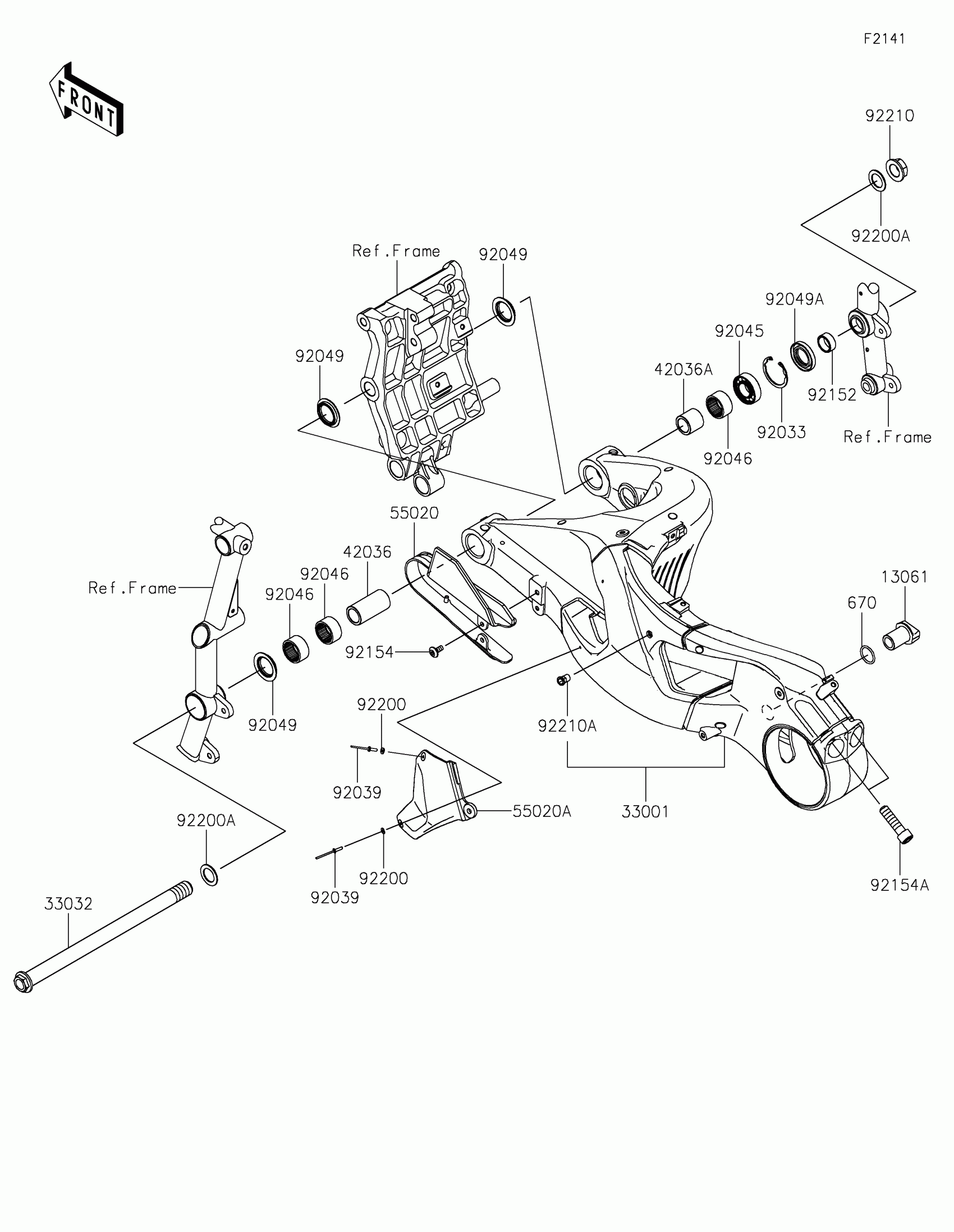

2025 Kawasaki Ninja H2® ABS Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13061

BOSS,CALIPER HOLDER

13061-0744

1
Out of stock

33001

ARM-COMP-SWING,M.F.S.BLACK

33001-5186-46R

1
Out of stock

33032

SHAFT-SWING ARM,20X313

33032-0049

1
Out of stock

42036

SLEEVE,20.1X28X56.5

42036-0757

1
Out of stock

42036A

SLEEVE,20.1X28X25.7

42036-0762

1
Out of stock

55020

GUARD,CHAIN SLIDER

55020-1841

1
Out of stock

55020A

GUARD,SWING ARM,HEEL

55020-1853

1
Out of stock

92033

RING-SNAP,42MM

92033-1041

1
Out of stock

92039

RIVET

92039-1231

1
Out of stock

92045

BEARING-BALL,6004UL11

92045-0017

1
Out of stock

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

1
Out of stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92049A

SEAL-OIL,MHSA25X42X6

92049-1314

1
Out of stock

92152

COLLAR,20.2X25X10.5

92152-1948

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-1025

1
Out of stock

92154A

BOLT,SOCKET,12X45

92154-1552

1
Out of stock

92200

WASHER,3.2X8X1

92200-1677

1
Out of stock

92200A

WASHER,20.5X31X1.5

92200-1791

1
Out of stock

92210

NUT,FLANGED,20MM

92210-0320

1
Out of stock

92210A

NUT,POP,6MM,L=15

92210-1397

1
Out of stock

670

O RING,22MM

670B2022

1
Out of stock
