2025 Kawasaki Ninja H2® ABS Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

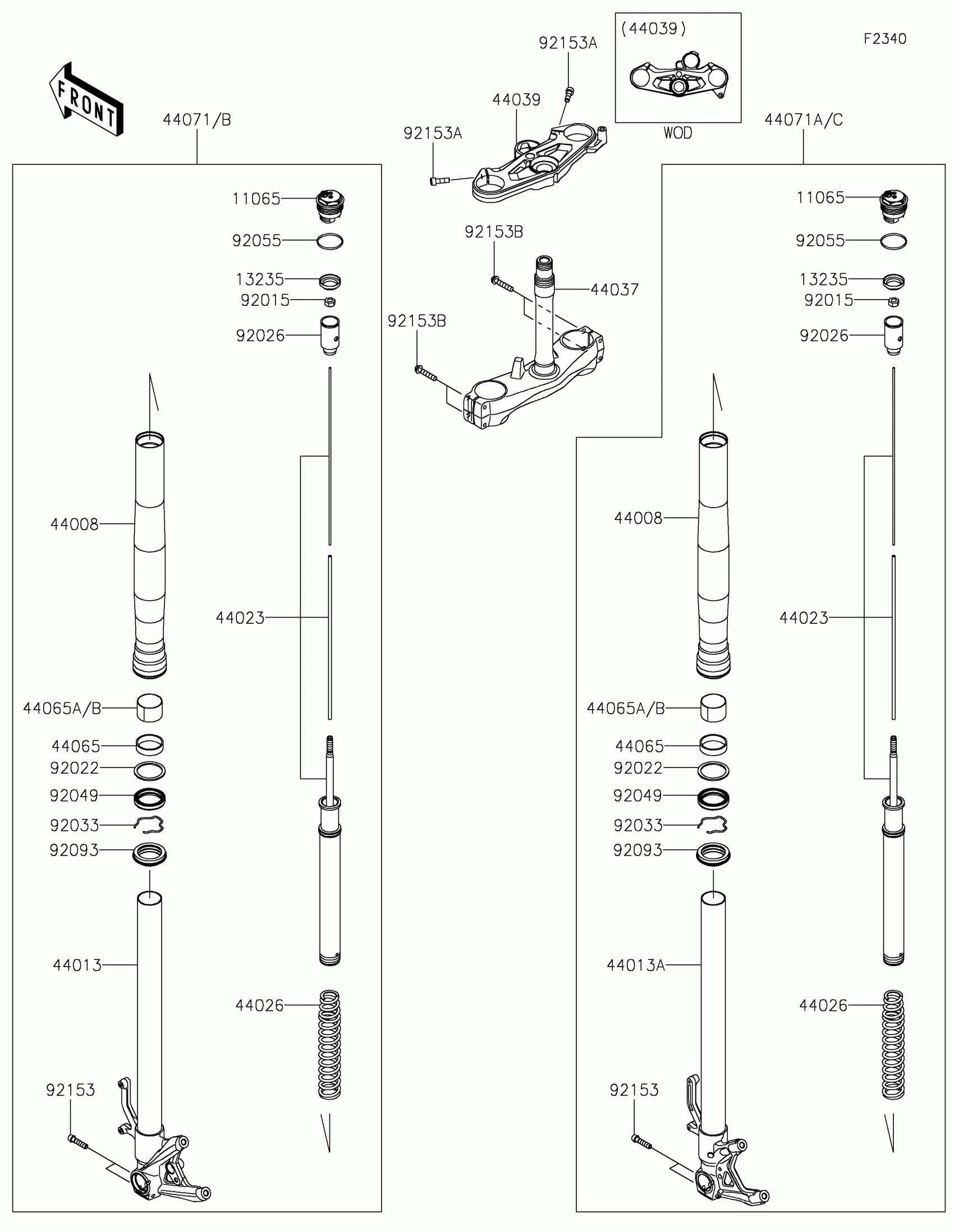

2025 Kawasaki Ninja H2® ABS Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,G.B.GREEN

11065-0924-50Y

1
Out of stock

13235

GUIDE-COMP

13235-0011

1
Out of stock

44008

PIPE-FORK OUTER,GRAY

44008-0079-11G

1
Out of stock

44013

PIPE-FORK INNER,LH

44013-0245

1
Out of stock

44013A

PIPE-FORK INNER,RH

44013-0246

1
Out of stock

44023

CYLINDER-SET-FORK

44023-0132

1
Out of stock

44026

SPRING-FRONT FORK

44026-0211

1
Out of stock

44037

HOLDER-FORK UNDER

44037-0153

1
Out of stock

44039

HOLDER-FORK UPPER,M.F.S.BLACK

44039-0149-46R

1
Out of stock

44065

BUSHING-FRONT FORK,SLIDE

44065-0056

1
Out of stock

44065B

BUSHING-FRONT FORK

44065-0079

1
Out of stock

44071B

DAMPER-ASSY,FORK,LH,GRAY

44071-1664-50K

1
Out of stock

44071C

DAMPER-ASSY,FORK,RH,GRAY

44071-1665-50K

1
Out of stock

92015

NUT

92015-1795

1
Out of stock

92022

WASHER

92022-1299

1
Out of stock

92026

SPACER

92026-0805

1
Out of stock

92033

RING-SNAP

92033-1077

1
Out of stock

92049

SEAL-OIL

92049-0072

1
Out of stock

92055

RING-O

92055-0145

1
Out of stock

92093

SEAL,DUST

92093-0058

1
Out of stock

92153

BOLT,SOCKET,8X35

92153-1472

1
Out of stock

92153A

BOLT,SOCKET,8X25

92153-1625

1
Out of stock

92153B

BOLT,FLANGED,8X40

92153-1884

1
Out of stock
