2025 Kawasaki Ninja H2® ABS Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

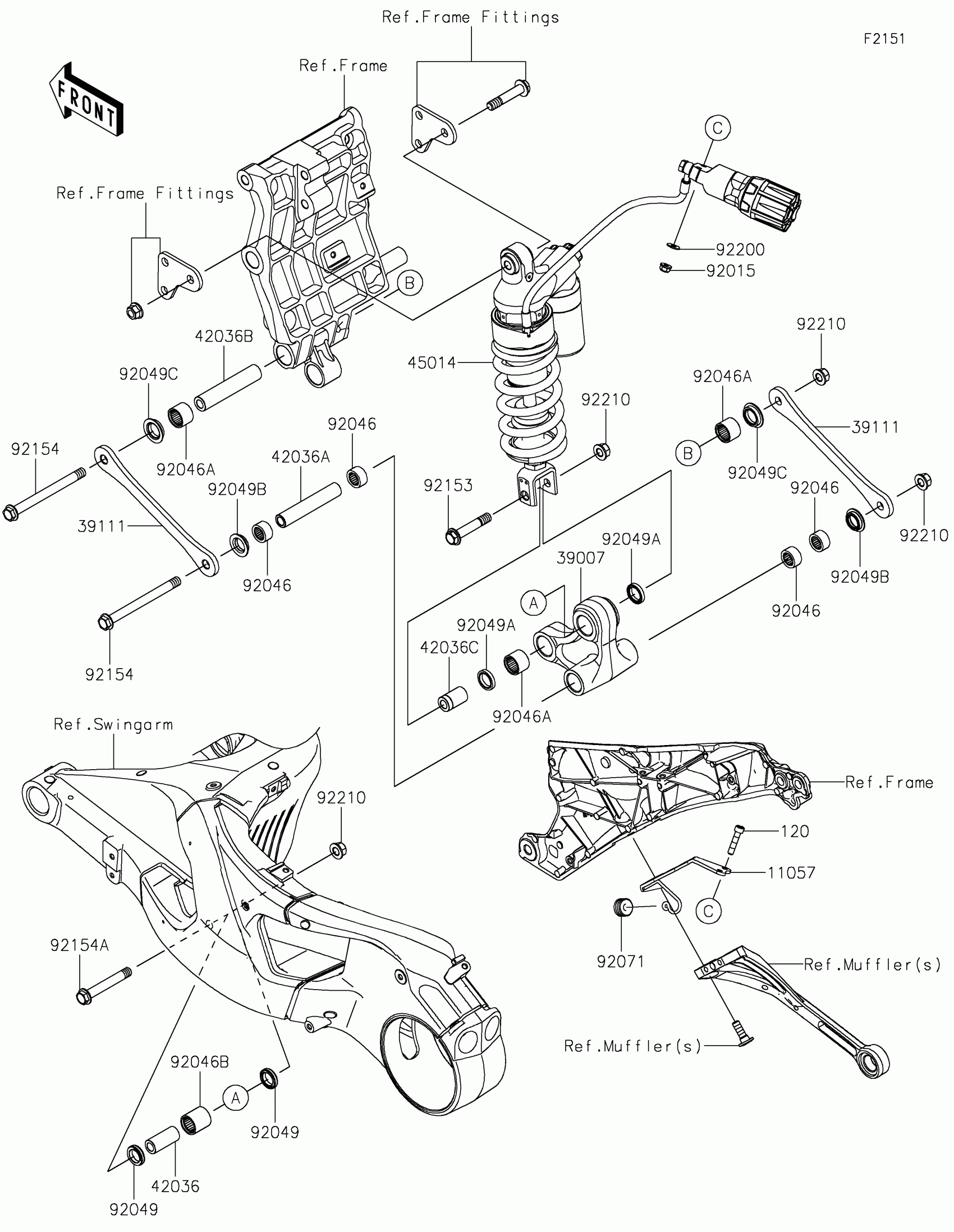

2025 Kawasaki Ninja H2® ABS Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-0669

1

$24.78

In stock

39007

ARM-SUSP

39007-0406

1

$251.49

In stock

39111

ROD-TIE,SUSPENSION

39111-0348

1

$67.74

In stock

42036

SLEEVE,10.1X17X39

42036-0075

1

$13.61

In stock

42036A

SLEEVE,10.1X16X90.5

42036-0763

1

$43.89

In stock

42036B

SLEEVE,10.1X18X90.5

42036-0828

1

$29.34

In stock

42036C

SLEEVE,10.1X18X30

42036-1258

1

$11.81

In stock

45014

1

$2,659.50

In stock

92015

1

$3.72

In stock

92046

BEARING-NEEDLE,16BM2212

92046-1192

1
Out of stock

92046A

BEARING-NEEDLE,SFYZM182417

92046-1272

1
Out of stock

92046B

BEARING-NEEDLE,SFYZM172425

92046-1273

1
Out of stock

92049

SEAL-OIL,SD0 17 24 5 NS

92049-0158

1
Out of stock

92049A

SEAL-OIL,MHA18244

92049-1225

1
Out of stock

92049B

SEAL-OIL,SD03 16 22 5.7

92049-1466

1
Out of stock

92049C

SEAL-OIL,KCR MF018N1

92049-1493

1
Out of stock

92071

GROMMET

92071-0012

1

$3.62

In stock

92153

BOLT,FLANGED,10X55

92153-1546

1
Out of stock

92154

BOLT,FLANGED,10X114

92154-1553

1

$14.36

In stock

92154A

BOLT,FLANGED,10X70

92154-1695

1

$11.27

In stock

92200

WASHER,6.2X15X1.2

92200-1762

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

120

BOLT-SOCKET,6X28

120CB0628

1

$1.81

In stock
