2025 Kawasaki Ninja H2® ABS Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

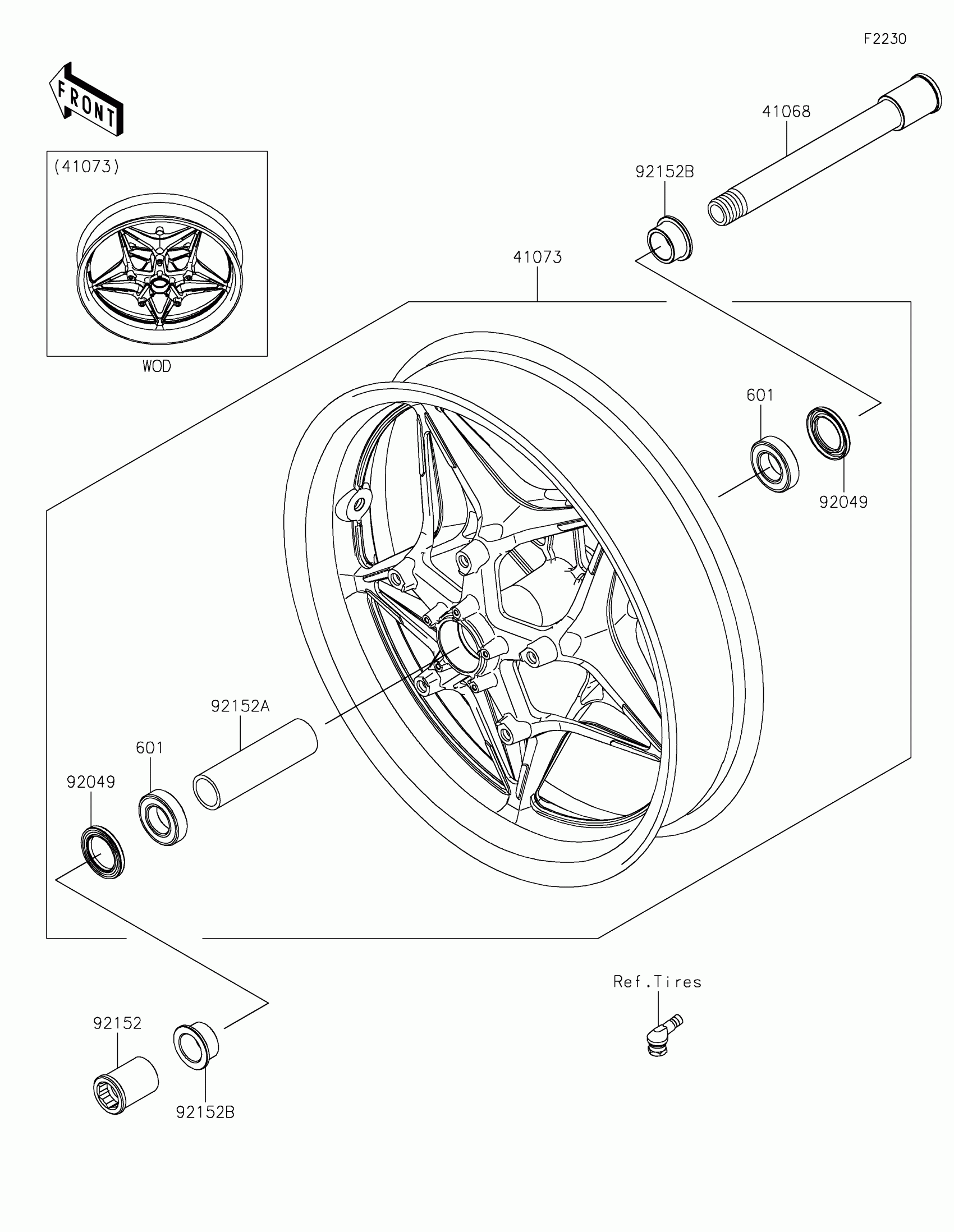

2025 Kawasaki Ninja H2® ABS Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,FR,25X205

41068-0594

1
Out of stock

41073

WHEEL-ASSY,FR,F.BLACK

41073-0754-51H

1
Out of stock

92049

SEAL-OIL,BJN-C2 32X47X5

92049-0050

1
Out of stock

92152

COLLAR,FR AXLE,LH,L=44.5

92152-0240

1
Out of stock

92152A

COLLAR,FR HUB,L=115

92152-0616

1
Out of stock

92152B

COLLAR,25X40X18

92152-2718

1
Out of stock

601

BEARING-BALL,#6005UU

601B6005UU

1
Out of stock
