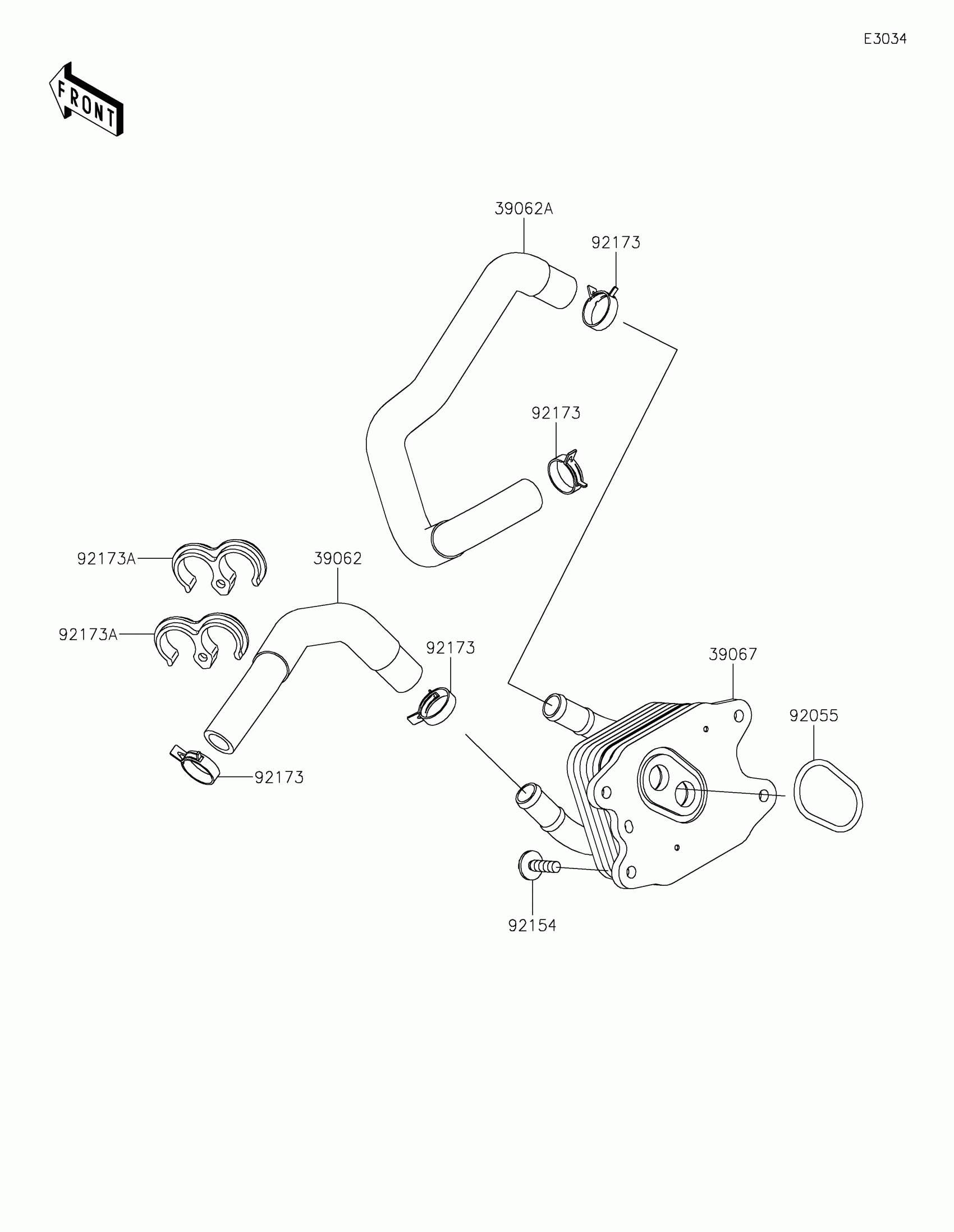

2025 Kawasaki Ninja H2® ABS OIL Cooler Diagram

← All diagrams

Find the part on the OIL Cooler diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ninja H2® ABS OIL Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39062

1

$25.00

In stock

39062A

HOSE-COOLING,W/PUMP-OIL COOLER

39062-0812

1
Out of stock

39067

COOLER-OIL

39067-0017

1

$432.75

In stock

92055

RING-O,39.4X3.1

92055-1618

1
Out of stock

92154

BOLT,FLANGED,6X22

92154-0403

1
Out of stock

92173

CLAMP,20.2MM

92173-1361

1
Out of stock

92173A

CLAMP,COOLING HOSE

92173-1366

1
Out of stock
