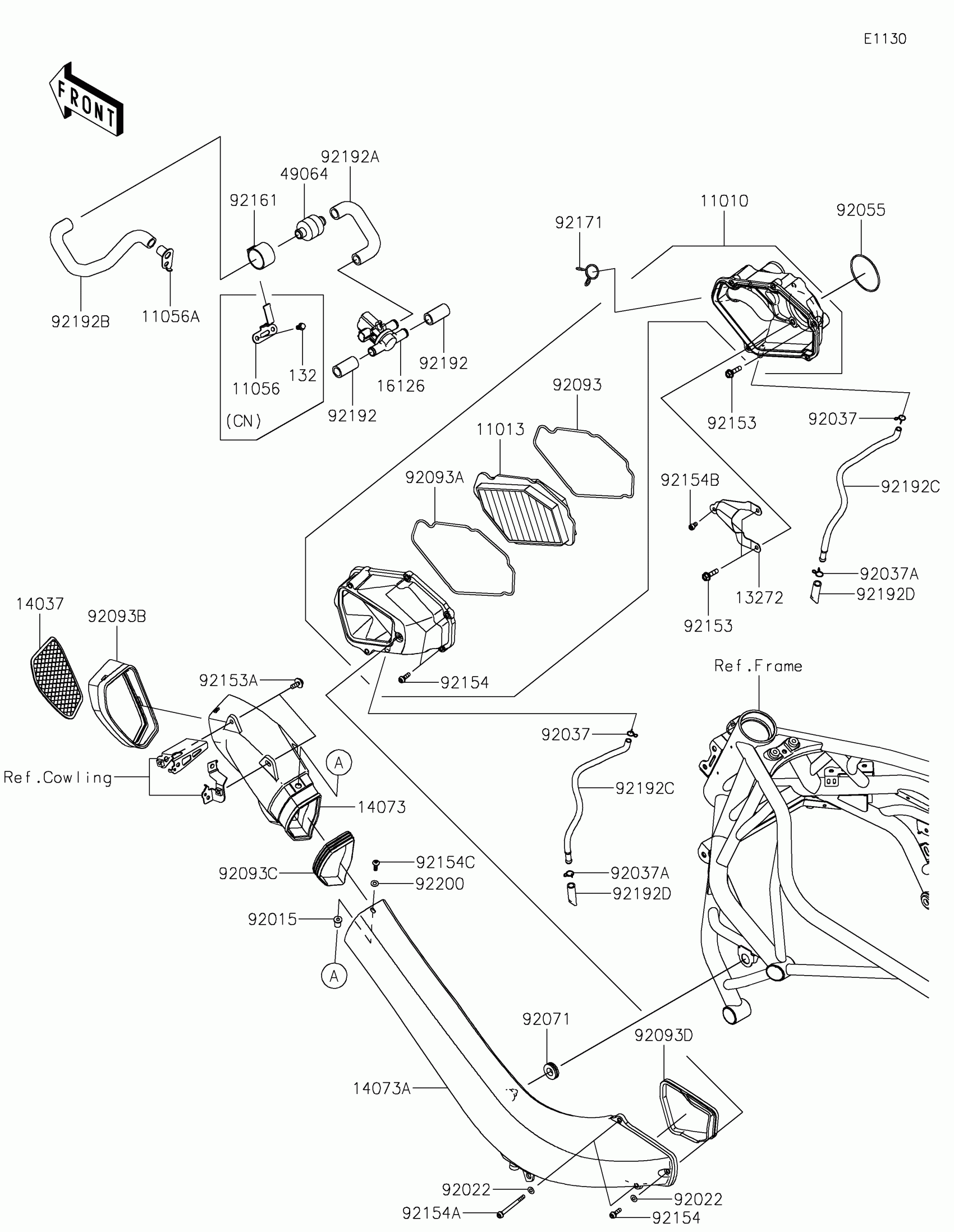

Kawasaki NINJA H2® ABS Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-0898

$233.19

11013

ELEMENT-AIR FILTER

11013-0776

$33.47

11056

BRACKET,FILTER

11056-4451

Unavailable

11056A

BRACKET,2ND AIR TUBE

11056-4479

$20.58

13272

PLATE,BLOW OFF

13272-1850

$15.81

14037

SCREEN

14037-0772

$58.94

14073

DUCT,RAM AIR,FR

14073-0869

$72.46

14073A

DUCT,RAM AIR,RR,M.S.BLACK

14073-0870-660

$829.26

16126

VALVE,AIR SWITCHING

16126-0745

$193.92

49064

FILTER-AIR

49064-0010

$19.97

92015

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,5.1X10X1.0

92022-1977

$2.76

92037

CLAMP

92037-1712

$3.81

92037A

CLAMP,TUBE

92037-1972

$3.29

92055

RING-O,60.5X2

92055-0836

$13.25

92071

GROMMET

92071-056

$3.25

92093

SEAL,ELEMENT

92093-0614

$9.53

92093A

SEAL,CASE

92093-0615

$7.41

92093B

SEAL,FR

92093-0618

$29.62

92093C

SEAL,RR

92093-0619

$21.12

92093D

SEAL

92093-0620

$24.53

92153

BOLT,FLANGED,6X22

92153-1566

$1.81

92153A

BOLT,UPSET-WP,6X16

92153-1587

$1.53

92154

BOLT,SOCKET,5X18

92154-1450

$1.10

92154A

BOLT,SOCKET,5X18

92154-1452

$1.95

92154B

BOLT,SOCKET,5X10

92154-1642

$1.32

92154C

BOLT,SOCKET,5X16

92154-1729

$1.32

92161

DAMPER,FILTER

92161-1713

$10.58

92171

CLAMP

92171-0391

$3.71

92192

TUBE,12X17.6X38

92192-0887

$15.32

92192A

TUBE,VALVE-FILTER

92192-1413

$8.85

92192B

TUBE,FILTER INLET

92192-1414

$14.73

92192C

TUBE,DRAIN L=285

92192-1461

$14.97

92192D

TUBE,DRAIN,L=40

92192-1979

$12.39

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.20

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.27
