2025 Kawasaki Ninja H2® ABS Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2025 Kawasaki Ninja H2® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

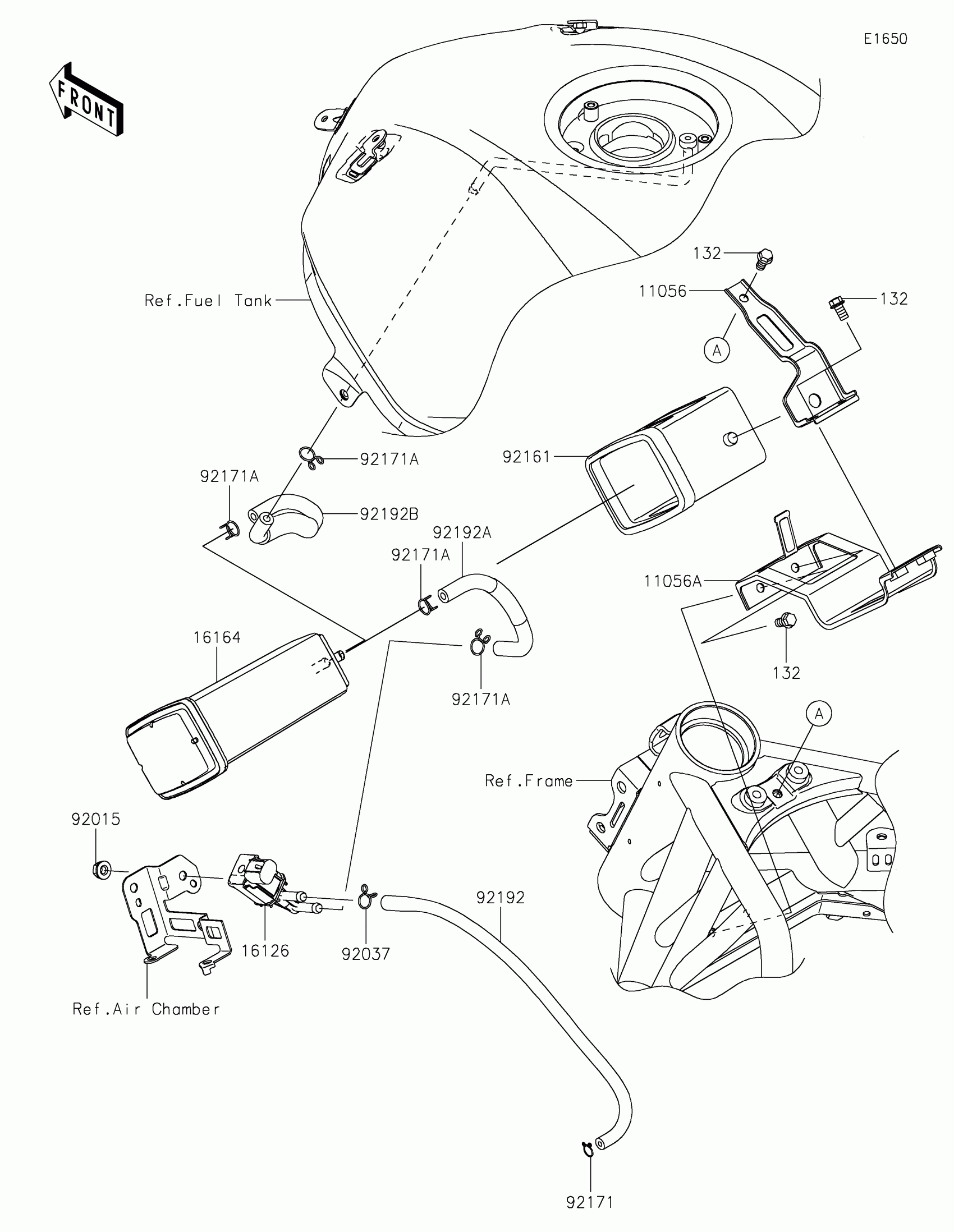

2025 Kawasaki Ninja H2® ABS Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,CANISTER,UPP

11056-4454

1
Out of stock

11056A

BRACKET,CANISTER,LWR

11056-4455

1
Out of stock

16126

VALVE,PCV

16126-0731

1
Out of stock

16164

CANISTER

16164-0012

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92037

CLAMP

92037-1712

1
Out of stock

92161

DAMPER,CANISTER

92161-1715

1
Out of stock

92171

CLAMP

92171-0573

1
Out of stock

92171A

CLAMP

92171-0718

1
Out of stock

92192

TUBE,THROTTLE-VALVE

92192-1670

1
Out of stock

92192A

TUBE,CANISTER-VALVE

92192-1671

1
Out of stock

92192B

TUBE,CANISTER-TANK

92192-1672

1
Out of stock

132

BOLT-FLANGED-SMALL,6X10

132BA0610

1
Out of stock
