1986 Kawasaki Ninja® Fuel Tank Diagram

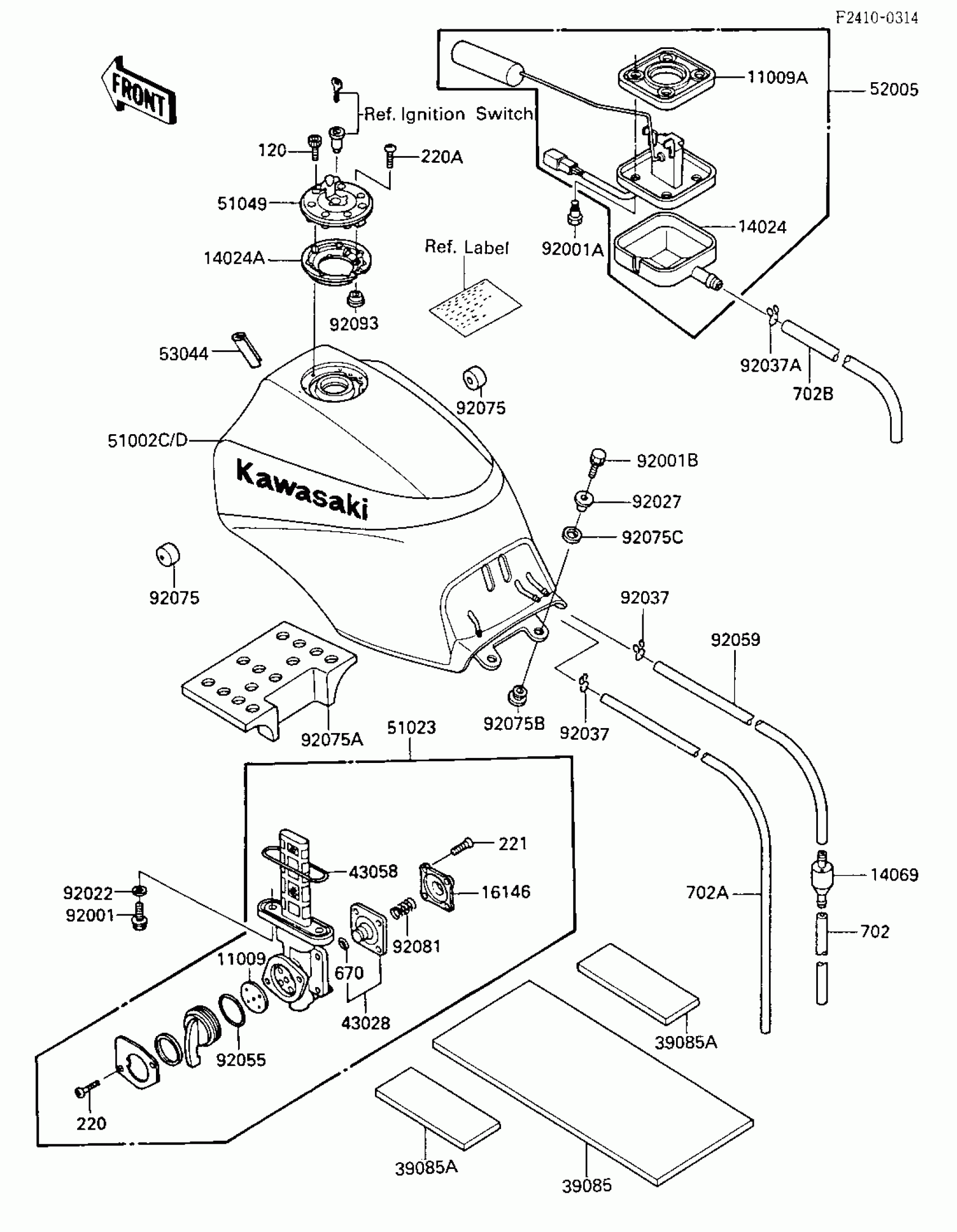

Find the part on the Fuel Tank diagram for your 1986 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
11009A
GASKET,FUEL GAUGE
11009-1656
1
Out of stock
14024
COVER,FUEL GAUGE
14025-1536
1
Out of stock
51002D
TANK-COMP-FUEL,F.RED
51002-5123-P9
1
Out of stock
52005
GAUGE,FUEL
52005-1058
1
Out of stock
92001A
BOLT,FUEL GAUGE
92001-1705
1
Out of stock
92022
WASHER-PLAIN
92022-183
1
Out of stock
92075A
DAMPER,FUEL TANK
92075-1672
1
Out of stock
120
BOLT-SOCKET,5X12
120S0512
1
Out of stock
220A
SCREW-PAN-CROSS
220C0508
1
Out of stock
221
SCREW-CSK-CROS,4X14
221B0414
1
Out of stock
