1985 Kawasaki Ninja® Canister Diagram

← All diagrams

Find the part on the Canister diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

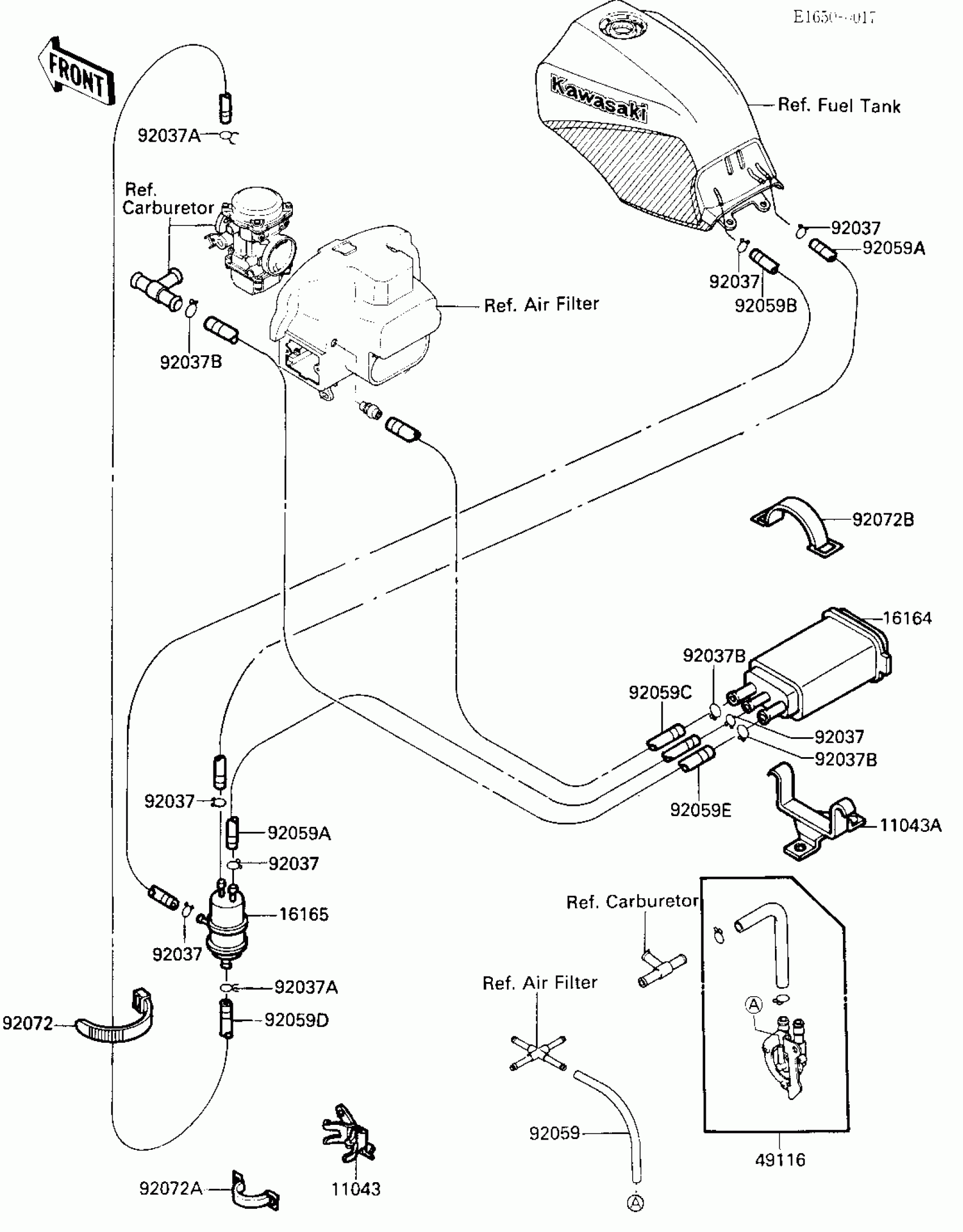

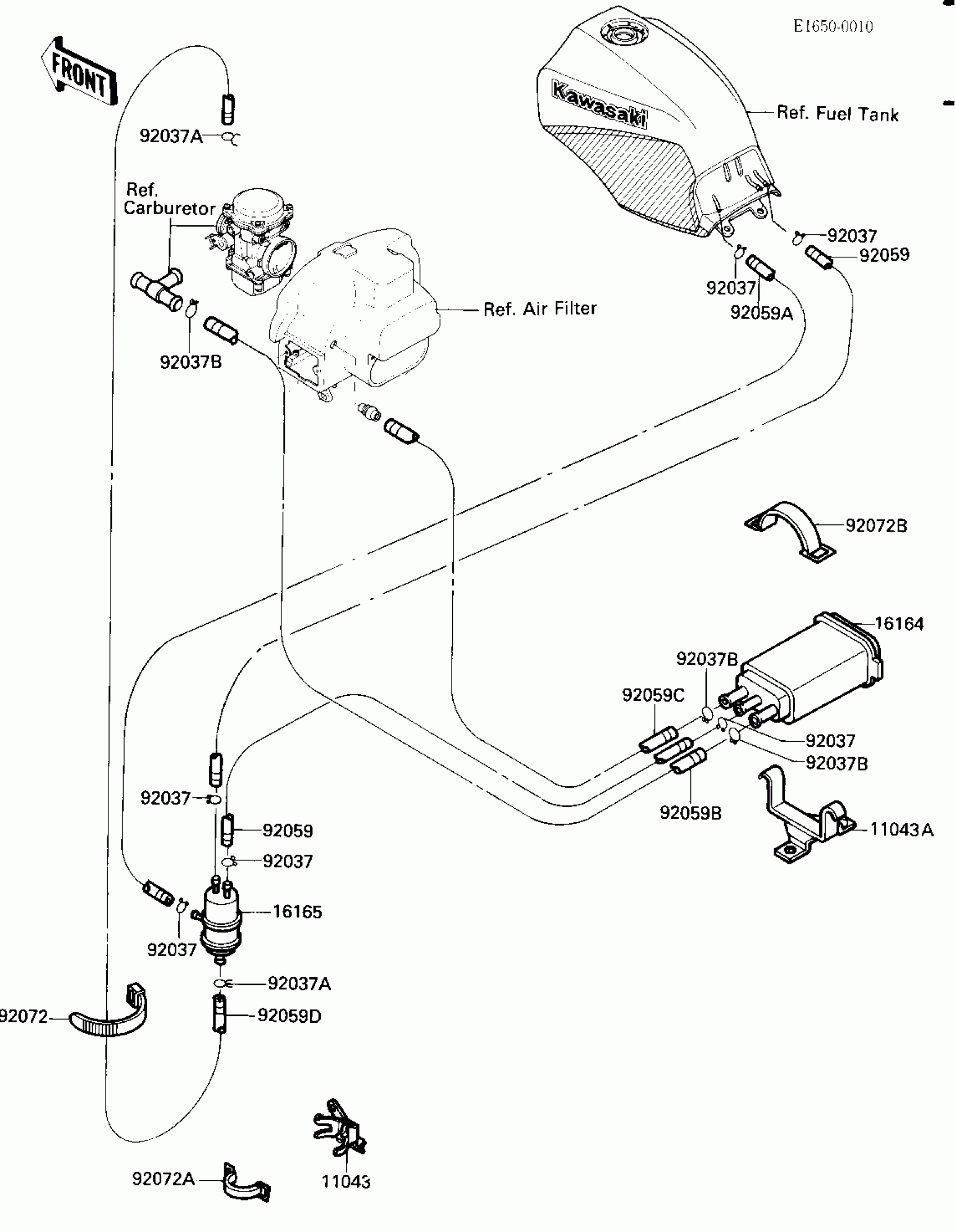

1985 Kawasaki Ninja® Canister Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11043

BRACKET,SEPARATOR

11043-1653

1
Out of stock

11043A

BRACKET,CANISTER

11043-1831

1
Out of stock

16164

CANISTER

16164-1052

1

$134.03

In stock

16165

SEPARATOR

16165-1001

1

$81.73

In stock

92037

CLAMP,TUBE

92037-010

1

$3.12

In stock

92037A

CLAMP,TUBE

92037-072

1

$5.74

In stock

92037B

CLAMP-HOSE

92037-1104

1

$1.27

In stock

92059

TUBE,5X8X580

92059-1468

1
Out of stock

92059A

TUBE,5X8X340

92059-1469

1
Out of stock

92059B

TUBE,7X12X900

92059-1470

1

$41.92

In stock

92059C

TUBE,7X12X800

92059-1478

1

$41.92

In stock

92059D

TUBE

92059-1488

1

$15.01

In stock

92072

BAND,L=149

92072-031

1

$3.97

In stock

92072A

BAND,L=50

92072-066

1

$12.72

In stock

92072B

BAND,L=100

92072-071

1

$9.24

In stock
